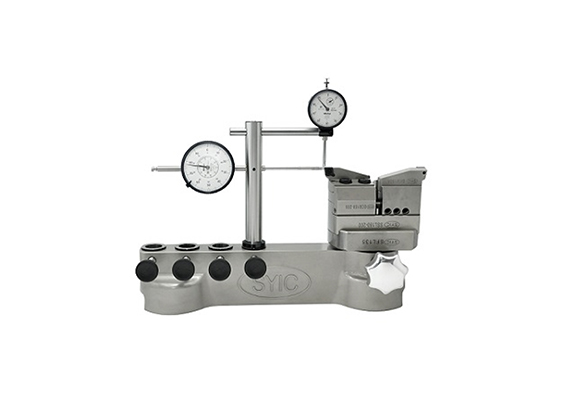

Simplified Tool Presetter for SRW &SMB Boring Head
Product Name : Simplified Tool Presetter for SRW &SMB Boring Head
Product Description

Easy Operation

  • Used for SRW & SMB boring heads for large boring diameter.
  • Make quick adjustment for boring dimensions.
  • Capable of measuring boring range from Ø100mm ~ Ø830mm.
  • Each unit of dial indicator: Radial 0.02mm and Axial 0.01mm.
proimages/Products/Boring_head/Simplified_Tool_Presetter/Simplified_Tool_Presetter-feature_picture.jpg
series:

SIMPLIFIED TOOL PRESETTER FOR SRW & SMB BORING HEAD

proimages/Products/Boring_head/Simplified_Tool_Presetter/Simplified_Tool_Presetter_figure.jpg

MODEL NO.TYPELDdMEASURING RANGEMCK NO.WEIGHT
(KGS)
410.550 SET 410-550 410 55 55 φ100 ~ φ550 MCK7 10.4
410.830 SET 410-830 610 55 55 φ550 ~ φ830 MCK7 12.8
