Super Micron Exchangeable Finish Boring Head(for large diameter boring)

Super Micron Exchangeable Finish Boring Head<span class='nor'>(for large diameter boring)</span>
Product Name : Super Micron Exchangeable Finish Boring Head(for large diameter boring)
Product Description

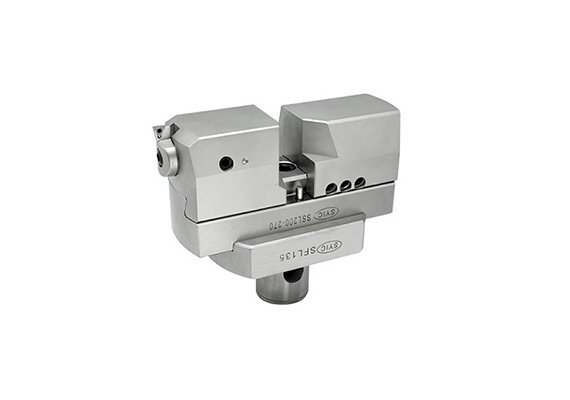

Large Diameter Boring Head

  • Boring range: ø150 ~ ø880mm
  • Micro- adjustment unit: one division = 10μm on diameter.

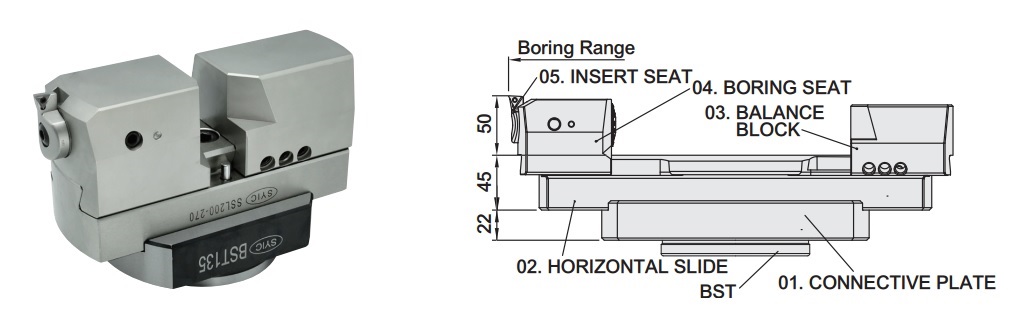

  • SMB large diameter boring head has MCK7 and BST two types connection parts to choose from.
series:

SMB SUPER MICRON EXCHANGEABLE FINISH BORING HEAD

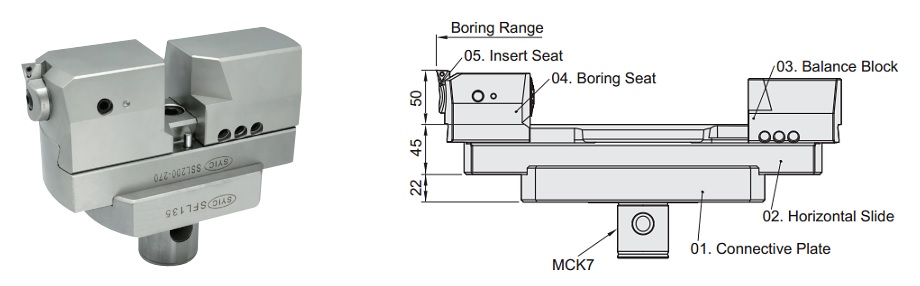

proimages/Products/Boring_head/Finish_boring_head/SMB_super_micron_/SMB_Super_Micron_figure.jpg
MODEL NO.TYPE01.
CONNECTIVE
PLATE		02.
HORIZONTAL
SLIDE		03.
BALANCE
BLOCK		04.
BORING
SEAT		05.
INSERT SEAT		BORING
RANGE		INSERTWEIGHT
(KGS)
5158-657-150 SMB150 SFL135 SSL150 ~ 200 SWB150 ~ 200 SMB150L SIC68-1 150 ~ 200 TP09/TC11 10.60
SIC68-2 176 ~ 226 TP09/TC11 10.60
SIC68-3 200~250 TP09/TC11 10.60
5158-657-200 SMB200 SFL135 SSL200 ~ 270 SWB200 ~ 550 SMB150L SIC68-1 200 ~ 270 TP09/TC11 11.60
SIC68-2 226 ~ 296 TP09/TC11 11.60
SIC68-3 250 ~ 320 TP09/TC11 11.60
5158-657-270 SMB270 SFL135 SSL270 ~ 340 SWB200 ~ 550 SMB150L SIC68-1 270 ~ 340 TP09/TC11 13.00
SIC68-2 296 ~ 366 TP09/TC11 13.00
SIC68-3 320 ~ 390 TP09/TC11 13.00
5158-657-340 SMB340 SFL135 SSL340 ~ 410 SWB200 ~ 550 SMB150L SIC68-1 340 ~ 410 TP09/TC11 14.40
SIC68-2 366 ~ 436 TP09/TC11 14.40
SIC68-3 390 ~ 460 TP09/TC11 14.40
5158-657-410 SMB410 SFL135 SSL410 ~ 480 SWB200 ~ 550 SMB150L SIC68-1 410 ~ 480 TP09/TC11 15.80
SIC68-2 436 ~ 506 TP09/TC11 15.80
SIC68-3 460 ~ 530 TP09/TC11 15.80
5158-657-480 SMB480 SFL135 SSL480 ~ 550 SWB200 ~ 550 SMB150L SIC68-1 480 ~ 550 TP09/TC11 17.20
SIC68-2 506 ~ 576 TP09/TC11 17.20
SIC68-3 530 ~ 600 TP09/TC11 17.20
5158-657-550 SMB550 SFL220 SSL550 ~ 620 SWB200 ~ 550 SMB150L SIC68-1 550 ~ 620 TP09/TC11 20.00
SIC68-2 576 ~ 646 TP09/TC11 20.00
SIC68-3 600 ~ 670 TP09/TC11 20.00
5158-657-620 SMB620 SFL220 SSL620 ~ 690 SWB200 ~ 550 SMB150L SIC68-1 620 ~ 690 TP09/TC11 21.40
SIC68-2 646 ~ 716 TP09/TC11 21.40
SIC68-3 670 ~ 740 TP09/TC11 21.40
5158-657-690 SMB690 SFL220 SSL690 ~ 760 SWB200 ~ 550 SMB150L SIC68-1 690 ~ 760 TP09/TC11 22.90
SIC68-2 716 ~ 786 TP09/TC11 22.90
SIC68-3 740 ~ 810 TP09/TC11 22.90
5158-657-760 SMB760 SFL220 SSL760 ~ 830 SWB200 ~ 550 SMB150L SIC68-1 760 ~ 830 TP09/TC11 24.30
SIC68-2 786 ~ 856 TP09/TC11 24.30
SIC68-3 810 ~ 880 TP09/TC11 24.30

ACCESSORIES:
INSERTSCREWWRENCHINSERTSCREWWRENCH
TP..0902 M2.5-6.0-3.5-60 T8 TC..1102 M2.5-6.0-3.5-60 T8
