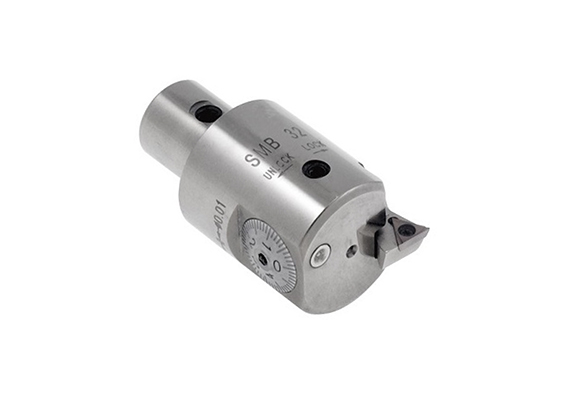

Super Micron Exchangeable Finish Boring Head
Product Name : Super Micron Exchangeable Finish Boring Head
Product Description
Boring range: ø20 ~ ø203mm

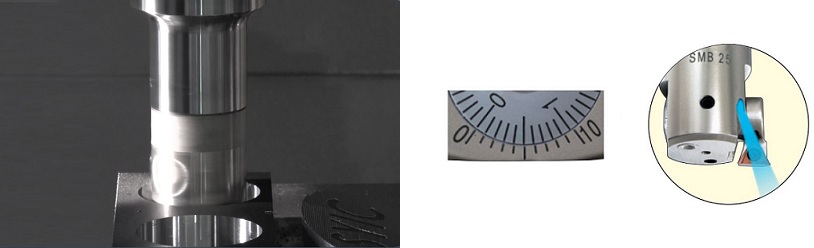

One division for adjustment is 10μm on diameter.
The insert seat is designed to have a coolant hole at the side and has good effect of chip evacuation and heat dissipation. Extends insert use life.
There are three insert seats. The standard attachment is SIC-1 insert seat. SIC-2 and SIC-3 insert seats can be ordered to expand the boring range.
SIC-2 and SIC-3 insert seats can be used for back boring.
Modular MCK system and exchangeable with CK system on the market.
The adjustable screw with almost no thread clearance enhances adjusting accuracy. Also, the pre-balance of boring head enables SMB to be applicable for high speed boring.
The unique design of SIC insert seat enables it to connect with boring head body tightly, having better rigidity, precision and dust-proof effect.

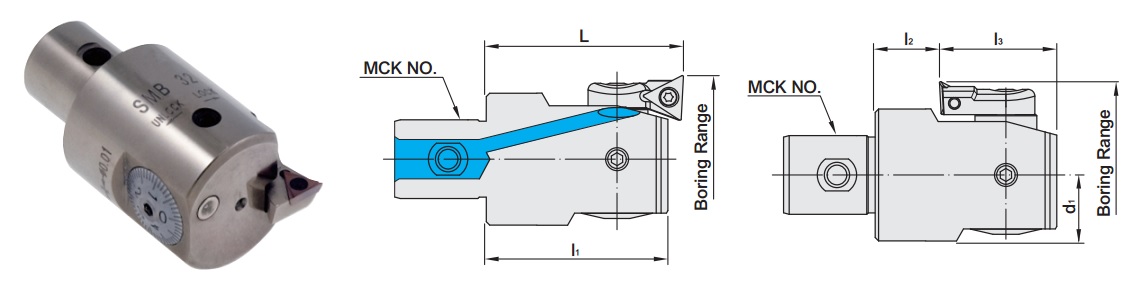

Specification
Technical information
series:
SMB
SUPER MICRON EXCHANGEABLE FINISH BORING HEAD
MODEL NO.
TYPE
MCK NO.
BORING AND PROCESSING AT FRONT
BORING AND PROCESSING AT BACK
WEIGHT
(KGS)
BORING RANGE
L
l
1
BORING RANGE
l
2
l
3
d
1
5158-657-020
SMB20
MCK1
20 ~ 26
32.5
30
-
10.5
19.5
10
0.07
25 ~ 31
32.5
30
30 ~ 31
10.5
19.5
10
0.07
30 ~ 36
32.5
30
30 ~ 36
10.5
19.5
10
0.07
5158-657-025
SMB25
MCK2
25 ~ 33
35.5
32.5
-
11.5
21
12.5
0.12
32 ~ 40
35.5
32.5
36 ~ 40
11.5
21
12.5
0.12
39 ~ 47
35.5
32.5
39 ~ 47
11.5
21
12.5
0.12
5158-657-032
SMB32
MCK3
32 ~ 42
40
35
-
10
25
16
0.21
41 ~ 51
40
35
46 ~ 51
10
25
16
0.21
50 ~ 60
40
35
50 ~ 60
10
25
16
0.21
5158-657-041
SMB41
MCK4
41 ~ 54
47
43
-
14
29
20
0.40
50 ~ 63
47
43
53 ~ 63
14
29
20
0.40
61 ~ 74
47
43
61 ~ 74
14
29
20
0.40
5158-657-053
SMB53
MCK5
53 ~ 70
57
53
62 ~ 70
19
34
25.5
1.10
65 ~ 82
57
53
65 ~ 82
19
34
25.5
1.10
78 ~ 95
57
53
78 ~ 95
19
34
25.5
1.10
5158-657-068
SMB68
MCK6
68 ~ 100
71
67.2
80 ~ 100
22
45.2
32.5
1.74
94 ~ 126
71
67.2
94 ~ 126
22
45.2
32.5
1.74
118 ~ 150
71
67.2
118 ~ 150
22
45.2
32.5
1.74
5158-657-100
SMB100
MCK7
100 ~ 153
71
67.2
112 ~ 153
22
45.2
32.5
2.46
126 ~ 179
71
67.2
126 ~ 179
22
45.2
32.5
2.46
150 ~ 203
71
67.2
150 ~ 203
22
45.2
32.5
2.46

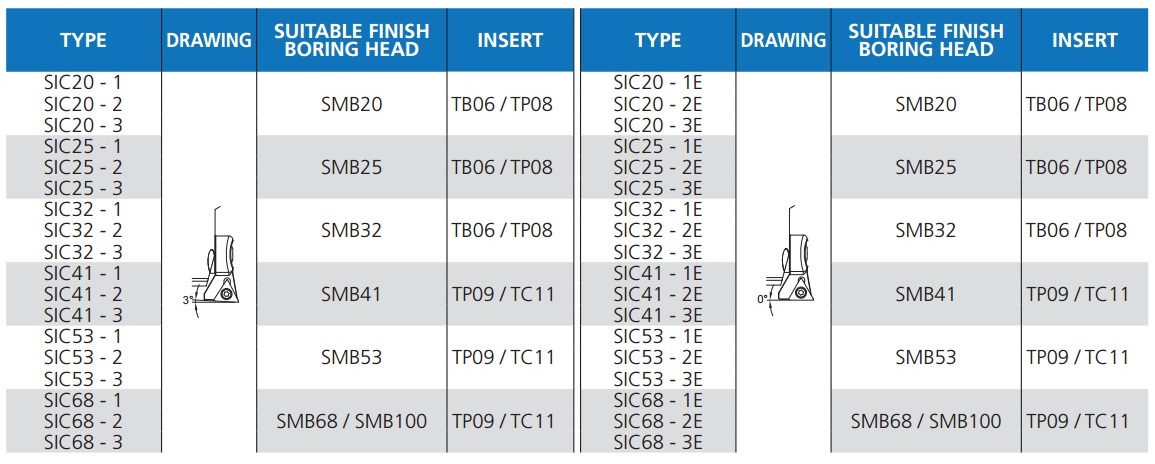

Types for Insert Seat:

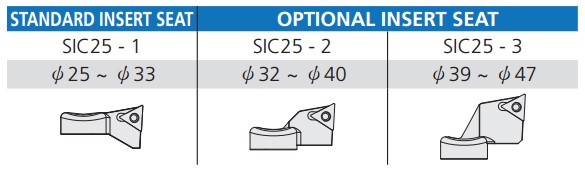

Take SIC25 insert seat for example:
series:
Technical information
