CFB Ceramic Fiber Brush C05-12

Product Name : CFB Ceramic Fiber Brush

Product Description

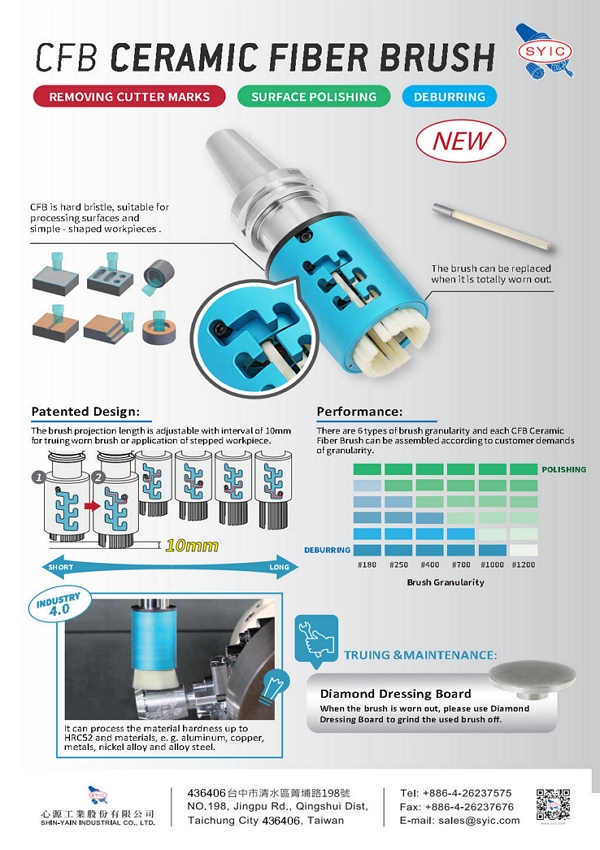

CFB Ceramic Fiber Brush

Ideal for removing cutter marks, surface polishing and deburring.
CFB is hard bristle, suitable for processing surfaces and simple - shaped workpieces.
Patented Design: The brush projection length is adjustable with interval of 10mm for truing worn brush or application of stepped workpiece.
The brush can be replaced when it is totally worn out.
Performance: There are 6 types of brush granularity and each CFB Ceramic Fiber Brush can be assembled according to customer demands of granularity.

Application:

The hard bristle is made of mixing high strength ceramic fibers and resin, ideal for processing flat surfaces or simple-shaped workpieces.
Applicable for all steels, aluminum, copper, nickel alloy steels with hardness less than HRC52.
Heat-resistant temperature is up to 400°C.
Workable for both dry and wet machining, but flood coolant is recommended because coolant through center will affect processing.

DDB DIAMOND DRESSING BOARD

The front surface is coated with high hardness of diamond powders for truing the worn bristle. The brush can be used continuously.
Ideal for use with CFB CERAMIC FIBER BRUSH and DMB DIAMOND BRUSH.
The plate is light-weighted aluminum alloy, easy operation.
Wet machining is recommended to let coolant fluid flush away the dust and particles, maintaining a healthy working environment.

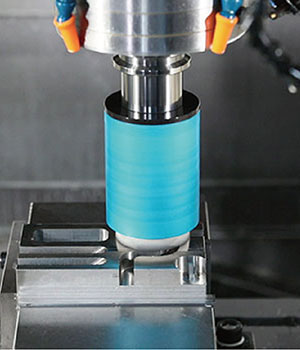

proimages/Products/Accessories/CFB_Ceramic_Fiber_Brush/CFB-feature.jpg

series:

DualDRIVE+ SBT/CFB CERAMIC FIBER

proimages/Products/Accessories/CFB_Ceramic_Fiber_Brush/SBT-CFB_figure.jpg

MODEL NO.	TYPE	L	l1	l2	D	d1	ADJUSTABLE BRUSH LENGTH	BRUSH TYPE	WEIGHT (KGS)
5025-802-040-125	SBT30xCFB40-125	173.4	125	45	55	36.5	12.7 ~ 40	DB - 50	1.20
5025-802-050-125	SBT30xCFB50-125	173.4	125	45	65	46	12.7 ~ 40	DB - 50	1.23
5025-802-063-125	SBT30xCFB63-125	173.4	125	45	78	59	12.7 ~ 40	DB - 50	1.66
5026-802-040-120	SBT40xCFB40-120	185.4	120	40	55	36.5	12.7 ~ 40	DB - 50	1.65
5026-802-050-120	SBT40xCFB50-120	185.4	120	40	65	46	12.7 ~ 40	DB - 50	1.69
5026-802-063-120	SBT40xCFB63-120	185.4	120	40	78	59	12.7 ~ 40	DB - 50	2.11
5026-802-063-165	SBT40xCFB63-165	230.4	165	60	78	59	15 ~ 65	DB - 75	2.55
5026-802-080-120	SBT40xCFB80-120	185.4	120	40	95	76	12.7 ~ 40	DB - 50	2.43
5026-802-080-165	SBT40xCFB80-165	230.4	165	60	95	76	15 ~ 65	DB - 75	2.90
5026-802-100-120	SBT40xCFB100-120	185.4	120	40	115	96	12.7 ~ 40	DB - 50	2.81
5026-802-100-165	SBT40xCFB100-165	230.4	165	60	115	96	15 ~ 65	DB - 75	3.34
5027-802-040-125	SBT50xCFB40-125	226.8	125	45	55	36.5	12.7 ~ 40	DB - 50	4.33
5027-802-050-125	SBT50xCFB50-125	226.8	125	45	65	46	12.7 ~ 40	DB - 50	4.36
5027-802-063-125	SBT50xCFB63-125	226.8	125	45	78	59	12.7 ~ 40	DB - 50	4.79
5027-802-063-150	SBT50xCFB63-150	251.8	150	45	78	59	15 ~ 65	DB - 75	4.98
5027-802-080-125	SBT50xCFB80-125	226.8	125	45	95	76	12.7 ~ 40	DB - 50	5.11
5027-802-080-150	SBT50xCFB80-150	251.8	150	45	95	76	15 ~ 65	DB - 75	5.34
5027-802-100-125	SBT50xCFB100-125	226.8	125	45	115	96	12.7 ~ 40	DB - 50	5.49
5027-802-100-150	SBT50xCFB100-150	251.8	150	45	115	96	15 ~ 65	DB - 75	5.78

proimages/Products/Accessories/CFB_Ceramic_Fiber_Brush/Brush_for_replacement.jpg

DualDRIVE+ SCAT/CFB CERAMIC FIBER

proimages/Products/Accessories/CFB_Ceramic_Fiber_Brush/SCAT-CFB_figure.jpg

MODEL NO.	TYPE	inches						BRUSH TYPE	WEIGHT (KGS)
MODEL NO.	TYPE	L	l1	l2	D	d1	ADJUSTABLE BRUSH LENGTH	BRUSH TYPE	WEIGHT (KGS)
5043-802-040-115	SCAT40xCFB40-4.53"	7.21	4.53	1.378	2.17	1.44	0.5 ~ 1.57	DB - 50	1.51
5043-802-050-115	SCAT40xCFB50-4.53"	7.21	4.53	1.378	2.56	1.81	0.5 ~ 1.57	DB - 50	1.54
5043-802-063-115	SCAT40xCFB63-4.53"	7.21	4.53	1.378	3.07	2.32	0.5 ~ 1.57	DB - 50	1.96
5043-802-063-155	SCAT40xCFB63-6.10"	8.79	6.10	1.969	3.07	2.32	0.59 ~ 2.56	DB - 75	2.36
5043-802-080-115	SCAT40xCFB80-4.53"	7.21	4.53	1.378	3.74	2.99	0.5 ~ 1.57	DB - 50	2.28
5043-802-080-155	SCAT40xCFB80-6.10"	8.79	6.10	1.969	3.74	2.99	0.59 ~ 2.56	DB - 75	2.72
5043-802-100-115	SCAT40xCFB100-4.53"	7.21	4.53	1.378	4.53	3.78	0.5 ~ 1.57	DB - 50	2.66
5043-802-100-155	SCAT40xCFB100-6.10"	8.79	6.10	1.969	4.53	3.78	0.59 ~ 2.56	DB - 75	3.15
5044-802-040-115	SCAT50xCFB40-4.53"	8.53	4.53	1.378	2.17	1.44	0.5 ~ 1.57	DB - 50	3.58
5044-802-050-115	SCAT50xCFB50-4.53"	8.53	4.53	1.378	2.56	1.81	0.5 ~ 1.57	DB - 50	3.61
5044-802-063-115	SCAT50xCFB63-4.53"	8.53	4.53	1.378	3.07	2.32	0.5 ~ 1.57	DB - 50	4.04
5044-802-063-140	SCAT50xCFB63-5.51"	9.51	5.51	1.378	3.07	2.32	0.59 ~ 2.56	DB - 75	4.24
5044-802-080-115	SCAT50xCFB80-4.53"	8.53	4.53	1.378	3.74	2.99	0.5 ~ 1.57	DB - 50	4.36
5044-802-080-140	SCAT50xCFB80-5.51"	9.51	5.51	1.378	3.74	2.99	0.59 ~2.56	DB - 75	4.59
5044-802-100-115	SCAT50xCFB100-4.53"	8.53	4.53	1.378	4.53	3.78	0.5 ~ 1.57	DB - 50	4.74
5044-802-100-140	SCAT50xCFB100-5.51"	9.51	5.51	1.378	4.53	3.78	0.59 ~ 2.56	DB - 75	5.03

DualDRIVE+ SDAT/CFB CERAMIC FIBER

proimages/Products/Accessories/CFB_Ceramic_Fiber_Brush/SDAT-CFB_figure.jpg

MODEL NO.	TYPE	L	l1	l2	D	d1	ADJUSTABLE BRUSH LENGTH	BRUSH TYPE	WEIGHT (KGS)
5066-802-040-115	SDAT40xCFB40-115	183.4	115	35	55	36.5	12.7 ~ 40	DB - 50	1.55
5066-802-050-115	SDAT40xCFB50-115	183.4	115	35	65	46	12.7 ~ 40	DB - 50	1.58
5066-802-063-115	SDAT40xCFB63-115	183.4	115	35	78	59	12.7 ~ 40	DB - 50	2.01
5066-802-063-165	SDAT40xCFB63-165	233.4	165	60	78	59	15 ~ 65	DB - 75	2.51
5066-802-080-115	SDAT40xCFB80-115	183.4	115	35	95	76	12.7 ~ 40	DB - 50	2.33
5066-802-080-165	SDAT40xCFB80-165	233.4	165	60	95	76	15 ~ 65	DB - 75	2.87
5066-802-100-115	SDAT40xCFB100-115	183.4	115	35	115	96	12.7 ~ 40	DB - 50	2.71
5066-802-100-165	SDAT40xCFB100-165	233.4	165	60	115	96	15 ~ 65	DB - 75	3.31
5067-802-040-115	SDAT50xCFB40-115	216.75	115	35	55	36.5	12.7 ~ 40	DB - 50	3.67
5067-802-050-115	SDAT50xCFB50-115	216.75	115	35	65	46	12.7 ~ 40	DB - 50	3.71
5067-802-063-115	SDAT50xCFB63-115	216.75	115	35	78	59	12.7 ~ 40	DB - 50	4.13
5067-802-063-140	SDAT50xCFB63-140	241.75	140	35	78	59	15 ~ 65	DB - 75	4.33
5067-802-080-115	SDAT50xCFB80-115	216.75	115	35	95	76	12.7 ~ 40	DB - 50	4.45
5067-802-080-140	SDAT50xCFB80-140	241.75	140	35	95	76	15 ~ 65	DB - 75	4.69
5067-802-100-115	SDAT50xCFB100-115	216.75	115	35	115	96	12.7 ~ 40	DB - 50	4.83
5067-802-100-140	SDAT50xCFB100-140	241.75	140	35	115	96	15 ~ 65	DB - 75	5.13

HSK-A/CFB CERAMIC FIBER

proimages/Products/Accessories/CFB_Ceramic_Fiber_Brush/HSK-CFB_figure.jpg

MODEL NO.	TYPE	L	l1	l2	D	d1	ADJUSTABLE BRUSH LENGTH	BRUSH TYPE	WEIGHT (KGS)
5073-802-040-165	HSK63AxCFB40-165	197	165	85	55	36.5	12.7 ~ 40	DB - 50	1.99
5073-802-050-165	HSK63AxCFB50-165	197	165	85	65	46	12.7 ~ 40	DB - 50	2.02
5073-802-063-165	HSK63AxCFB63-165	197	165	85	78	59	12.7 ~ 40	DB - 50	2.45
5073-802-080-165	HSK63AxCFB80-165	197	165	85	95	76	12.7 ~ 40	DB - 50	2.77
5073-802-100-165	HSK63AxCFB100-165	197	165	85	115	96	12.7 ~ 40	DB - 50	3.16
5074-802-040-170	HSK80AxCFB40-170	210	170	90	55	36.5	12.7 ~ 40	DB - 50	2.70
5074-802-050-170	HSK80AxCFB50-170	210	170	90	65	46	12.7 ~ 40	DB - 50	2.73
5074-802-063-170	HSK80AxCFB63-170	210	170	90	78	59	12.7 ~ 40	DB - 50	3.16
5074-802-063-225	HSK80AxCFB63-225	265	225	120	78	59	15 ~ 65	DB - 75	3.83
5074-802-080-170	HSK80AxCFB80-170	210	170	90	95	76	12.7 ~ 40	DB - 50	3.48
5074-802-080-225	HSK80AxCFB80-225	265	225	120	95	76	15 ~ 65	DB - 75	4.19
5074-802-100-170	HSK80AxCFB100-170	210	170	90	115	96	12.7 ~ 40	DB - 50	3.87
5074-802-100-225	HSK80AxCFB100-225	265	225	120	115	96	15 ~ 65	DB - 75	4.63
5075-802-040-175	HSK100AxCFB40-175	225	175	95	55	36.5	12.7 ~ 40	DB - 50	3.66
5075-802-050-175	HSK100AxCFB50-175	225	175	95	65	46	12.7 ~ 40	DB - 50	3.69
5075-802-063-175	HSK100AxCFB63-175	225	175	95	78	59	12.7 ~ 40	DB - 50	4.12
5075-802-063-225	HSK100AxCFB63-225	275	225	120	78	59	15 ~ 65	DB - 75	4.70
5075-802-080-175	HSK100AxCFB80-175	225	175	95	95	76	12.7 ~ 40	DB - 50	4.44
5075-802-080-225	HSK100AxCFB80-225	275	225	120	95	76	15 ~ 65	DB - 75	5.06
5075-802-100-175	HSK100AxCFB100-175	225	175	95	115	96	12.7 ~ 40	DB - 50	5.11
5075-802-100-225	HSK100AxCFB100-225	275	225	120	115	96	15 ~ 65	DB - 75	5.50
5076-802-040-180	HSK125AxCFB40-180	243	180	100	55	36.5	12.7 ~ 40	DB - 50	5.02
5076-802-050-180	HSK125AxCFB50-180	243	180	100	65	46	12.7 ~ 40	DB - 50	5.05
5076-802-063-180	HSK125AxCFB63-180	243	180	100	78	59	12.7 ~ 40	DB - 50	5.48
5076-802-063-230	HSK125AxCFB63-230	293	230	125	78	59	15 ~ 65	DB - 75	6.06
5076-802-080-180	HSK125AxCFB80-180	243	180	100	95	76	12.7 ~ 40	DB - 50	5.80
5076-802-080-230	HSK125AxCFB80-230	293	230	125	95	76	15 ~ 65	DB - 75	6.42
5076-802-100-180	HSK125AxCFB100-180	243	180	100	115	96	12.7 ~ 40	DB - 50	6.18
5076-802-100-230	HSK125AxCFB100-230	293	230	125	115	96	15 ~ 65	DB - 75	6.86

HSK-E/CFB CERAMIC FIBER

proimages/Products/Accessories/CFB_Ceramic_Fiber_Brush/HSK-E-CFB_figure.jpg

MODEL NO.	TYPE	L	l1	l2	D	d1	ADJUSTABLE BRUSH LENGTH	BRUSH TYPE	WEIGHT (KGS)
5101-802-040-165	HSK63ExCFB40-165	197	165	85	55	36.5	12.7 ~ 40	DB - 50	1.99
5101-802-050-165	HSK63ExCFB50-165	197	165	85	65	46	12.7 ~ 40	DB - 50	2.02
5101-802-063-165	HSK63ExCFB63-165	197	165	85	78	59	12.7 ~ 40	DB - 50	2.45
5101-802-080-165	HSK63ExCFB80-165	197	165	85	95	76	12.7 ~ 40	DB - 50	2.77
5101-802-100-165	HSK63ExCFB100-165	197	165	85	115	96	12.7 ~ 40	DB - 50	3.16
5107-802-040-170	HSK80ExCFB40-170	210	170	90	55	36.5	12.7 ~ 40	DB - 50	2.70
5107-802-050-170	HSK80ExCFB50-170	210	170	90	65	46	12.7 ~ 40	DB - 50	2.73
5107-802-063-170	HSK80ExCFB63-170	210	170	90	78	59	12.7 ~ 40	DB - 50	3.16
5107-802-063-225	HSK80ExCFB63-225	265	225	120	78	59	15 ~ 65	DB - 75	3.83
5107-802-080-170	HSK80ExCFB80-170	210	170	90	95	76	12.7 ~ 40	DB - 50	3.48
5107-802-080-225	HSK80ExCFB80-225	265	225	120	95	76	15 ~ 65	DB - 75	4.19
5107-802-100-170	HSK80ExCFB100-170	210	170	90	115	96	12.7 ~ 40	DB - 50	3.87
5107-802-100-225	HSK80ExCFB100-225	265	225	120	115	96	15 ~ 65	DB - 75	4.63
5108-802-040-175	HSK100ExCFB40-175	225	175	95	55	36.5	12.7 ~ 40	DB - 50	3.66
5108-802-050-175	HSK100ExCFB50-175	225	175	95	65	46	12.7 ~ 40	DB - 50	3.69
5108-802-063-175	HSK100ExCFB63-175	225	175	95	78	59	12.7 ~ 40	DB - 50	4.12
5108-802-063-225	HSK100ExCFB63-225	275	225	120	78	59	15 ~ 65	DB - 75	4.70
5108-802-080-175	HSK100ExCFB80-175	225	175	95	95	76	12.7 ~ 40	DB - 50	4.44
5108-802-080-225	HSK100ExCFB80-225	275	225	120	95	76	15 ~ 65	DB - 75	5.06
5108-802-100-175	HSK100ExCFB100-175	225	175	95	115	96	12.7 ~ 40	DB - 50	5.11
5108-802-100-225	HSK100ExCFB100-225	275	225	120	115	96	15 ~ 65	DB - 75	5.50

PSC/CFB CERAMIC FIBER

proimages/Products/Accessories/CFB_Ceramic_Fiber_Brush/PSC-CFB_figure.jpg

MODEL NO.	TYPE	L	l1	l2	D	d1	ADJUSTABLE BRUSH LENGTH	BRUSH TYPE	WEIGHT (KGS)
5141-802-040-150	PSC40xCFB40-150	174	150	70	55	36.5	12.7 ~ 40	DB - 50	1.46
5141-802-050-150	PSC40xCFB50-150	174	150	70	65	46	12.7 ~ 40	DB - 50	1.49
5141-802-063-150	PSC40xCFB63-150	174	150	70	78	59	12.7 ~ 40	DB - 50	1.92
5141-802-080-150	PSC40xCFB80-150	174	150	70	95	76	12.7 ~ 40	DB - 50	2.24
5141-802-100-150	PSC40xCFB100-150	174	150	70	115	96	12.7 ~ 40	DB - 50	2.62
5142-802-040-150	PSC50xCFB40-150	180	150	70	55	36.5	12.7 ~ 40	DB - 50	1.65
5142-802-050-150	PSC50xCFB50-150	180	150	70	65	46	12.7 ~ 40	DB - 50	1.68
5142-802-063-150	PSC50xCFB63-150	180	150	70	78	59	12.7 ~ 40	DB - 50	2.11
5142-802-080-150	PSC50xCFB80-150	180	150	70	95	76	12.7 ~ 40	DB - 50	2.43
5142-802-100-150	PSC50xCFB100-150	180	150	70	115	96	12.7 ~ 40	DB - 50	2.80
5143-802-040-150	PSC63xCFB40-150	188	150	70	55	36.5	12.7 ~ 40	DB - 50	1.95
5143-802-050-150	PSC63xCFB50-150	188	150	70	65	46	12.7 ~ 40	DB - 50	1.98
5143-802-063-150	PSC63xCFB63-150	188	150	70	78	59	12.7 ~ 40	DB - 50	2.41
5143-802-063-205	PSC63xCFB63-205	243	205	100	78	59	15 ~ 65	DB - 75	2.98
5143-802-080-150	PSC63xCFB80-150	188	150	70	95	76	12.7 ~ 40	DB - 50	2.73
5143-802-080-205	PSC63xCFB80-205	243	205	100	95	76	15 ~ 65	DB - 75	3.34
5143-802-100-150	PSC63xCFB100-150	188	150	70	115	96	12.7 ~ 40	DB - 50	3.11
5143-802-100-205	PSC63xCFB100-205	243	205	100	115	96	15 ~ 65	DB - 75	3.78
5144-802-040-145	PSC80xCFB40-145	193	145	65	55	36.5	12.7 ~ 40	DB - 50	2.84
5144-802-050-145	PSC80xCFB50-145	193	145	65	65	46	12.7 ~ 40	DB - 50	2.88
5144-802-063-145	PSC80xCFB63-145	193	145	65	78	59	12.7 ~ 40	DB - 50	3.30
5144-802-063-195	PSC80xCFB63-195	243	195	90	78	59	15 ~ 65	DB - 75	3.89
5144-802-080-145	PSC80xCFB80-145	193	145	65	95	76	12.7 ~ 40	DB - 50	3.62
5144-802-080-195	PSC80xCFB80-195	243	195	90	95	76	15 ~ 65	DB - 75	4.25
5144-802-100-145	PSC80xCFB100-145	193	145	65	115	96	12.7 ~ 40	DB - 50	4.00
5144-802-100-195	PSC80xCFB100-195	243	195	90	115	96	15 ~ 65	DB - 75	4.69
5145-802-040-145	PSC80XxCFB40-145	193	145	65	55	36.5	12.7 ~ 40	DB - 50	3.56
5145-802-050-145	PSC80XxCFB50-145	193	145	65	65	46	12.7 ~ 40	DB - 50	3.59
5145-802-063-145	PSC80XxCFB63-145	193	145	65	78	59	12.7 ~ 40	DB - 50	4.02
5145-802-063-195	PSC80XxCFB63-195	243	195	90	78	59	15 ~ 65	DB - 75	4.61
5145-802-080-145	PSC80XxCFB80-145	193	145	65	95	76	12.7 ~ 40	DB - 50	4.34
5145-802-080-195	PSC80XxCFB80-195	243	195	90	95	76	15 ~ 65	DB - 75	4.96
5145-802-100-145	PSC80XxCFB100-145	193	145	65	115	96	12.7 ~ 40	DB - 50	4.72
5145-802-100-195	PSC80XxCFB100-195	243	195	90	115	96	15 ~ 65	DB - 75	5.40

MODEL NO.	TYPE	L	d1	d2	WEIGHT (KGS)
5330-098-060-00	DDB120	35	50	120	0.54

series:

proimages/Products/Accessories/CFB_Ceramic_Fiber_Brush/Ceramic_Fiber_Brush-en-cover.jpg

series:

CFB Ceramic Fiber Brush

CFB Ceramic Fiber Brush Machining Application

Back
