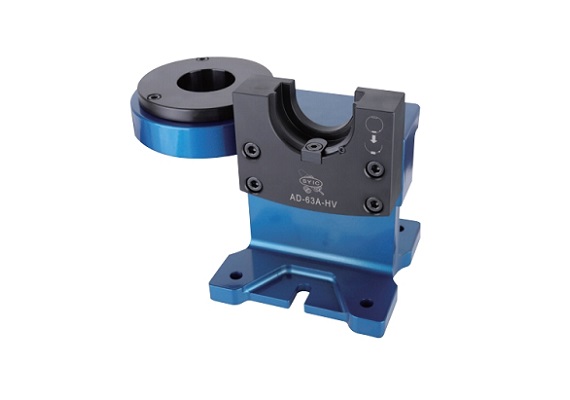

Product Name : Tool Holder Locking Device
Two-Way Type- HSK-A Series
Product Description

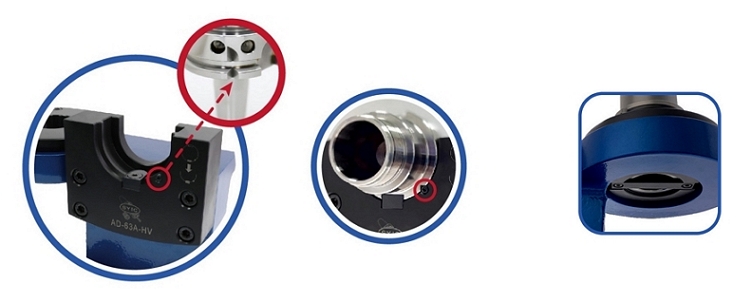

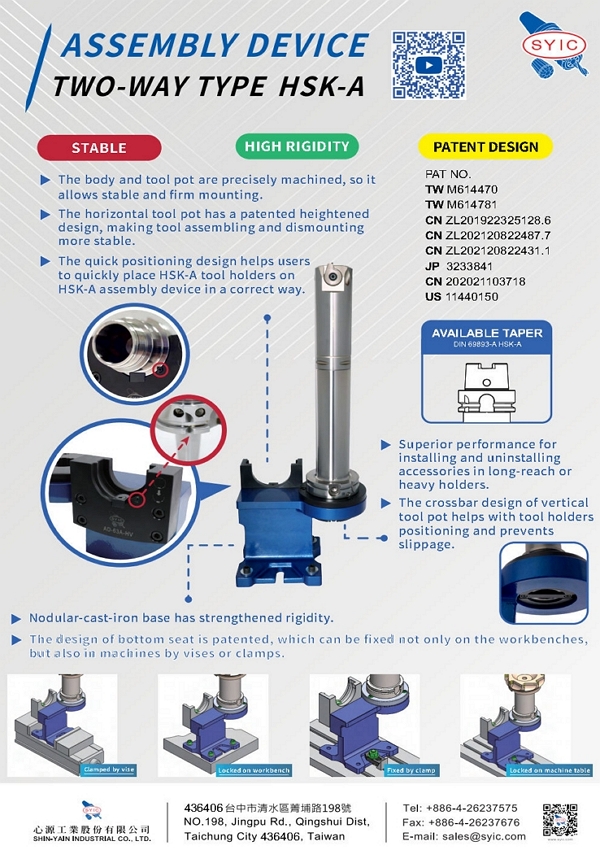

The body and tool pot are precisely machined, so it allows stable and firm mounting.
The horizontal tool pot has a patented heightened design, making tool assembling and dismounting more stable.
The quick positioning design helps users to quickly place HSK-A tool holders on HSK-A assembly device in a correct way.
The crossbar design of vertical tool pot helps with tool holders positioning and prevents slippage.
Nodular-cast-iron base has strengthened rigidity.
Superior performance for installing and uninstalling accessories in long-reach or heavy holders.

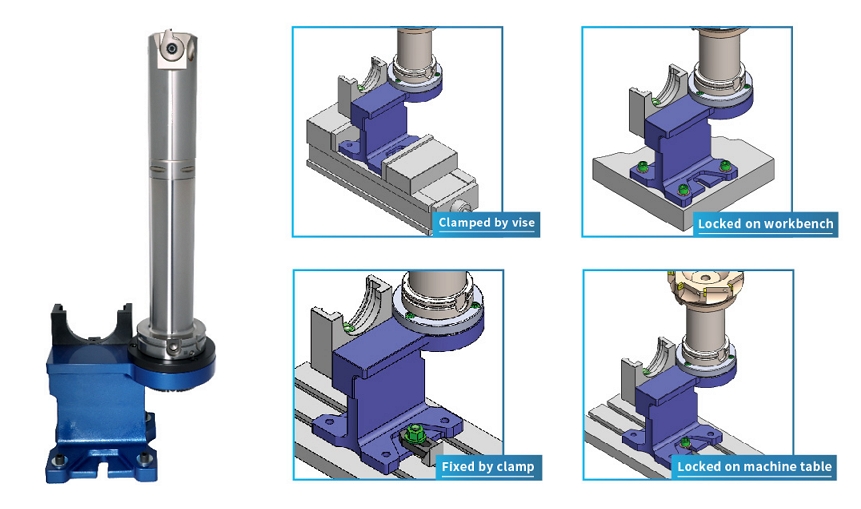

The design of bottom seat is patented, which can be fixed not only on the workbenches, but also in machines by vises or clamps.
Specification
Technical information
video
series:
HSK-A
Two-Way Type- HSK-A Series

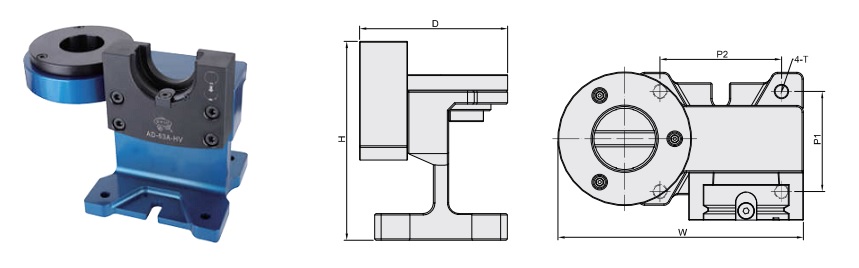

MODEL NO.
TYPE
COMPATIBLE TOOLING
D
H
W
P
1
P
2
T
WEIGHT
(KGS)
5300-020-070-02
AD-HSK32A-HV
HSK32A
100
130.5
184
71
91
M8
4.82
5300-020-071-02
AD-HSK40A-HV
HSK40A
105
138.5
184
71
91
M8
5.25
5300-020-072-02
AD-HSK50A-HV
HSK50A
111
142.5
184
71
91
M8
5.47
5300-020-073-04
AD-HSK63A-HV
HSK63A/T
111
149
184
71
91
M8
5.54
5300-020-074-02
AD-HSK80A-HV
HSK80A
137.5
207
242
112
116
M10
12.5
5300-020-075-02
AD-HSK100A-HV
HSK100A
139.5
211.5
242
112
116
M10
12.3
