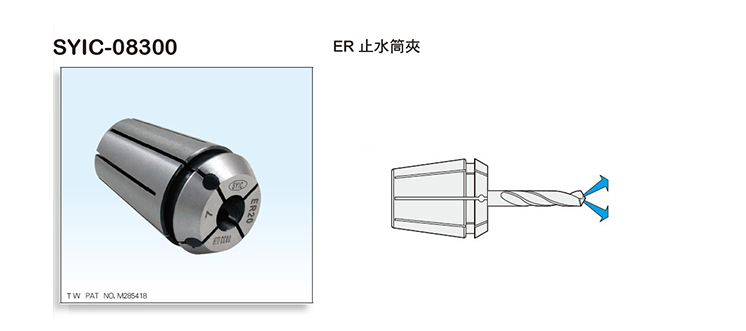

Product Name : ER Sealed Collet
Product Introduction
    Steel: SUJ2.
  • HRC 46°.
  • Taper 8°.
  • The design is to take use of the difference of flutes and O-rings to achieve center coolant.
  • Useful for coolant cutting tools.
  • Water pressure up to 21 kgf/cm2.
  • No flexibility (No flexible chucking range. It depends on the biggest chucking range).
  • Non-standard types, such as inch type or decimal type, are welcomed to order.
  • The ER part of the product is according to DIN-15488. It can be used with suitable tool holders.
  • Patent-owned.
ER11 SEALED COLLET
MODEL NO.HOLE SIZEMODEL NO.HOLE SIZE
SYIC - 08311 - 3 3 SYIC - 08311 -7 7
SYIC - 08311 - 4 4
SYIC - 08311 - 5 5
SYIC - 08311 - 6 6
ER16 SEALED COLLET
MODEL NO.HOLE SIZEMODEL NO.HOLE SIZE
SYIC - 08316 - 03 3 SYIC - 08316 - 07 7
SYIC - 08316 - 04 4 SYIC - 08316 - 08 8
SYIC - 08316 - 05 5 SYIC - 08316 - 09 9
SYIC - 08316 - 06 6 SYIC - 08316 - 10 10
ER20 SEALED COLLET
MODEL NO.HOLE SIZEMODEL NO.HOLE SIZEMODEL NOHOLE SIZEMODEL NO.HOLE SIZE
SYIC - 08320 - 03 3 SYIC - 08320 - 06 6 SYIC - 08320 - 09 9 SYIC - 08320 - 12 12
SYIC - 08320 - 04 4 SYIC - 08320 - 07 7 SYIC - 08320 - 10 10 SYIC - 08320 - 13 13
SYIC - 08320 - 05 5 SYIC - 08320 - 08 8 SYIC - 08320 - 11 11
ER25 SEALED COLLET
MODEL NO.HOLE SIZEMODEL NO.HOLE SIZEMODEL NO.HOLE SIZEMODEL NO.HOLE SIZE
SYIC - 08325 - 03 3 SYIC - 08325 - 07 7 SYIC - 08325 - 11 11 SYIC - 08325 - 15 15
SYIC - 08325 - 04 4 SYIC - 08325 - 08 8 SYIC - 08325 - 12 12 SYIC - 08325 - 16 16
SYIC - 08325 - 05 5 SYIC - 08325 - 09 9 SYIC - 08325 - 13 13
SYIC - 08325 - 06 6 SYIC - 08325 - 10 10 SYIC - 08325 - 14 14
ER32 SEALED COLLET
MODEL NO.HOLE SIZEMODEL NO.HOLE SIZEMODEL NO.HOLE SIZEMODEL NO.HOLE SIZE
SYIC - 08332 - 03 3 SYIC - 08332 - 08 8 SYIC - 08332 - 13 13 SYIC - 08332 - 18 18
SYIC - 08332 - 04 4 SYIC - 08332 - 09 9 SYIC - 08332 - 14 14 SYIC - 08332 - 19 19
SYIC - 08332 - 05 5 SYIC - 08332 - 10 10 SYIC - 08332 - 15 15 SYIC - 08332 - 20 20
SYIC - 08332 - 06 6 SYIC - 08332 - 11 11 SYIC - 08332 - 16 16
SYIC - 08332 - 07 7 SYIC - 08332 - 12 12 SYIC - 08332 - 17 17
ER40 SEALED COLLET
MODEL NO.HOLE SIZEMODEL NO.HOLE SIZEMODEL NO.HOLE SIZEMODEL NO.HOLE SIZE
SYIC - 08340 - 03 3 SYIC - 08340 - 09 9 SYIC - 08340 - 15 15 SYIC - 08340 - 21 21
SYIC - 08340 - 04 4 SYIC - 08340 - 10 10 SYIC - 08340 - 16 16 SYIC - 08340 - 22 22
SYIC - 08340 - 05 5 SYIC - 08340 - 11 11 SYIC - 08340 - 17 17 SYIC - 08340 - 23 23
SYIC - 08340 - 06 6 SYIC - 08340 - 12 12 SYIC - 08340 - 18 18 SYIC - 08340 - 24 24
SYIC - 08340 - 07 7 SYIC - 08340 - 13 13 SYIC - 08340 - 19 19 SYIC - 08340 - 25 25
SYIC - 08340 - 08 8 SYIC - 08340 - 14 14 SYIC - 08340 - 20 20 SYIC - 08340 - 26 26
