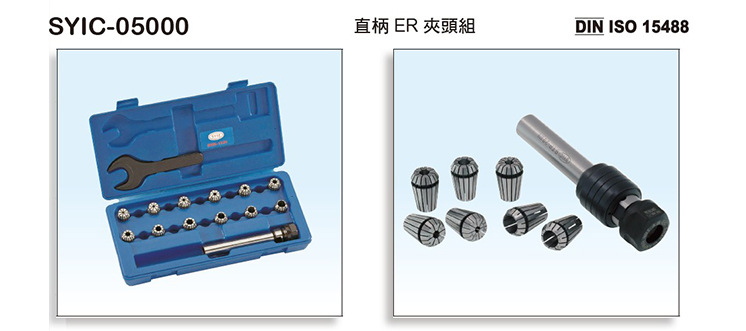

Product Name : Straight Shank ER Collet Chuck Set
Product Introduction
  • Whole set=(ER Collet x Q'ty)+spanner+body+plastic box.
  • It is acceptable to order a set for the sizes selected by request.
  • ET: INCLUDING BODY, NUT, WRENCH, SET OF COLLET AND BOX.



MODEL NO.TYPEWEIGHT (KGS)MODEL NO.TYPEWEIGHT (KGS)
SYIC - 05006 C16 x ER16A - 50 x 10PCS 1.4 SYIC - 05032 C25 x ER40 - 50 x 7PCS 5.35
SYIC - 05007 C16 x ER16A - 100 x 10PCS 1.48 SYIC - 05033 C25 x ER40 - 50 x 23PCS 9.35
SYIC - 05008 C16 x ER16A - 150 x 10PCS 1.56 SYIC - 05034 C32 x ER32 - 60 x 6PCS 3.25
SYIC - 05010 C20 x ER16A - 50 x 10PCS 1.5 SYIC - 05035 C32 x ER32 - 60 x 18PCS 4.45
SYIC - 05011 C20 x ER16A - 100 x 10PCS 1.6 SYIC - 05036 C32 x ER40 - 50 x 7PCS 5.48
SYIC - 05012 C20 x ER16A - 150 x 10PCS 1.7 SYIC - 05037 C32 x ER40 - 50 x 23PCS 9.48
SYIC - 05014 C20 x ER20A - 60 x 12PCS 1.71 SYIC - 05054 5/8" x ER11A - 140 x 13PCS 1.36
SYIC - 05015 C20 x ER20A - 120 x 12PCS 1.76 SYIC - 05039 5/8" x ER16A - 60 x 10PCS 1.42
SYIC - 05016 C20 x ER20A - 180 x 12PCS 1.88 SYIC - 05040 3/4" x ER16A - 50 x 10PCS 1.5
SYIC - 05018 C20 x ER25 - 50 x 15PCS 2.42 SYIC - 05041 3/4" x ER16A - 100 x 10PCS 1.6
SYIC - 05019 C20 x ER25 - 100 x 15PCS 2.55 SYIC - 05056 3/4" x ER16A - 140 x 10PCS 1.55
SYIC - 05021 C20 x ER32 - 50 x 6PCS 2.42 SYIC - 05058 1" x ER20A - 140 x 12 PCS 1.98
SYIC - 05022 C20 x ER32 - 100 x 6PCS 2.52 SYIC - 05042 1" x ER25 - 50 x 15PCS 2.85
SYIC - 05024 C20 x ER32 - 50 x 18PCS 3.62 SYIC - 05043 1" x ER32 - 50 x 6PCS 3
SYIC - 05025 C20 x ER32 - 100 x 18PCS 3.72 SYIC - 05044 1" x ER32 - 50 x 18PCS 4.2
SYIC - 05027 C25 x ER25 - 50 x 15PCS 3.1 SYIC - 05045 1" x ER40 - 50 x 7PCS 5.35
SYIC - 05028 C25 x ER25 - 100 x 15PCS 3.23 SYIC - 05046 1" x ER40 - 50 x 23PCS 9.35
SYIC - 05030 C25 x ER32 - 50 x 6PCS 3 SYIC - 05047 1-1/4" x ER32 - 60 x 6PCS 3.15
SYIC - 05031 C25 x ER32 - 50 x 18PCS 4.2 SYIC - 05048 1-1/4" x ER32 - 60 x 18PCS 4.35



STRAIGHT SHANK ER TAPPER (FOR CNC LATHE)

MODEL NO.TYPECOLLETTYPPERWEIGHT (KGS)
SYIC - 05210 TP20 x 7PCS / SET 4, 5, 6, 7, 9, 12, 13 mm M3 ~ M16 1.22
SYIC - 05220 TP32 x 10PCS / SET 4, 5, 6, 7, 9, 12, 13, 15, 19, 20 mm M3 ~ M27 3.9
SYIC - 05230 TPM320 x 7PCS / SET 4, 5, 6, 7, 9, 12, 13 mm M3 ~ M16 1.5
SYIC - 05240 TPM420 x 7PCS / SET 4, 5, 6, 7, 9, 12, 13 mm M3 ~ M16 1.7
SYIC - 05250 TPM432 x 10PCS / SET 4, 5, 6, 7, 9, 12, 13, 15, 19, 20 mm M3 ~ M27 4.1
