series:

BT/QTC QUICK CHANGE TAPPING CHUCK
With length compensation on tension and compression

MODEL NO.	TYPE	TAPPING COLLET	TAPPING CAPACITY	COMPENSATION		l1	D	d1	WEIGHT (KGS)
MODEL NO.	TYPE	TAPPING COLLET	TAPPING CAPACITY	F1	F2	l1	D	d1	WEIGHT (KGS)
5010-580-001-070	BT30xQTC1-70	TCS - 1B	M3 - M14	7.5	7.5	70	36	19	0.70
5010-580-002-105	BT30xQTC2-105	TCS - 2B	M8 - M24	12.5	12.5	105	53	31	1.20
5011-580-001-075	BT40xQTC1-75	TCS - 1B	M3 - M14	7.5	7.5	75	36	19	2.00
5011-580-002-095	BT40xQTC2-95	TCS - 2B	M8 - M24	12.5	12.5	95	53	31	1.70
5011-580-003-160	BT40xQTC3-160	TCS - 3B	M14 - M36	20	20	160	78	48	3.20
5012-580-001-085	BT50xQTC1-85	TCS - 1B	M3 - M14	7.5	7.5	85	36	19	4.00
5012-580-002-105	BT50xQTC2-105	TCS - 2B	M8 - M24	12.5	12.5	105	53	31	4.30
5012-580-003-150	BT50xQTC3-150	TCS - 3B	M14 - M36	20	20	150	78	48	5.80

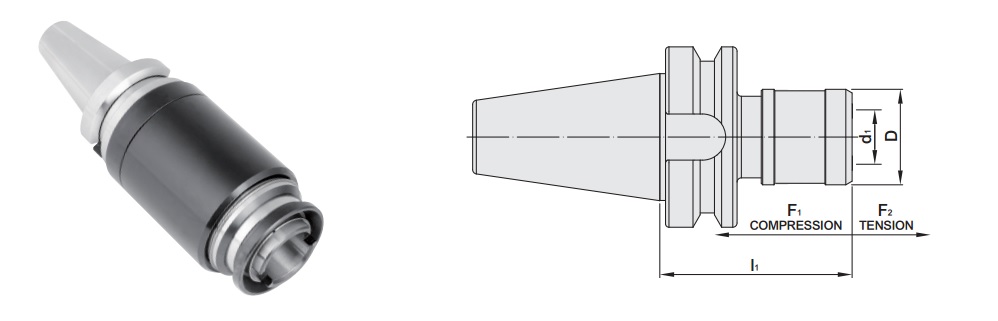

BT/QTC QUICK CHANGE TAPPING CHUCK (EXTENSION TYPE)
With length compensation on tension and compression

MODEL NO.	TYPE	TAPPING COLLET	TAPPING CAPACITY	COMPENSATION		l1	D	d1	WEIGHT (KGS)
MODEL NO.	TYPE	TAPPING COLLET	TAPPING CAPACITY	F1	F2	l1	D	d1	WEIGHT (KGS)
5011-580-001-135	BT40xQTC1-135	TCS - 1B	M3 - M14	7.5	7.5	135	38	19	2.00
5011-580-001-165	BT40xQTC1-165	TCS - 1B	M3 - M14	7.5	7.5	165	38	19	2.50
5012-580-001-135	BT50xQTC1-135	TCS - 1B	M3 - M14	7.5	7.5	135	38	19	4.40
5012-580-001-165	BT50xQTC1-165	TCS - 1B	M3 - M14	7.5	7.5	165	38	19	4.70
5012-580-001-195	BT50xQTC1-195	TCS - 1B	M3 - M14	7.5	7.5	195	38	19	5.00
5012-580-002-135	BT50xQTC2-135	TCS - 2B	M8 - M24	12.5	12.5	135	58	31	5.30
5012-580-002-165	BT50xQTC2-165	TCS - 2B	M8 - M24	12.5	12.5	165	58	31	6.20
5012-580-002-195	BT50xQTC2-195	TCS - 2B	M8 - M24	12.5	12.5	195	58	31	7.00
5012-580-003-200	BT50xQTC3-200	TCS - 3B	M14 - M36	20	20	200	62	48	7.20

DualDRIVE+ SBT/QTC QUICK CHANGE TAPPING CHUCK
With length compensation on tension and compression

MODEL NO.	TYPE	TAPPING COLLET	TAPPING CAPACITY	COMPENSATION		l1	D	d1	WEIGHT (KGS)
MODEL NO.	TYPE	TAPPING COLLET	TAPPING CAPACITY	F1	F2	l1	D	d1	WEIGHT (KGS)
5025-580-001-085	SBT30xQTC1-85	TCS - 1B	M3 - M14	7.5	7.5	85	36	19	0.86
5025-580-002-115	SBT30xQTC2-115	TCS - 2B	M8 - M24	12.5	12.5	115	53	31	1.46
5026-580-001-075	SBT40xQTC1-75	TCS - 1B	M3 - M14	7.5	7.5	75	36	19	1.26
5026-580-002-100	SBT40xQTC2-100	TCS - 2B	M8 - M24	12.5	12.5	100	53	31	1.74
5026-580-003-160	SBT40xQTC3-160	TCS - 3B	M14 - M36	20	20	160	78	48	3.63
5027-580-001-090	SBT50xQTC1-90	TCS - 1B	M3 - M14	7.5	7.5	90	36	19	4.00
5027-580-002-115	SBT50xQTC2-115	TCS - 2B	M8 - M24	12.5	12.5	115	53	31	4.51
5027-580-003-150	SBT50xQTC3-150	TCS - 3B	M14 - M36	20	20	150	78	48	5.78

DualDRIVE+ SCAT/QTC QUICK CHANGE TAPPING CHUCK
With length compensation on tension and compression

MODEL NO.	TYPE	TAPPING COLLET	TAPPING CAPACITY	COMPENSATION		l1	D	d1	WEIGHT (KGS)
MODEL NO.	TYPE	TAPPING COLLET	TAPPING CAPACITY	F1	F2	l1	D	d1	WEIGHT (KGS)
5043-580-001-089	SCAT40xQTC1-3.5"	TCS - 1B	M3 - M14	0.295	0.295	3.5	1.417	1.337	1.38
5043-580-002-114	SCAT40xQTC2-4.5"	TCS - 2B	M8 - M24	0.492	0.492	4.5	2.087	1.22	1.92
5043-580-003-152	SCAT40xQTC3-6"	TCS - 3B	M14 - M36	0.787	0.787	6	3.071	1.89	3.28
5044-580-001-070	SCAT50xQTC1-2.75"	TCS - 1B	M3 - M14	0.295	0.295	2.75	1.417	1.337	2.95
5044-580-002-102	SCAT50xQTC2-4"	TCS - 2B	M8 - M24	0.492	0.492	4	2.087	1.22	3.62
5044-580-003-146	SCAT50xQTC3-5.75"	TCS - 3B	M14 - M36	0.787	0.787	5.75	3.071	1.89	5.19

DualDRIVE+ SDAT/QTC QUICK CHANGE TAPPING CHUCK
With length compensation on tension and compression

MODEL NO.	TYPE	TAPPING COLLET	TAPPING CAPACITY	COMPENSATION		l1	D	d1	WEIGHT (KGS)
MODEL NO.	TYPE	TAPPING COLLET	TAPPING CAPACITY	F1	F2	l1	D	d1	WEIGHT (KGS)
5066-580-001-075	SDAT40xQTC1-75	TCS - 1B	M3 - M14	7.5	7.5	75	36	19	1.24
5066-580-002-110	SDAT40xQTC2-110	TCS - 2B	M8 - M24	12.5	12.5	110	53	31	1.88
5066-580-003-160	SDAT40xQTC3-160	TCS - 3B	M14 - M36	20	20	160	78	48	3.54
5067-580-001-085	SDAT50xQTC1-85	TCS - 1B	M3 - M14	7.5	7.5	85	36	19	3.25
5067-580-002-105	SDAT50xQTC2-105	TCS - 2B	M8 - M24	12.5	12.5	105	53	31	3.76
5067-580-003-150	SDAT50xQTC3-150	TCS - 3B	M14 - M36	20	20	150	78	48	5.40

HSK/QTC QUICK CHANGE TAPPING CHUCK
With length compensation on tension and compression

MODEL NO.	TYPE	TAPPING COLLET	TAPPING CAPACITY	COMPENSATION		l1	D	d1	WEIGHT (KGS)
MODEL NO.	TYPE	TAPPING COLLET	TAPPING CAPACITY	F1	F2	l1	D	d1	WEIGHT (KGS)
5071-580-001-095	HSK40AxQTC1-95	TCS - 1B	M3 - M14	7.5	7.5	95	36	19	0.72
5072-580-001-100	HSK50AxQTC1-100	TCS - 1B	M3 - M14	7.5	7.5	100	36	19	0.97
5072-580-002-140	HSK50AxQTC2-140	TCS - 2B	M8 - M24	12.5	12.5	140	53	31	1.89
5073-580-001-090	HSK63AxQTC1-90	TCS - 1B	M3 - M14	7.5	7.5	90	36	19	1.15
5073-580-002-125	HSK63AxQTC2-125	TCS - 2B	M8 - M24	12.5	12.5	125	53	31	1.89
5073-580-003-175	HSK63AxQTC3-175	TCS - 3B	M14 - M36	20	20	175	78	48	3.61
5075-580-001-100	HSK100AxQTC1-100	TCS - 1B	M3 - M14	7.5	7.5	100	36	19	2.58
5075-580-002-135	HSK100AxQTC2-135	TCS - 2B	M8 - M24	12.5	12.5	135	53	31	3.51
5075-580-003-185	HSK100AxQTC3-185	TCS - 3B	M14 - M36	20	20	185	78	48	5.46

PSC/QTC QUICK CHANGE TAPPING CHUCK
With length compensation on tension and compression

MODEL NO.	TYPE	TAPPING COLLET	TAPPING CAPACITY	COMPENSATION		l1	D	d1	WEIGHT (KGS)
MODEL NO.	TYPE	TAPPING COLLET	TAPPING CAPACITY	F1	F2	l1	D	d1	WEIGHT (KGS)
5140-580-001-080	PSC32xQTC1-80	TCS - 1B	M3 - M14	7.5	7.5	80	36	19	0.40
5141-580-001-080	PSC40xQTC1-80	TCS - 1B	M3 - M14	7.5	7.5	80	36	19	0.70
5141-580-002-110	PSC40xQTC2-110	TCS - 2B	M8 - M24	12.5	12.5	110	53	31	1.30
5142-580-001-080	PSC50xQTC1-80	TCS - 1B	M3 - M14	7.5	7.5	80	36	19	1.00
5142-580-002-115	PSC50xQTC2-115	TCS - 2B	M8 - M24	12.5	12.5	115	53	31	1.70
5143-580-001-090	PSC63xQTC1-90	TCS - 1B	M3 - M14	7.5	7.5	90	36	19	1.30
5143-580-002-120	PSC63xQTC2-120	TCS - 2B	M8 - M24	12.5	12.5	120	53	31	2.40
5143-580-003-170	PSC63xQTC3-170	TCS - 3B	M14 - M36	20	20	170	78	48	3.40
5144-580-001-085	PSC80xQTC1-85	TCS - 1B	M3 - M14	7.5	7.5	85	36	19	2.40
5144-580-002-110	PSC80xQTC2-110	TCS - 2B	M8 - M24	12.5	12.5	110	53	31	3.30
5144-580-003-160	PSC80xQTC3-160	TCS - 3B	M14 - M36	20	20	160	78	48	3.70

series:

QTC Quick Change Tapping Chuck
