SAM Angle Head Holder
Product Name : SAM Angle Head Holder
Product Description
proimages/taper_icon/BT_SBT-icon..jpg proimages/taper_icon/CAT_SCAT-icon..jpg proimages/taper_icon/DAT_SDAT-icon..jpg proimages/taper_icon/HSK-icon..jpg

For light cutting

  • It is mainly suitable for drilling and tapping machining.
  • Coolant feed through dowel pin or spindle into the body, coolant outlet from cutting tools with coolant hole or a coolant nozzle.
  • Maximum revolution: 4000rpm
  • Maximum torque: 20N・m
  • Recommended cutting depth ≤ 2mm
  • Maximum coolant pressure: 7kgf/cm2
  • Workable for ATC automatic tool change system
  • Direction of rotation: opposite to machine spindle
  • Gear ratio 1:1

proimages/Products/Angle_head_holder/SAM/SAM-feature_picture1.jpg


proimages/Products/Angle_head_holder/SAM/SAM-feature_picture2.jpg
series:

SAM ANGLE HEAD HOLDER FOR LIGHT CUTTING

proimages/Products/Angle_head_holder/SAM/SAM-SKS_TYPE_figure.jpg

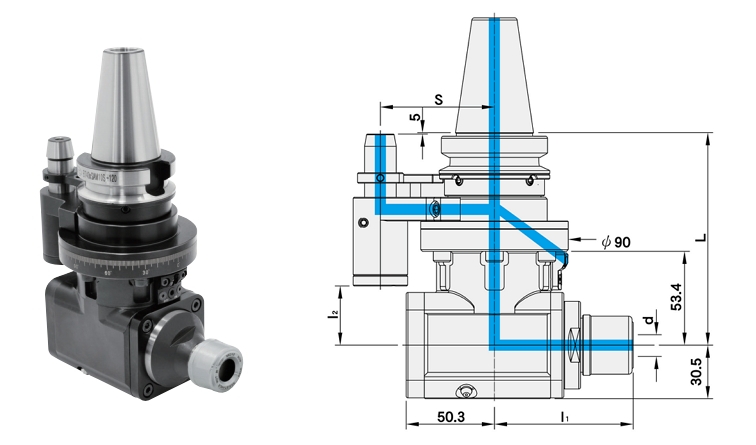

WITH COOLANT SYSTEM
MODEL NO.TYPELl1STORQUECOLLETd
SIZE RANGE
WEIGHT
(KGS)
11.635.10.120 BT40 x SAM10S - 120 120 87 65 20 N-m SKS10 3 ~ 10 5.20
11.635.13.120 BT40 x SAM13S - 120 120 87 65 20 N-m SKS13 3 ~ 13 5.20
11.635.16.120 BT40 x SAM16S - 120 120 89.5 65 20 N-m SKS16 3 ~ 16 5.20
11.635.20.120 BT40 x SAM20S - 120 120 90 65 20 N-m SKS20 3 ~ 20 5.20
12.635.10.135 BT50 x SAM10S - 135 135 87 80 20 N-m SKS10 3 ~ 10 6.30
12.635.13.135 BT50 x SAM13S - 135 135 87 80 20 N-m SKS13 3 ~ 13 6.30
12.635.16.135 BT50 x SAM16S - 135 135 89.5 80 20 N-m SKS16 3 ~ 16 6.30
12.635.20.135 BT50 x SAM20S - 135 135 90 80 20 N-m SKS20 3 ~ 20 6.30
31.635.10.537 CAT40 x SAM10S - 5.372" 5.372 3.425 2.559 20 N-m SKS10 3 ~ 10 5.20
31.635.13.537 CAT40 x SAM13S - 5.372" 5.372 3.425 2.559 20 N-m SKS13 3 ~ 13 5.20
31.635.16.537 CAT40 x SAM16S - 5.372" 5.372 3.524 2.559 20 N-m SKS16 3 ~ 16 5.20
31.635.20.537 CAT40 x SAM20S - 5.372" 5.372 3.543 2.559 20 N-m SKS20 3 ~ 20 5.20
32.635.10.550 CAT50 x SAM10S - 5.5" 5.5 3.425 3.145 20 N-m SKS10 3 ~ 10 6.30
32.635.13.550 CAT50 x SAM13S - 5.5" 5.5 3.425 3.145 20 N-m SKS13 3 ~ 13 6.30
32.635.16.550 CAT50 x SAM16S - 5.5" 5.5 3.524 3.145 20 N-m SKS16 3 ~ 16 6.30
32.635.20.550 CAT50 x SAM20S - 5.5" 5.5 3.543 3.145 20 N-m SKS20 3 ~ 20 6.30
51.635.10.136 DAT40 x SAM10S - 136.45 136.45 87 65 20 N-m SKS10 3 ~ 10 5.20
51.635.13.136 DAT40 x SAM13S - 136.45 136.45 87 65 20 N-m SKS13 3 ~ 13 5.20
51.635.16.136 DAT40 x SAM16S - 136.45 136.45 89.5 65 20 N-m SKS16 3 ~ 16 5.20
51.635.20.136 DAT40 x SAM20S - 136.45 136.45 90 65 20 N-m SKS20 3 ~ 20 5.20
52.635.10.139 DAT50 x SAM10S - 139.7 139.7 87 80 20 N-m SKS10 3 ~ 10 6.30
52.635.13.139 DAT50 x SAM13S - 139.7 139.7 87 80 20 N-m SKS13 3 ~ 13 6.30
52.635.16.139 DAT50 x SAM16S - 139.7 139.7 89.5 80 20 N-m SKS16 3 ~ 16 6.30
52.635.20.139 DAT50 x SAM20S - 139.7 139.7 90 80 20 N-m SKS20 3 ~ 20 6.30
73.635.10.145 HSK63A x SAM10S - 145 145 87 65 20 N-m SKS10 3 ~ 10 5.20
73.635.13.145 HSK63A x SAM13S - 145 145 87 65 20 N-m SKS13 3 ~ 13 5.20
73.635.16.145 HSK63A x SAM16S - 145 145 89.5 65 20 N-m SKS16 3 ~ 16 5.20
73.635.20.145 HSK63A x SAM20S - 145 145 90 65 20 N-m SKS20 3 ~ 20 5.20
75.635.10.150 HSK100A x SAM10S - 150 150 87 80 20 N-m SKS10 3 ~ 10 6.30
75.635.13.150 HSK100A x SAM13S - 150 150 87 80 20 N-m SKS13 3 ~ 13 6.30
75.635.16.150 HSK100A x SAM16S - 150 150 89.5 80 20 N-m SKS16 3 ~ 16 6.30
75.635.20.150 HSK100A x SAM20S - 150 150 90 80 20 N-m SKS20 3 ~ 20 6.30
26.635.10.120 SBT40 x SAM10S - 120 120 87 65 20 N-m SKS10 3 ~ 10 5.20
26.635.13.120 SBT40 x SAM13S - 120 120 87 65 20 N-m SKS13 3 ~ 13 5.20
26.635.16.120 SBT40 x SAM16S - 120 120 89.5 65 20 N-m SKS16 3 ~ 16 5.20
26.635.20.120 SBT40 x SAM20S - 120 120 90 65 20 N-m SKS20 3 ~ 20 5.20
27.635.10.135 SBT50 x SAM10S - 135 135 87 80 20 N-m SKS10 3 ~ 10 6.30
27.635.13.135 SBT50 x SAM13S - 135 135 87 80 20 N-m SKS13 3 ~ 13 6.30
27.635.16.135 SBT50 x SAM16S - 135 135 89.5 80 20 N-m SKS16 3 ~ 16 6.30
27.635.20.135 SBT50 x SAM20S - 135 135 90 80 20 N-m SKS20 3 ~ 20 6.30
43.635.10.537 SCAT40 x SAM10S - 5.372" 5.372 3.425 2.559 20 N-m SKS10 3 ~ 10 5.20
43.635.13.537 SCAT40 x SAM13S - 5.372" 5.372 3.425 2.559 20 N-m SKS13 3 ~ 13 5.20
43.635.16.537 SCAT40 x SAM16S - 5.372" 5.372 3.524 2.559 20 N-m SKS16 3 ~ 16 5.20
43.635.20.537 SCAT40 x SAM20S - 5.372" 5.372 3.543 2.559 20 N-m SKS20 3 ~ 20 5.20
44.635.10.550 SCAT50 x SAM10S - 5.5" 5.5 3.425 3.145 20 N-m SKS10 3 ~ 10 6.30
44.635.13.550 SCAT50 x SAM13S - 5.5" 5.5 3.425 3.145 20 N-m SKS13 3 ~ 13 6.30
44.635.16.550 SCAT50 x SAM16S - 5.5" 5.5 3.524 3.145 20 N-m SKS16 3 ~ 16 6.30
44.635.20.550 SCAT50 x SAM20S - 5.5" 5.5 3.543 3.145 20 N-m SKS20 3 ~ 20 6.30
66.635.10.136 SDAT40 x SAM10S - 136.45 136.45 87 65 20 N-m SKS10 3 ~ 10 5.20
66.635.13.136 SDAT40 x SAM13S - 136.45 136.45 87 65 20 N-m SKS13 3 ~ 13 5.20
66.635.16.136 SDAT40 x SAM16S - 136.45 136.45 89.5 65 20 N-m SKS16 3 ~ 16 5.20
66.635.20.136 SDAT40 x SAM20S - 136.45 136.45 90 65 20 N-m SKS20 3 ~ 20 5.20
67.635.10.139 SDAT50 x SAM10S - 139.7 139.7 87 80 20 N-m SKS10 3 ~ 10 6.30
67.635.13.139 SDAT50 x SAM13S - 139.7 139.7 87 80 20 N-m SKS13 3 ~ 13 6.30
67.635.16.139 SDAT50 x SAM16S - 139.7 139.7 89.5 80 20 N-m SKS16 3 ~ 16 6.30
67.635.20.139 SDAT50 x SAM20S - 139.7 139.7 90 80 20 N-m SKS20 3 ~ 20 6.30

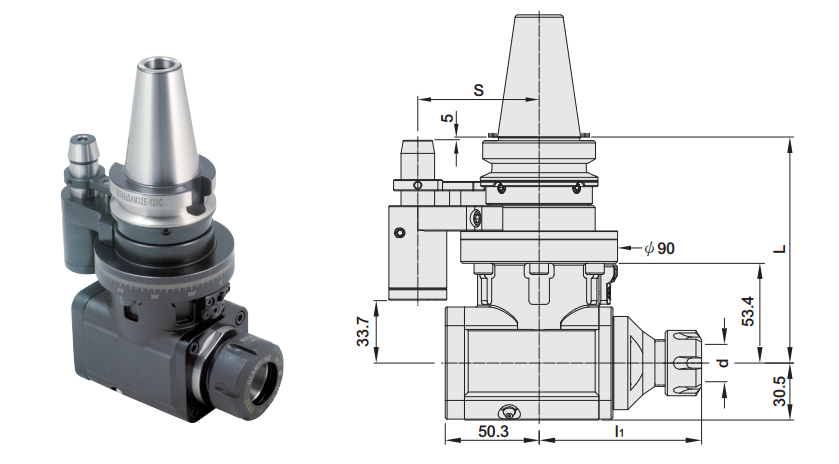

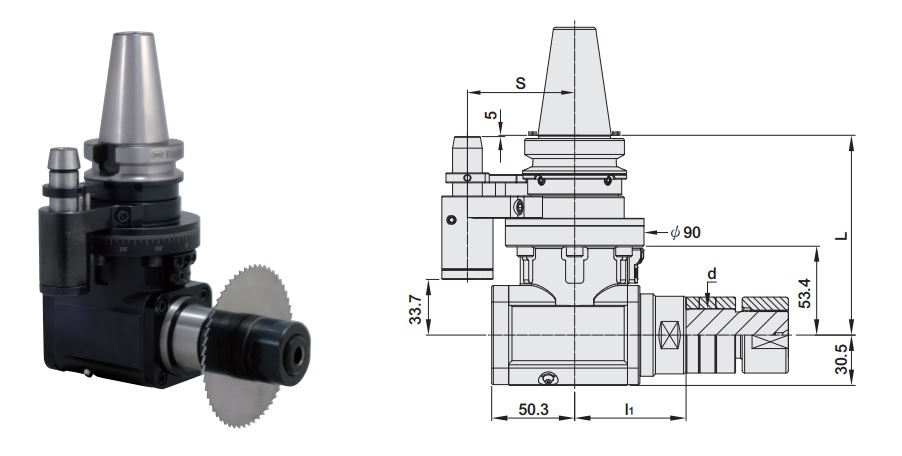

series:
proimages/Products/Angle_head_holder/SAM/SAM-TI.jpg
series:
How to Install SAM Angle Head Holder on a Machining Center
