Product Name : USC Ultimate Side Clamping Chuck (SBL Type)
Product Description
proimages/taper_icon/SBT-icon..jpg proimages/taper_icon/HSK-icon..jpg proimages/taper_icon/PSC-icon..jpg
  • Quick Tool Change:
    Clamp/Unclamp from the side. Quick tool change!
    Internal gear design, which drives the collet to change the tool.
  • Machining Rigidity:
    The enlarged neck of the tool holder improves machining rigidity.
  • Reducing Interference:
    The USC design w/o nut is good for interference reduction.
  • Center Coolant Available:
    Effectively removes metal chips, extends tool life and improves surface finish of workpiece.
  • Balance:
    G2.5 25,000RPM

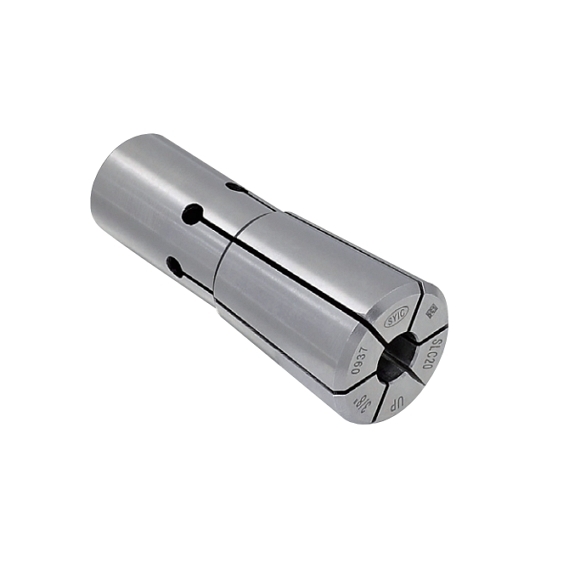

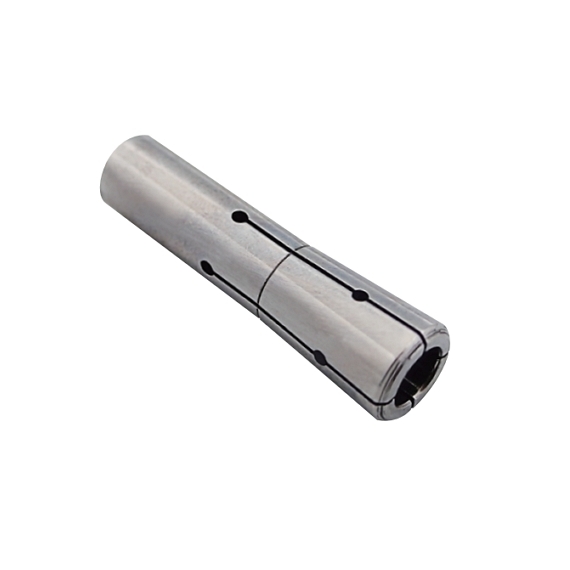

  • USC Ultimate Side Clamping Chuck (SBL type): Use SLC collet or SLC sealed collet to clamp tools.
proimages/Products/Tool_holders/USC_ULTIMATE_SIDE_CLAMPING_CHUCK/USC-feature_picture.jpg
series:

USC ULTIMATE SIDE CLAMPING CHUCK (SBL TYPE)

proimages/Products/Tool_holders/USC_ULTIMATE_SIDE_CLAMPING_CHUCK/USC-SBL_Type-figure.jpg

MODEL NO.TYPELl1l2Dd1d2SIZE
RANGE
WEIGHT
(KGS)
5025-749-006-130 SBT30xUSC6L-130 178.8 130 57.5 52.4 14 26 3 ~ 6 1.39
5025-749-012-130 SBT30xUSC12L-130 178.4 130 60 52.4 26 31.2 3 ~ 12 1.95
5026-749-006-130 SBT40xUSC6L-130 195.4 130 77.5 52.4 14 30.2 3 ~ 6 1.51
5026-749-012-130 SBT40xUSC12L-130 195.4 130 80 52.4 26 32.9 3 ~ 12 2.12
5073-749-006-160 HSK63AxUSC6L-160 192 160 77.5 52.4 14 30.2 3 ~ 6 1.61
5073-749-012-160 HSK63AxUSC12L-160 192 160 80 52.4 26 32.9 3 ~ 12 2.31
5141-749-006-155 PSC40xUSC6L-155 179 155 77.5 52.4 14 30.2 3 ~ 6 1.22
5141-749-012-155 PSC40xUSC12L-155 179 155 80 52.4 26 32.9 3 ~ 12 1.92
5143-749-006-130 PSC63xUSC6L-130 168 130 57.5 52.4 14 26 3 ~ 6 1.82
5143-749-012-130 PSC63xUSC12L-130 168 130 60 52.4 26 31.2 3 ~ 12 2.31
series:
proimages/Products/Tool_holders/USC_ULTIMATE_SIDE_CLAMPING_CHUCK/USC_ULTIMATE_SIDE_CLAMPING_CHUCK..jpg
series:
USC Ultimate Side Clamping Chuck
