Spindle Test Bar (5µm) - SYIC : Spindle Precision Test Bar Manufacturer

Product Name : Spindle Test Bar 5µm

Spindle Test Bar : High Precision Machining Solution

Why Choose SYIC Spindle Test Bars?
1. The spindle test bar facilitates precise calibration of machine tool spindles, ensuring they operate within tight tolerances.
2. Reduced spindle runout and vibration lead to smoother machining processes as well as maximize tool holder performance, minimizing tool wear, and enhancing overall production throughput.
3. Crafted with precision engineering and stringent quality control, our Spindle Test Bar exemplifies uncompromising quality.
4. The ability to identify and rectify spindle issues early on prevents expensive repairs and downtime, contributing to long-term cost savings.

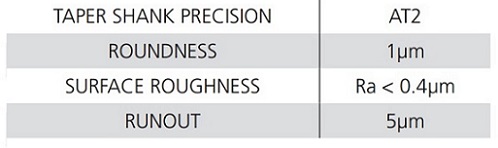

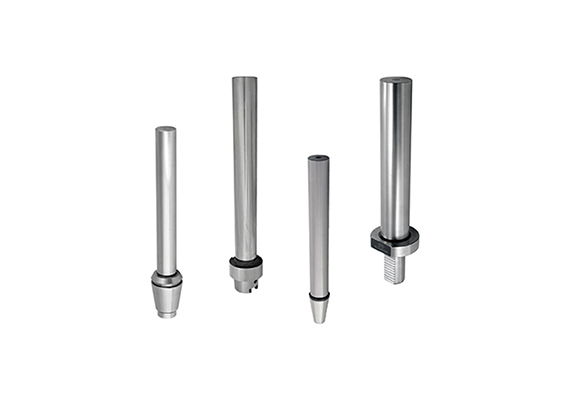

Available types: BT, CAT, DAT, HSK, MTB, VDI spindle test bars and ER collet chuck test bar.
Supplied with a wooden box for vertical storage.
It’s recommended to store in stock vertically to prevent deformation.

series:

SPINDLE TEST BAR

BT SERIES

MODEL NO.	TYPE	l1	l2	D	d1	WEIGHT (KGS)
5002-010-025-250	BT30x25-250	250	242	31.75	25	0.78
5002-010-032-235	BT30x32-235	235	200	31.75	32	1.46
5002-010-032-250	BT30x32-250	250	240	31.75	32	1.55
5002-010-032-300	BT30x32-300	300	295	31.75	32	1.83
5002-011-040-300	BT40x40-300	300	293	44.45	40	2.17
5002-011-040-335	BT40x40-335	335	300	44.45	40	2.38
5002-012-040-300	BT50x40-300	300	292	69.85	40	3.65
5002-012-063-335	BT50x63-335	335	300	69.85	63	8.52
5002-012-063-340	BT50x63-340	340	300	69.85	63	8.55
CAT SERIES
5002-031-040-300	CAT40x40-300	300	293	44.45	40	2.19
DAT SERIES
5002-051-040-302	DAT40x40-302	302	293	44.45	40	2.17
ISO SERIES
5002-111-020-100	ISO20x20-100	100	90	22.225	20	0.30
5002-111-022-152	ISO20x22-6"	152.4	140	23.911	22	0.52

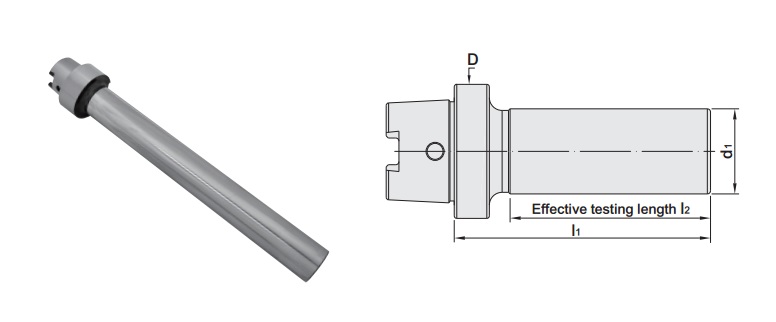

SPINDLE TEST BAR

MODEL NO.	TYPE	l1	l2	D	d1	WEIGHT (KGS)
5002-071-032-185	HSK40Ax32-185	185	150	40	32	1.13
5002-072-040-235	HSK50Ax40-235	235	200	50	40	1.85
5002-073-040-335	HSK63Ax40-335	335	300	63	40	2.78
5002-075-063-335	HSK100Ax63-335	335	300	100	63	8.03

SPINDLE TEST BAR

MODEL NO.	TYPE	l1	l2	D	d1	T		WEIGHT (KGS)
5002-179-251/5-307	MTB4x25-306.5	306.5	300	31.267	25	5/8"-11	M16x2.0P	1.60
5002-180-401/5-307	MTB5x40-306.5	306.5	300	44.399	40	1"-8	M24x3.0P	4.10

ER COLLET CHUCK TEST BAR

MODEL NO.	TYPE	l1	l2	d1	d2	WEIGHT (KGS)
5002-259-0805-080	ER8-φ5-80	19.5	80	5	8.5	0.02
5002-259-1105-100	ER11-φ5-100	26	100	5	11.5	0.03
5002-259-1607-100	ER16-φ7-100	35.5	100	7	16.55	0.07
5002-259-2010-100	ER20-φ10-100	39.5	100	10	20.55	0.14
5002-259-2513-100	ER25-φ13-100	42	100	13	25.55	0.23
5002-259-3216-100	ER32-φ16-100	48	100	16	32.55	0.38
5002-259-4020-100	ER40-φ20-100	54	100	20	40.55	0.66
5002-259-5025-100	ER50-φ25-100	68	100	25	51.85	1.22
