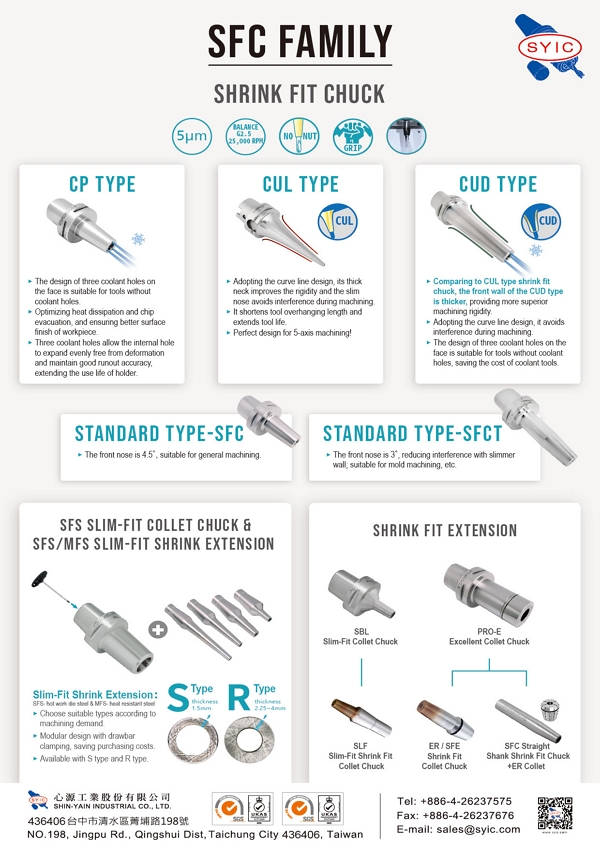

SFC Shrink Fit Chuck(with CP coolant hole)
series:
BT/SFC SHRINK FIT CHUCK with CP coolant hole
MODEL NO. | TYPE | L | l1 | l2 | l3 | d1 | d2 | d3 | T | TORQUE N.m min | WEIGHT (KGS) |
---|---|---|---|---|---|---|---|---|---|---|---|
5010-801-006-060 | BT30xSFC6-60-CP | 108.4 | 60 | 36 | 33 | 6 | 23 | 28.2 | M5 | 18 | 0.70 |
5010-801-006-080 | BT30xSFC6-80-CP | 128.4 | 80 | 36 | 53 | 6 | 21 | 27 | M5 | 18 | 0.86 |
5010-801-008-060 | BT30xSFC8-60-CP | 108.4 | 60 | 36 | 33 | 8 | 23 | 28.2 | M6 | 35 | 0.52 |
5010-801-008-080 | BT30xSFC8-80-CP | 128.4 | 80 | 36 | 53 | 8 | 21 | 27 | M6 | 35 | 0.58 |
5010-801-010-060 | BT30xSFC10-60-CP | 108.4 | 60 | 42 | 35 | 10 | 27 | 29.4 | M8 | 65 | 0.52 |
5010-801-010-080 | BT30xSFC10-80-CP | 128.4 | 80 | 42 | 53 | 10 | 24 | 32 | M8 | 65 | 0.64 |
5010-801-012-060 | BT30xSFC12-60-CP | 108.4 | 60 | 47 | 36 | 12 | 27 | 32.6 | M10 | 110 | 0.52 |
5010-801-012-080 | BT30xSFC12-80-CP | 128.4 | 80 | 47 | 53 | 12 | 24 | 32 | M10 | 110 | 0.62 |
5010-801-014-065 | BT30xSFC14-65-CP | 113.4 | 65 | 47 | 41 | 14 | 30 | 36.4 | M10 | 150 | 0.57 |
5010-801-014-080 | BT30xSFC14-80-CP | 128.4 | 80 | 47 | 55 | 14 | 27 | 34 | M10 | 150 | 0.69 |
5010-801-016-065 | BT30xSFC16-65-CP | 113.4 | 65 | 50 | 41 | 16 | 30 | 36.4 | M12 | 200 | 0.55 |
5010-801-016-080 | BT30xSFC16-80-CP | 128.4 | 80 | 50 | 55 | 16 | 27 | 34 | M12 | 200 | 0.65 |
5010-801-018-070 | BT30xSFC18-70-CP | 118.4 | 70 | 50 | 46 | 18 | 35.5 | 40.5 | M12 | 250 | 0.72 |
5010-801-018-090 | BT30xSFC18-90-CP | 138.4 | 90 | 50 | 66 | 18 | 33 | 40.5 | M12 | 250 | 0.87 |
5010-801-020-070 | BT30xSFC20-70-CP | 118.4 | 70 | 52 | 46 | 20 | 35.5 | 40.5 | M16 | 320 | 0.70 |
5010-801-020-090 | BT30xSFC20-90-CP | 138.4 | 90 | 52 | 66 | 20 | 33 | 40.5 | M16 | 320 | 0.81 |
5011-801-006-090 | BT40xSFC6-90-CP | 155.4 | 90 | 36 | 58 | 6 | 21 | 27 | M5 | 18 | 1.23 |
5011-801-006-130 | BT40xSFC6-130-CP | 195.4 | 130 | 36 | 93 | 6 | 21 | 27 | M5 | 18 | 1.41 |
5011-801-006-160 | BT40xSFC6-160-CP | 225.4 | 160 | 36 | 123 | 6 | 21 | 27 | M5 | 18 | 1.54 |
5011-801-006-200 | BT40xSFC6-200-CP | 265.4 | 200 | 36 | 163 | 6 | 21 | 27 | M5 | 18 | 1.72 |
5011-801-008-090 | BT40xSFC8-90-CP | 155.4 | 90 | 36 | 58 | 8 | 21 | 27 | M6 | 35 | 1.23 |
5011-801-008-130 | BT40xSFC8-130-CP | 195.4 | 130 | 36 | 93 | 8 | 21 | 27 | M6 | 35 | 1.41 |
5011-801-008-160 | BT40xSFC8-160-CP | 225.4 | 160 | 36 | 123 | 8 | 21 | 27 | M6 | 35 | 1.54 |
5011-801-008-200 | BT40xSFC8-200-CP | 265.4 | 200 | 36 | 163 | 8 | 21 | 27 | M6 | 35 | 1.72 |
5011-801-010-090 | BT40xSFC10-90-CP | 155.4 | 90 | 52 | 58 | 10 | 24 | 32 | M8 | 65 | 1.48 |
5011-801-010-130 | BT40xSFC10-130-CP | 195.4 | 130 | 52 | 93 | 10 | 24 | 32 | M8 | 65 | 1.66 |
5011-801-010-160 | BT40xSFC10-160-CP | 225.4 | 160 | 52 | 123 | 10 | 24 | 32 | M8 | 65 | 1.79 |
5011-801-010-200 | BT40xSFC10-200-CP | 265.4 | 200 | 52 | 163 | 10 | 24 | 32 | M8 | 65 | 1.97 |
5011-801-012-090 | BT40xSFC12-90-CP | 155.4 | 90 | 52 | 58 | 12 | 24 | 32 | M10 | 110 | 1.68 |
5011-801-012-130 | BT40xSFC12-130-CP | 195.4 | 130 | 52 | 93 | 12 | 24 | 32 | M10 | 110 | 1.86 |
5011-801-012-160 | BT40xSFC12-160-CP | 225.4 | 160 | 52 | 123 | 12 | 24 | 32 | M10 | 110 | 1.99 |
5011-801-012-200 | BT40xSFC12-200-CP | 265.4 | 200 | 52 | 163 | 12 | 24 | 32 | M10 | 110 | 2.17 |
5011-801-014-090 | BT40xSFC14-90-CP | 155.4 | 90 | 52 | 53 | 14 | 27 | 34 | M10 | 150 | 1.76 |
5011-801-014-130 | BT40xSFC14-130-CP | 195.4 | 130 | 52 | 93 | 14 | 27 | 34 | M10 | 150 | 1.94 |
5011-801-014-160 | BT40xSFC14-160-CP | 225.4 | 160 | 52 | 123 | 14 | 27 | 34 | M10 | 150 | 2.07 |
5011-801-014-200 | BT40xSFC14-200-CP | 265.4 | 200 | 52 | 163 | 14 | 27 | 34 | M10 | 150 | 2.25 |
BT/SFCT SHRINK FIT CHUCK with CP coolant hole
MODEL NO. | TYPE | L | l1 | l2 | l3 | d1 | d2 | d3 | T | TORQUE N.m min | WEIGHT (KGS) |
---|---|---|---|---|---|---|---|---|---|---|---|
5010-794-004-080 | BT30xSFCT4-80-CP | 128.4 | 80 | 20 | 53 | 4 | 21 | 26 | M6 | 18 | 0.42 |
5010-794-005-080 | BT30xSFCT5-80-CP | 128.4 | 80 | 20 | 53 | 5 | 21 | 26 | M6 | 18 | 0.54 |
5010-794-006-080 | BT30xSFCT6-80-CP | 128.4 | 80 | 36 | 53 | 6 | 21 | 26 | M5 | 18 | 0.64 |
5010-794-008-080 | BT30xSFCT8-80-CP | 128.4 | 80 | 36 | 53 | 8 | 21 | 26 | M6 | 35 | 0.56 |
5010-794-010-080 | BT30xSFCT10-80-CP | 128.4 | 80 | 42 | 53 | 10 | 24 | 29 | M8 | 65 | 0.66 |
5010-794-012-080 | BT30xSFCT12-80-CP | 128.4 | 80 | 52 | 53 | 12 | 24 | 29 | M10 | 110 | 0.66 |
5010-794-014-080 | BT30xSFCT14-80-CP | 128.4 | 80 | 52 | 46 | 14 | 24 | 32 | M10 | 150 | 0.58 |
5010-794-016-080 | BT30xSFCT16-80-CP | 128.4 | 80 | 52 | 55 | 16 | 27 | 32 | M12 | 200 | 0.60 |
5010-794-018-090 | BT30xSFCT18-90-CP | 138.4 | 90 | 52 | 66 | 18 | 33 | 38 | M12 | 250 | 0.80 |
5010-794-020-090 | BT30xSFCT20-90-CP | 138.4 | 90 | 52 | 66 | 20 | 33 | 38 | M16 | 320 | 0.76 |
5010-794-025-100 | BT30xSFCT25-100-CP | 148.4 | 100 | 58 | 78 | 25 | 44 | 49 | M20 | 500 | 1.17 |
5011-794-004-090 | BT40xSFCT4-90-CP | 155.4 | 90 | 20 | 53 | 4 | 21 | 26 | M6 | 18 | 1.01 |
5011-794-005-090 | BT40xSFCT5-90-CP | 155.4 | 90 | 20 | 58 | 5 | 21 | 26 | M6 | 18 | 1.07 |
5011-794-006-090 | BT40xSFCT6-90-CP | 155.4 | 90 | 36 | 58 | 6 | 21 | 26 | M5 | 18 | 1.15 |
5011-794-008-090 | BT40xSFCT8-90-CP | 155.4 | 90 | 36 | 58 | 8 | 21 | 26 | M6 | 35 | 1.15 |
5011-794-010-090 | BT40xSFCT10-90-CP | 155.4 | 90 | 42 | 58 | 10 | 24 | 29 | M8 | 65 | 1.20 |
5011-794-012-090 | BT40xSFCT12-90-CP | 155.4 | 90 | 52 | 58 | 12 | 24 | 29 | M10 | 110 | 1.19 |
5011-794-014-090 | BT40xSFCT14-90-CP | 155.4 | 90 | 52 | 58 | 14 | 27 | 32 | M10 | 150 | 1.24 |
5011-794-016-090 | BT40xSFCT16-90-CP | 155.4 | 90 | 52 | 58 | 16 | 27 | 32 | M12 | 200 | 1.21 |
5011-794-018-100 | BT40xSFCT18-100-CP | 165.4 | 100 | 52 | 68 | 18 | 33 | 38 | M12 | 250 | 1.42 |
5011-794-019-090 | BT40xSFCT19-90-CP | 155.4 | 90 | 60 | 58 | 19 | 33 | 38 | M16 | 250 | 1.40 |
5011-794-020-100 | BT40xSFCT20-100-CP | 165.4 | 100 | 52 | 68 | 20 | 33 | 38 | M16 | 320 | 1.38 |
5011-794-024-090 | BT40xSFCT24-90-CP | 155.4 | 90 | 72 | 61 | 24 | 44 | 49 | M20 | 500 | 1.36 |
5011-794-025-100 | BT40xSFCT25-100-CP | 165.4 | 100 | 58 | 71 | 25 | 44 | 49 | M20 | 500 | 1.66 |
5011-794-032-100 | BT40xSFCT32-100-CP | 165.4 | 100 | 58 | 71 | 32 | 44 | 49 | M20 | 550 | 1.52 |
5012-794-004-100 | BT50xSFCT4-100-CP | 201.8 | 100 | 20 | 52 | 4 | 21 | 26 | M6 | 18 | 3.86 |
5012-794-005-100 | BT50xSFCT5-100-CP | 201.8 | 100 | 20 | 57 | 5 | 21 | 26 | M6 | 18 | 3.86 |
5012-794-006-100 | BT50xSFCT6-100-CP | 201.8 | 100 | 36 | 57 | 6 | 21 | 26 | M5 | 18 | 3.92 |
5012-794-008-100 | BT50xSFCT8-100-CP | 201.8 | 100 | 36 | 52 | 8 | 21 | 26 | M6 | 35 | 3.92 |
5012-794-010-100 | BT50xSFCT10-100-CP | 201.8 | 100 | 42 | 58 | 10 | 24 | 29 | M8 | 65 | 3.90 |
5012-794-012-100 | BT50xSFCT12-100-CP | 201.8 | 100 | 52 | 52 | 12 | 24 | 29 | M10 | 110 | 3.94 |
5012-794-014-100 | BT50xSFCT14-100-CP | 201.8 | 100 | 52 | 57 | 14 | 27 | 32 | M10 | 150 | 4.02 |
5012-794-016-100 | BT50xSFCT16-100-CP | 201.8 | 100 | 52 | 52 | 16 | 27 | 32 | M12 | 200 | 3.96 |
5012-794-018-110 | BT50xSFCT18-110-CP | 211.8 | 110 | 52 | 62 | 18 | 33 | 38 | M12 | 250 | 4.18 |
5012-794-020-110 | BT50xSFCT20-110-CP | 211.8 | 110 | 52 | 67 | 20 | 33 | 38 | M16 | 320 | 4.14 |
5012-794-025-110 | BT50xSFCT25-110-CP | 211.8 | 110 | 58 | 67 | 25 | 44 | 49 | M20 | 500 | 4.46 |
5012-794-032-110 | BT50xSFCT32-110-CP | 211.8 | 110 | 58 | 67 | 32 | 44 | 49 | M20 | 550 | 4.30 |
CAT/SFC SHRINK FIT CHUCK with CP coolant hole
MODEL NO. | TYPE | L | l1 | l2 | l3 | d1 | d2 | d3 | T | TORQUE N.m min | WEIGHT (KGS) |
---|---|---|---|---|---|---|---|---|---|---|---|
5031-801-003-100 | CAT40xSFC3-100-CP | 168.249 | 100 | 18 | 55 | 3 | 16 | 22 | M8 | 18 | 1.04 |
5031-801-004-100 | CAT40xSFC4-100-CP | 168.249 | 100 | 20 | 60 | 4 | 14 | 22 | - | 18 | 1.06 |
5031-801-005-100 | CAT40xSFC5-100-CP | 168.249 | 100 | 20 | 60 | 5 | 16 | 22 | M8 | 18 | 1.12 |
5031-801-006-100 | CAT40xSFC6-100-CP | 168.249 | 100 | 36 | 54 | 6 | 21 | 27 | M5 | 18 | 1.23 |
5031-801-006-150 | CAT40xSFC6-150-CP | 218.249 | 150 | 36 | 104 | 6 | 21 | 27 | M5 | 18 | 1.39 |
5031-801-008-100 | CAT40xSFC8-100-CP | 168.249 | 100 | 36 | 54 | 8 | 21 | 27 | M6 | 35 | 1.22 |
5031-801-008-150 | CAT40xSFC8-150-CP | 218.249 | 150 | 36 | 104 | 8 | 21 | 27 | M6 | 35 | 1.39 |
5031-801-010-100 | CAT40xSFC10-100-CP | 168.249 | 100 | 42 | 56 | 10 | 24 | 32 | M8 | 65 | 1.28 |
5031-801-010-150 | CAT40xSFC10-150-CP | 218.249 | 150 | 42 | 106 | 10 | 24 | 32 | M8 | 65 | 1.53 |
5031-801-012-100 | CAT40xSFC12-100-CP | 168.249 | 100 | 47 | 59 | 12 | 24 | 33.3 | M10 | 110 | 1.27 |
5031-801-012-150 | CAT40xSFC12-150-CP | 218.249 | 150 | 47 | 104 | 12 | 24 | 32 | M10 | 110 | 1.52 |
5031-801-014-095 | CAT40xSFC14-95.3-CP | 163.549 | 95.3 | 47 | 59 | 14 | 27 | 34 | M10 | 150 | 1.27 |
5031-801-014-100 | CAT40xSFC14-100-CP | 168.249 | 100 | 47 | 59 | 14 | 27 | 34 | M10 | 150 | 1.31 |
5031-801-014-152 | CAT40xSFC14-152.4-CP | 220.649 | 152.4 | 47 | 112 | 14 | 27 | 34 | M10 | 150 | 1.62 |
5031-801-016-095 | CAT40xSFC16-95.3-CP | 163.549 | 95.3 | 50 | 54 | 16 | 27 | 34 | M12 | 200 | 1.25 |
5031-801-016-100 | CAT40xSFC16-100-CP | 168.249 | 100 | 50 | 59 | 16 | 27 | 34 | M12 | 200 | 1.28 |
5031-801-016-160 | CAT40xSFC16-160-CP | 228.249 | 160 | 50 | 119 | 16 | 27 | 34 | M12 | 200 | 1.64 |
5031-801-018-100 | CAT40xSFC18-100-CP | 168.249 | 100 | 50 | 63 | 18 | 33 | 42 | M12 | 250 | 1.43 |
5031-801-020-080 | CAT40xSFC20-80-CP | 148.249 | 80 | 52 | 42 | 20 | 33 | 39 | M16 | 320 | 1.20 |
5032-801-006-100 | CAT50xSFC6-100-CP | 201.6 | 100 | 36 | 62 | 6 | 21 | 27 | M5 | 18 | 3.21 |
5032-801-006-150 | CAT50xSFC6-150-CP | 251.6 | 150 | 36 | 101 | 6 | 21 | 27 | M5 | 18 | 3.42 |
5032-801-008-100 | CAT50xSFC8-100-CP | 201.6 | 100 | 36 | 60 | 8 | 21 | 27 | M6 | 35 | 3.21 |
5032-801-008-150 | CAT50xSFC8-150-CP | 251.6 | 150 | 36 | 101 | 8 | 21 | 27 | M6 | 35 | 3.41 |
5032-801-010-100 | CAT50xSFC10-100-CP | 201.6 | 100 | 42 | 60 | 10 | 24 | 32 | M8 | 65 | 3.27 |
5032-801-010-150 | CAT50xSFC10-150-CP | 251.6 | 150 | 42 | 91 | 10 | 24 | 32 | M8 | 65 | 3.74 |
5032-801-012-100 | CAT50xSFC12-100-CP | 201.6 | 100 | 47 | 62 | 12 | 24 | 32 | M10 | 110 | 3.26 |
5032-801-012-150 | CAT50xSFC12-150-CP | 251.6 | 150 | 47 | 91 | 12 | 24 | 32 | M10 | 110 | 3.71 |
5032-801-014-100 | CAT50xSFC14-100-CP | 201.6 | 100 | 47 | 62 | 14 | 27 | 34 | M10 | 150 | 3.31 |
5032-801-014-150 | CAT50xSFC14-150-CP | 251.6 | 150 | 47 | 92 | 14 | 27 | 34 | M10 | 150 | 3.79 |
5032-801-016-100 | CAT50xSFC16-100-CP | 201.6 | 100 | 50 | 62 | 16 | 27 | 34 | M12 | 200 | 3.29 |
5032-801-016-160 | CAT50xSFC16-160-CP | 261.6 | 160 | 50 | 102 | 16 | 27 | 34 | M12 | 200 | 3.83 |
5032-801-018-100 | CAT50xSFC18-100-CP | 201.6 | 100 | 50 | 62 | 18 | 33 | 42 | M12 | 250 | 3.45 |
5032-801-020-080 | CAT50xSFC20-80-CP | 181.6 | 80 | 52 | 35 | 20 | 33 | 42 | M16 | 320 | 3.26 |
5032-801-025-100 | CAT50xSFC25-100-CP | 201.6 | 100 | 58 | 62 | 25 | 44 | 53 | M20 | 500 | 3.69 |
5032-801-032-100 | CAT50xSFC32-100-CP | 201.6 | 100 | 58 | 62 | 32 | 44 | 53 | M20 | 550 | 3.55 |
INCHES | |||||||||||
5031-801-A08-350 | CAT40xSFC1/8"-3.5"-CP | 6.187 | 3.5 | 0.79 | 1.75 | 0.125 | 0.63 | 0.87 | M6 | 18 | 1.03 |
5031-801-A08-500 | CAT40xSFC1/8"-5"-CP | 7.687 | 5 | 0.79 | 3.56 | 0.125 | 0.63 | 0.87 | - | 18 | 1.11 |
5031-801-A12-350 | CAT40xSFC3/16"-3.5"-CP | 6.187 | 3.5 | 0.79 | 1.75 | 0.1875 | 0.63 | 0.87 | M6 | 18 | 1.04 |
5031-801-A12-500 | CAT40xSFC3/16"-5"-CP | 7.687 | 5 | 0.79 | 3.42 | 0.1875 | 0.63 | 0.87 | M6 | 18 | 1.10 |
5031-801-A16-300 | CAT40xSFC1/4"-3"-CP | 5.687 | 3 | 1.42 | 1.56 | 0.25 | 0.71 | 0.94 | M5 | 18 | 1.09 |
5031-801-A16-350 | CAT40xSFC1/4"-3.5"-CP | 6.187 | 3.5 | 1.42 | 2 | 0.25 | 0.71 | 0.94 | M5 | 18 | 1.12 |
5031-801-A16-500 | CAT40xSFC1/4"-5"-CP | 7.687 | 5 | 1.42 | 3.12 | 0.25 | 0.71 | 1.06 | M5 | 18 | 1.29 |
5031-801-A16-600 | CAT40xSFC1/4"-6"-CP | 8.687 | 6 | 1.42 | 4.44 | 0.25 | 0.71 | 1.37 | M5 | 18 | 1.49 |
5031-801-A20-350 | CAT40xSFC5/16"-3.5"-CP | 6.187 | 3.5 | 1.42 | 2.06 | 0.3125 | 0.79 | 1.06 | M6 | 35 | 1.14 |
5031-801-A20-500 | CAT40xSFC5/16"-5"-CP | 7.687 | 5 | 1.42 | 3.12 | 0.3125 | 0.79 | 1.06 | M6 | 35 | 1.30 |
5031-801-A24-300 | CAT40xSFC3/8"-3"-CP | 5.687 | 3 | 1.65 | 1.56 | 0.375 | 0.94 | 1.18 | M8 | 65 | 1.15 |
5031-801-A24-375 | CAT40xSFC3/8"-3.75"-CP | 6.437 | 3.75 | 1.65 | 2.31 | 0.375 | 0.94 | 1.26 | M8 | 65 | 1.24 |
5031-801-A24-500 | CAT40xSFC3/8"-5"-CP | 7.687 | 5 | 1.65 | 3.56 | 0.375 | 0.94 | 1.26 | M8 | 65 | 1.46 |
5031-801-A24-600 | CAT40xSFC3/8"-6"-CP | 8.687 | 6 | 1.65 | 4.44 | 0.375 | 0.94 | 1.37 | M8 | 65 | 1.66 |
5031-801-A32-300 | CAT40xSFC1/2"-3"-CP | 5.687 | 3 | 2.05 | 1.56 | 0.5 | 1.1 | 1.34 | M10 | 110 | 1.19 |
5031-801-A32-375 | CAT40xSFC1/2"-3.75"-CP | 6.437 | 3.75 | 2.05 | 2.31 | 0.5 | 1.1 | 1.34 | M10 | 110 | 1.30 |
5031-801-A32-500 | CAT40xSFC1/2"-5"-CP | 7.687 | 5 | 2.05 | 3.5 | 0.5 | 1.1 | 1.34 | M10 | 110 | 1.52 |
5031-801-A32-600 | CAT40xSFC1/2"-6"-CP | 8.687 | 6 | 2.05 | 4.49 | 0.5 | 1.1 | 1.34 | M10 | 110 | 1.68 |
5031-801-A40-375 | CAT40xSFC5/8"-3.75"-CP | 6.437 | 3.75 | 1.97 | 2.17 | 0.625 | 1.06 | 1.34 | M12 | 200 | 1.27 |
5031-801-A48-300 | CAT40xSFC3/4"-3"-CP | 5.687 | 3 | 2.04 | 1.62 | 0.75 | 1.42 | 1.65 | M16 | 320 | 1.24 |
5031-801-A48-400 | CAT40xSFC3/4"-4"-CP | 6.687 | 4 | 2.04 | 2.62 | 0.75 | 1.42 | 1.65 | M16 | 320 | 1.49 |
5031-801-A48-500 | CAT40xSFC3/4"-5"-CP | 7.687 | 5 | 2.04 | 3.44 | 0.75 | 1.26 | 1.37 | M16 | 320 | 1.48 |
5031-801-A48-600 | CAT40xSFC3/4"-6"-CP | 8.687 | 6 | 2.04 | 4.44 | 0.75 | 1.26 | 1.37 | M16 | 320 | 1.64 |
5031-801-A64-300 | CAT40xSFC1"-3"-CP | 5.687 | 3 | 2.09 | 1.62 | 1 | 1.81 | 2.04 | M20 | 500 | 1.34 |
5031-801-A64-400 | CAT40xSFC1"-4"-CP | 6.687 | 4 | 2.28 | 2.62 | 1 | 1.81 | 2.09 | M20 | 500 | 1.73 |
5031-801-A64-600 | CAT40xSFC1"-6"-CP | 8.687 | 6 | 2.28 | 4.54 | 1 | 1.81 | 2.09 | M20 | 500 | 2.51 |
5031-801-A72-400 | CAT40xSFC1-1/4"-4"-CP | 6.687 | 4 | 2.28 | 2.62 | 1.25 | 1.81 | 2.09 | M20 | 550 | 1.60 |
5032-801-A12-354 | CAT50xSFC3/16"-3.54"-CP | 7.54 | 3.54 | 0.79 | 1.98 | 0.1875 | 0.63 | 0.87 | M6 | 18 | 3.04 |
5032-801-A16-354 | CAT50xSFC1/4"-3.54"-CP | 7.54 | 3.54 | 1.42 | 2.04 | 0.25 | 0.71 | 1.03 | M5 | 18 | 3.13 |
5032-801-A20-354 | CAT50xSFC5/16"-3.54"-CP | 7.54 | 3.54 | 1.42 | 2.04 | 0.3125 | 0.79 | 1.06 | M6 | 35 | 3.15 |
5032-801-A24-394 | CAT50xSFC3/8"-3.94"-CP | 7.94 | 3.94 | 1.65 | 2.36 | 0.375 | 0.94 | 1.26 | M8 | 65 | 3.27 |
5032-801-A32-394 | CAT50xSFC1/2"-3.94"-CP | 7.94 | 3.94 | 1.85 | 2.36 | 0.5 | 1.1 | 1.34 | M10 | 110 | 3.33 |
5032-801-A40-394 | CAT50xSFC5/8"-3.94"-CP | 7.94 | 3.94 | 1.97 | 2.36 | 0.625 | 1.06 | 1.34 | M12 | 200 | 3.29 |
5032-801-A48-413 | CAT50xSFC3/4"-4.13"-CP | 8.13 | 4.13 | 2.04 | 2.56 | 0.75 | 1.42 | 1.65 | M16 | 320 | 3.52 |
5032-801-A48-600 | CAT50xSFC3/4"-6"-CP | 10 | 6 | 2.04 | 4.42 | 0.75 | 1.42 | 1.65 | M16 | 320 | 4.03 |
5032-801-A64-413 | CAT50xSFC1"-4.13"-CP | 8.13 | 4.13 | 2.28 | 2.71 | 1 | 1.81 | 2.09 | M20 | 500 | 3.81 |
5032-801-A64-600 | CAT50xSFC1"-6"-CP | 10 | 6 | 2.28 | 4.12 | 1 | 1.81 | 2.09 | M20 | 500 | 4.56 |
5032-801-A72-413 | CAT50xSFC1-1/4"-4.13"-CP | 8.13 | 4.13 | 2.28 | 2.63 | 1.25 | 1.81 | 2.09 | M20 | 550 | 3.68 |
5032-801-A72-472 | CAT50xSFC1-1/4"-4.72"-CP | 8.72 | 4.72 | 2.28 | 3.22 | 1.25 | 1.81 | 2.09 | M20 | 550 | 3.90 |
5032-801-A72-600 | CAT50xSFC1-1/4"-6"-CP | 10 | 6 | 2.28 | 4.12 | 1.25 | 1.81 | 2.09 | M20 | 550 | 4.43 |
DAT/SFC SHRINK FIT CHUCK with CP coolant hole
MODEL NO. | TYPE | L | l1 | l2 | l3 | d1 | d2 | d3 | T | TORQUE N.m min | WEIGHT (KGS) |
---|---|---|---|---|---|---|---|---|---|---|---|
5050-801-006-060 | DAT30xSFC6-60-CP | 107.8 | 60 | 36 | 38.1 | 6 | 23 | 29 | M5 | 18 | 0.53 |
5050-801-006-080 | DAT30xSFC6-80-CP | 127.8 | 80 | 36 | 55 | 6 | 21 | 27 | M5 | 18 | 0.58 |
5050-801-008-060 | DAT30xSFC8-60-CP | 107.8 | 60 | 36 | 38.1 | 8 | 23 | 29 | M6 | 35 | 0.52 |
5050-801-008-080 | DAT30xSFC8-80-CP | 127.8 | 80 | 36 | 55 | 8 | 21 | 27 | M6 | 35 | 0.58 |
5050-801-010-060 | DAT30xSFC10-60-CP | 107.8 | 60 | 42 | 38.1 | 10 | 27 | 29 | M8 | 65 | 0.56 |
5050-801-010-080 | DAT30xSFC10-80-CP | 127.8 | 80 | 42 | 55 | 10 | 24 | 32 | M8 | 65 | 0.64 |
5050-801-012-060 | DAT30xSFC12-60-CP | 107.8 | 60 | 47 | 38.1 | 12 | 27 | 33 | M10 | 110 | 0.56 |
5050-801-012-080 | DAT30xSFC12-80-CP | 127.8 | 80 | 47 | 55 | 12 | 24 | 32 | M10 | 110 | 0.62 |
5050-801-016-065 | DAT30xSFC16-65-CP | 112.8 | 65 | 50 | 44.9 | 16 | 30 | 37 | M12 | 200 | 0.64 |
5050-801-016-080 | DAT30xSFC16-80-CP | 127.8 | 80 | 50 | 55 | 16 | 27 | 34 | M12 | 200 | 0.64 |
5050-801-020-070 | DAT30xSFC20-70-CP | 117.8 | 70 | 52 | 50 | 20 | 35.5 | 40.5 | M16 | 320 | 0.70 |
5051-801-006-080 | DAT40xSFC6-80-CP | 148.4 | 80 | 36 | 55.9 | 6 | 21 | 27 | M5 | 18 | 1.03 |
5051-801-006-130 | DAT40xSFC6-130-CP | 198.4 | 130 | 36 | 105.9 | 6 | 21 | 27 | M5 | 18 | 1.25 |
5051-801-006-160 | DAT40xSFC6-160-CP | 228.4 | 160 | 36 | 105.9 | 6 | 21 | 27 | M5 | 18 | 1.38 |
5051-801-006-200 | DAT40xSFC6-200-CP | 268.4 | 200 | 36 | 146 | 6 | 21 | 27 | M5 | 18 | 1.56 |
5051-801-008-080 | DAT40xSFC8-80-CP | 148.4 | 80 | 36 | 55.9 | 8 | 21 | 27 | M6 | 35 | 0.93 |
5051-801-008-130 | DAT40xSFC8-130-CP | 198.4 | 130 | 36 | 105.9 | 8 | 21 | 27 | M6 | 35 | 1.24 |
5051-801-008-160 | DAT40xSFC8-160-CP | 228.4 | 160 | 36 | 105.9 | 8 | 21 | 27 | M6 | 35 | 1.37 |
5051-801-008-200 | DAT40xSFC8-200-CP | 268.4 | 200 | 36 | 146 | 8 | 21 | 27 | M6 | 35 | 1.55 |
5051-801-010-080 | DAT40xSFC10-80-CP | 148.4 | 80 | 42 | 55.9 | 10 | 24 | 32 | M8 | 65 | 1.21 |
5051-801-010-130 | DAT40xSFC10-130-CP | 198.4 | 130 | 42 | 105.9 | 10 | 24 | 32 | M8 | 65 | 1.52 |
5051-801-010-160 | DAT40xSFC10-160-CP | 228.4 | 160 | 42 | 105.9 | 10 | 24 | 32 | M8 | 65 | 1.65 |
5051-801-010-200 | DAT40xSFC10-200-CP | 268.4 | 200 | 42 | 146 | 10 | 24 | 32 | M8 | 65 | 1.83 |
5051-801-012-080 | DAT40xSFC12-80-CP | 148.4 | 80 | 47 | 55.9 | 12 | 24 | 32 | M10 | 110 | 1.01 |
5051-801-012-130 | DAT40xSFC12-130-CP | 198.4 | 130 | 47 | 105.9 | 12 | 24 | 32 | M10 | 110 | 1.50 |
5051-801-012-160 | DAT40xSFC12-160-CP | 228.4 | 160 | 47 | 105.9 | 12 | 24 | 32 | M10 | 110 | 1.45 |
5051-801-012-200 | DAT40xSFC12-200-CP | 268.4 | 200 | 47 | 146 | 12 | 24 | 32 | M10 | 110 | 1.81 |
5051-801-014-080 | DAT40xSFC14-80-CP | 148.4 | 80 | 47 | 55.9 | 14 | 27 | 34 | M10 | 150 | 0.89 |
5051-801-014-130 | DAT40xSFC14-130-CP | 198.4 | 130 | 47 | 105.9 | 14 | 27 | 34 | M10 | 150 | 1.38 |
5051-801-014-160 | DAT40xSFC14-160-CP | 228.4 | 160 | 47 | 105.9 | 14 | 27 | 34 | M10 | 150 | 1.33 |
5051-801-014-200 | DAT40xSFC14-200-CP | 268.4 | 200 | 47 | 146 | 14 | 27 | 34 | M10 | 150 | 1.93 |
5051-801-016-080 | DAT40xSFC16-80-CP | 148.4 | 80 | 50 | 55.9 | 16 | 27 | 34 | M12 | 200 | 1.09 |
5051-801-016-130 | DAT40xSFC16-130-CP | 198.4 | 130 | 50 | 105.9 | 16 | 27 | 34 | M12 | 200 | 1.44 |
5051-801-016-160 | DAT40xSFC16-160-CP | 228.4 | 160 | 50 | 105.9 | 16 | 27 | 34 | M12 | 200 | 1.65 |
5051-801-016-200 | DAT40xSFC16-200-CP | 268.4 | 200 | 50 | 146 | 16 | 27 | 34 | M12 | 200 | 1.93 |
5051-801-018-080 | DAT40xSFC18-80-CP | 148.4 | 80 | 50 | 57.9 | 18 | 33 | 42 | M12 | 250 | 1.23 |
5051-801-018-130 | DAT40xSFC18-130-CP | 198.4 | 130 | 50 | 107.9 | 18 | 33 | 42 | M12 | 250 | 1.76 |
5051-801-018-160 | DAT40xSFC18-160-CP | 228.4 | 160 | 50 | 107.9 | 18 | 33 | 42 | M12 | 250 | 2.08 |
5051-801-018-200 | DAT40xSFC18-200-CP | 268.4 | 200 | 50 | 147.9 | 18 | 33 | 42 | M12 | 250 | 2.51 |
5051-801-020-080 | DAT40xSFC20-80-CP | 148.4 | 80 | 52 | 57.9 | 20 | 33 | 42 | M16 | 320 | 1.21 |
5051-801-020-130 | DAT40xSFC20-130-CP | 198.4 | 130 | 52 | 107.9 | 20 | 33 | 42 | M16 | 320 | 1.73 |
5051-801-020-160 | DAT40xSFC20-160-CP | 228.4 | 160 | 52 | 107.9 | 20 | 33 | 42 | M16 | 320 | 2.06 |
5051-801-020-200 | DAT40xSFC20-200-CP | 268.4 | 200 | 52 | 147.9 | 20 | 33 | 42 | M16 | 320 | 2.48 |
5051-801-025-100 | DAT40xSFC25-100-CP | 168.4 | 100 | 58 | 80.9 | 25 | 44 | 53 | M20 | 500 | 1.79 |
5051-801-025-130 | DAT40xSFC25-130-CP | 198.4 | 130 | 58 | 110.9 | 25 | 44 | 53 | M20 | 500 | 2.31 |
5051-801-025-160 | DAT40xSFC25-160-CP | 228.4 | 160 | 58 | 140.9 | 25 | 44 | 53 | M20 | 500 | 2.81 |
5051-801-025-200 | DAT40xSFC25-200-CP | 268.4 | 200 | 58 | 180.9 | 25 | 44 | 53 | M20 | 500 | 3.49 |
5051-801-032-100 | DAT40xSFC32-100-CP | 168.4 | 100 | 58 | 80.9 | 32 | 44 | 53 | M20 | 550 | 1.65 |
5052-801-006-080 | DAT50xSFC6-80-CP | 181.75 | 80 | 36 | 55.9 | 6 | 21 | 27 | M5 | 18 | 2.81 |
5052-801-006-130 | DAT50xSFC6-130-CP | 231.75 | 130 | 36 | 100.9 | 6 | 21 | 27 | M5 | 18 | 3.03 |
5052-801-006-160 | DAT50xSFC6-160-CP | 261.75 | 160 | 36 | 100.9 | 6 | 21 | 27 | M5 | 18 | 3.17 |
5052-801-006-200 | DAT50xSFC6-200-CP | 301.75 | 200 | 36 | 141 | 6 | 21 | 27 | M5 | 18 | 3.34 |
5052-801-008-080 | DAT50xSFC8-80-CP | 181.75 | 80 | 36 | 55.9 | 8 | 21 | 27 | M6 | 35 | 2.80 |
5052-801-008-130 | DAT50xSFC8-130-CP | 231.75 | 130 | 36 | 100.9 | 8 | 21 | 27 | M6 | 35 | 3.02 |
5052-801-008-160 | DAT50xSFC8-160-CP | 261.75 | 160 | 36 | 100.9 | 8 | 21 | 27 | M6 | 35 | 3.16 |
5052-801-008-200 | DAT50xSFC8-200-CP | 301.75 | 200 | 36 | 141 | 8 | 21 | 27 | M6 | 35 | 3.33 |
5052-801-010-080 | DAT50xSFC10-80-CP | 181.75 | 80 | 42 | 55.9 | 10 | 24 | 32 | M8 | 65 | 2.53 |
5052-801-010-130 | DAT50xSFC10-130-CP | 231.75 | 130 | 42 | 100.9 | 10 | 24 | 32 | M8 | 65 | 2.75 |
5052-801-010-160 | DAT50xSFC10-160-CP | 261.75 | 160 | 42 | 100.9 | 10 | 24 | 32 | M8 | 65 | 2.89 |
5052-801-010-200 | DAT50xSFC10-200-CP | 301.75 | 200 | 42 | 141 | 10 | 24 | 32 | M8 | 65 | 3.60 |
5052-801-012-080 | DAT50xSFC12-80-CP | 181.75 | 80 | 47 | 55.9 | 12 | 24 | 32 | M10 | 110 | 2.52 |
5052-801-012-130 | DAT50xSFC12-130-CP | 231.75 | 130 | 47 | 100.9 | 12 | 24 | 32 | M10 | 110 | 2.74 |
5052-801-012-160 | DAT50xSFC12-160-CP | 261.75 | 160 | 47 | 100.9 | 12 | 24 | 32 | M10 | 110 | 2.88 |
5052-801-012-200 | DAT50xSFC12-200-CP | 301.75 | 200 | 47 | 141 | 12 | 24 | 32 | M10 | 110 | 3.59 |
5052-801-014-080 | DAT50xSFC14-80-CP | 181.75 | 80 | 47 | 55.9 | 14 | 27 | 34 | M10 | 150 | 2.38 |
5052-801-014-130 | DAT50xSFC14-130-CP | 231.75 | 130 | 47 | 100.9 | 14 | 27 | 34 | M10 | 150 | 2.60 |
5052-801-014-160 | DAT50xSFC14-160-CP | 261.75 | 160 | 47 | 100.9 | 14 | 27 | 34 | M10 | 150 | 2.74 |
5052-801-014-200 | DAT50xSFC14-200-CP | 301.75 | 200 | 47 | 141 | 14 | 27 | 34 | M10 | 150 | 3.73 |
5052-801-016-080 | DAT50xSFC16-80-CP | 181.75 | 80 | 50 | 55.9 | 16 | 27 | 34 | M12 | 200 | 2.87 |
5052-801-016-130 | DAT50xSFC16-130-CP | 231.75 | 130 | 50 | 100.9 | 16 | 27 | 34 | M12 | 200 | 3.22 |
5052-801-016-160 | DAT50xSFC16-160-CP | 261.75 | 160 | 50 | 100.9 | 16 | 27 | 34 | M12 | 200 | 3.43 |
5052-801-016-200 | DAT50xSFC16-200-CP | 301.75 | 200 | 50 | 141 | 16 | 27 | 34 | M12 | 200 | 3.71 |
5052-801-018-080 | DAT50xSFC18-80-CP | 181.75 | 80 | 50 | 57.9 | 18 | 33 | 42 | M12 | 250 | 2.99 |
5052-801-018-130 | DAT50xSFC18-130-CP | 231.75 | 130 | 50 | 100.9 | 18 | 33 | 42 | M12 | 250 | 3.55 |
5052-801-018-160 | DAT50xSFC18-160-CP | 261.75 | 160 | 50 | 100.9 | 18 | 33 | 42 | M12 | 250 | 3.87 |
5052-801-018-200 | DAT50xSFC18-200-CP | 301.75 | 200 | 50 | 141 | 18 | 33 | 42 | M12 | 250 | 4.30 |
5052-801-020-080 | DAT50xSFC20-80-CP | 181.75 | 80 | 52 | 57.9 | 20 | 33 | 42 | M16 | 320 | 2.91 |
5052-801-020-130 | DAT50xSFC20-130-CP | 231.75 | 130 | 52 | 100.9 | 20 | 33 | 42 | M16 | 320 | 3.25 |
5052-801-020-160 | DAT50xSFC20-160-CP | 261.75 | 160 | 52 | 100.9 | 20 | 33 | 42 | M16 | 320 | 3.57 |
5052-801-020-200 | DAT50xSFC20-200-CP | 301.75 | 200 | 52 | 141 | 20 | 33 | 42 | M16 | 320 | 4.27 |
5052-801-025-100 | DAT50xSFC25-100-CP | 201.75 | 100 | 58 | 70.9 | 25 | 44 | 53 | M20 | 500 | 3.59 |
5052-801-025-130 | DAT50xSFC25-130-CP | 231.75 | 130 | 58 | 100.9 | 25 | 44 | 53 | M20 | 500 | 4.10 |
5052-801-025-160 | DAT50xSFC25-160-CP | 261.75 | 160 | 58 | 100.9 | 25 | 44 | 53 | M20 | 500 | 4.61 |
5052-801-025-200 | DAT50xSFC25-200-CP | 301.75 | 200 | 58 | 141 | 25 | 44 | 53 | M20 | 500 | 5.29 |
5052-801-032-100 | DAT50xSFC32-100-CP | 201.75 | 100 | 58 | 70.9 | 32 | 44 | 53 | M20 | 550 | 3.45 |
DualDRIVE+ SBT/SFC SHRINK FIT CHUCK with CP coolant hole
MODEL NO. | TYPE | L | l1 | l2 | l3 | d1 | d2 | d3 | T | TORQUE N.m min | WEIGHT (KGS) |
---|---|---|---|---|---|---|---|---|---|---|---|
5025-801-006-060 | SBT30xSFC6-60-CP | 108.4 | 60 | 36 | 33 | 6 | 23 | - | M5 | 18 | 0.70 |
5025-801-006-080 | SBT30xSFC6-80-CP | 128.4 | 80 | 36 | 53 | 6 | 21 | 27 | M5 | 18 | 0.86 |
5025-801-008-060 | SBT30xSFC8-60-CP | 108.4 | 60 | 36 | 33 | 8 | 23 | - | M6 | 35 | 0.52 |
5025-801-008-080 | SBT30xSFC8-80-CP | 128.4 | 80 | 36 | 53 | 8 | 21 | 27 | M6 | 35 | 0.58 |
5025-801-010-060 | SBT30xSFC10-60-CP | 108.4 | 60 | 42 | 35 | 10 | 27 | - | M8 | 65 | 0.52 |
5025-801-010-080 | SBT30xSFC10-80-CP | 128.4 | 80 | 42 | 53 | 10 | 24 | 32 | M8 | 65 | 0.64 |
5025-801-012-060 | SBT30xSFC12-60-CP | 108.4 | 60 | 47 | 36 | 12 | 27 | - | M10 | 110 | 0.52 |
5025-801-012-080 | SBT30xSFC12-80-CP | 128.4 | 80 | 47 | 53 | 12 | 24 | 32 | M10 | 110 | 0.62 |
5025-801-014-065 | SBT30xSFC14-65-CP | 113.4 | 65 | 47 | 41 | 14 | 30 | - | M10 | 150 | 0.57 |
5025-801-014-080 | SBT30xSFC14-80-CP | 128.4 | 80 | 47 | 55 | 14 | 27 | 34 | M10 | 150 | 0.69 |
5025-801-016-065 | SBT30xSFC16-65-CP | 113.4 | 65 | 50 | 41 | 16 | 30 | - | M12 | 200 | 0.55 |
5025-801-016-080 | SBT30xSFC16-80-CP | 128.4 | 80 | 50 | 55 | 16 | 27 | 34 | M12 | 200 | 0.65 |
5025-801-018-070 | SBT30xSFC18-70-CP | 118.4 | 70 | 50 | 46 | 18 | 35.5 | 40.5 | M12 | 250 | 0.72 |
5025-801-018-090 | SBT30xSFC18-90-CP | 138.4 | 90 | 50 | 66 | 18 | 33 | 40.5 | M12 | 250 | 0.87 |
5025-801-020-070 | SBT30xSFC20-70-CP | 118.4 | 70 | 52 | 46 | 20 | 35.5 | 40.5 | M16 | 320 | 0.70 |
5025-801-020-090 | SBT30xSFC20-90-CP | 138.4 | 90 | 52 | 66 | 20 | 33 | 40.5 | M16 | 320 | 0.81 |
5026-801-006-090 | SBT40xSFC6-90-CP | 155.4 | 90 | 36 | 58 | 6 | 21 | 27 | M5 | 18 | 1.23 |
5026-801-006-130 | SBT40xSFC6-130-CP | 195.4 | 130 | 36 | 93 | 6 | 21 | 27 | M5 | 18 | 1.41 |
5026-801-006-160 | SBT40xSFC6-160-CP | 225.4 | 160 | 36 | 123 | 6 | 21 | 27 | M5 | 18 | 1.54 |
5026-801-006-200 | SBT40xSFC6-200-CP | 265.4 | 200 | 36 | 163 | 6 | 21 | 27 | M5 | 18 | 1.72 |
5026-801-008-090 | SBT40xSFC8-90-CP | 155.4 | 90 | 36 | 58 | 8 | 21 | 27 | M6 | 35 | 1.23 |
5026-801-008-130 | SBT40xSFC8-130-CP | 195.4 | 130 | 36 | 93 | 8 | 21 | 27 | M6 | 35 | 1.41 |
5026-801-008-160 | SBT40xSFC8-160-CP | 225.4 | 160 | 36 | 123 | 8 | 21 | 27 | M6 | 35 | 1.54 |
5026-801-008-200 | SBT40xSFC8-200-CP | 265.4 | 200 | 36 | 163 | 8 | 21 | 27 | M6 | 35 | 1.72 |
5026-801-010-090 | SBT40xSFC10-90-CP | 155.4 | 90 | 52 | 58 | 10 | 24 | 32 | M8 | 65 | 1.48 |
5026-801-010-130 | SBT40xSFC10-130-CP | 195.4 | 130 | 52 | 93 | 10 | 24 | 32 | M8 | 65 | 1.66 |
5026-801-010-160 | SBT40xSFC10-160-CP | 225.4 | 160 | 52 | 123 | 10 | 24 | 32 | M8 | 65 | 1.79 |
5026-801-010-200 | SBT40xSFC10-200-CP | 265.4 | 200 | 52 | 163 | 10 | 24 | 32 | M8 | 65 | 1.97 |
5026-801-012-090 | SBT40xSFC12-90-CP | 155.4 | 90 | 52 | 58 | 12 | 24 | 32 | M10 | 110 | 1.68 |
5026-801-012-130 | SBT40xSFC12-130-CP | 195.4 | 130 | 52 | 93 | 12 | 24 | 32 | M10 | 110 | 1.86 |
5026-801-012-160 | SBT40xSFC12-160-CP | 225.4 | 160 | 52 | 123 | 12 | 24 | 32 | M10 | 110 | 1.99 |
5026-801-012-200 | SBT40xSFC12-200-CP | 265.4 | 200 | 52 | 163 | 12 | 24 | 32 | M10 | 110 | 2.17 |
5026-801-014-090 | SBT40xSFC14-90-CP | 155.4 | 90 | 52 | 53 | 14 | 27 | 34 | M10 | 150 | 1.76 |
5026-801-014-130 | SBT40xSFC14-130-CP | 195.4 | 130 | 52 | 93 | 14 | 27 | 34 | M10 | 150 | 1.94 |
5026-801-014-160 | SBT40xSFC14-160-CP | 225.4 | 160 | 52 | 123 | 14 | 27 | 34 | M10 | 150 | 2.07 |
5026-801-014-200 | SBT40xSFC14-200-CP | 265.4 | 200 | 52 | 163 | 14 | 27 | 34 | M10 | 150 | 2.25 |
5026-801-016-090 | SBT40xSFC16-90-CP | 155.4 | 90 | 52 | 58 | 16 | 27 | 34 | M12 | 200 | 1.57 |
5026-801-016-130 | SBT40xSFC16-130-CP | 195.4 | 130 | 52 | 93 | 16 | 27 | 34 | M12 | 200 | 1.75 |
5026-801-016-160 | SBT40xSFC16-160-CP | 225.4 | 160 | 52 | 123 | 16 | 27 | 34 | M12 | 200 | 1.91 |
5026-801-016-200 | SBT40xSFC16-200-CP | 265.4 | 200 | 52 | 163 | 16 | 27 | 34 | M12 | 200 | 2.06 |
5026-801-018-090 | SBT40xSFC18-90-CP | 155.4 | 90 | 52 | 58 | 18 | 33 | 42 | M12 | 250 | 2.12 |
5026-801-018-130 | SBT40xSFC18-130-CP | 195.4 | 130 | 52 | 98 | 18 | 33 | 42 | M12 | 250 | 2.31 |
5026-801-018-160 | SBT40xSFC18-160-CP | 225.4 | 160 | 52 | 128 | 18 | 33 | 42 | M12 | 250 | 2.46 |
5026-801-018-200 | SBT40xSFC18-200-CP | 265.4 | 200 | 52 | 168 | 18 | 33 | 42 | M12 | 250 | 2.61 |
5026-801-019-090 | SBT40xSFC19-90-CP | 155.4 | 90 | 60 | 61.5 | 19 | 33 | 42 | M16 | 320 | 1.33 |
5026-801-020-090 | SBT40xSFC20-90-CP | 155.4 | 90 | 52 | 58 | 20 | 33 | 42 | M16 | 320 | 2.09 |
5026-801-020-130 | SBT40xSFC20-130-CP | 195.4 | 130 | 52 | 98 | 20 | 33 | 42 | M16 | 320 | 2.28 |
5026-801-020-160 | SBT40xSFC20-160-CP | 225.4 | 160 | 52 | 128 | 20 | 33 | 42 | M16 | 320 | 2.43 |
5026-801-020-200 | SBT40xSFC20-200-CP | 265.4 | 200 | 52 | 168 | 20 | 33 | 42 | M16 | 320 | 2.57 |
5026-801-024-090 | SBT40xSFC24-90-CP | 155.4 | 90 | 72 | 61.5 | 24 | 44 | 53 | M20 | 500 | 1.57 |
5026-801-025-100 | SBT40xSFC25-100-CP | 165.4 | 100 | 58 | 71 | 25 | 44 | 53 | M20 | 500 | 1.83 |
5026-801-025-130 | SBT40xSFC25-130-CP | 195.4 | 130 | 58 | 101 | 25 | 44 | 53 | M20 | 500 | 2.34 |
5026-801-025-160 | SBT40xSFC25-160-CP | 225.4 | 160 | 58 | 131 | 25 | 44 | 53 | M20 | 500 | 2.85 |
5026-801-025-200 | SBT40xSFC25-200-CP | 265.4 | 200 | 58 | 171 | 25 | 44 | 53 | M20 | 500 | 3.53 |
5026-801-032-100 | SBT40xSFC32-100-CP | 165.4 | 100 | 58 | 71 | 32 | 44 | 53 | M20 | 550 | 1.69 |
5026-801-032-130 | SBT40xSFC32-130-CP | 195.4 | 130 | 58 | 101 | 32 | 44 | 53 | M20 | 550 | 2.21 |
5026-801-032-160 | SBT40xSFC32-160-CP | 225.4 | 160 | 58 | 131 | 32 | 44 | 53 | M20 | 550 | 2.71 |
5026-801-032-200 | SBT40xSFC32-200-CP | 265.4 | 200 | 58 | 171 | 32 | 44 | 53 | M20 | 550 | 3.39 |
5027-801-006-100 | SBT50xSFC6-100-CP | 201.8 | 100 | 36 | 52 | 6 | 21 | 27 | M5 | 18 | 3.75 |
5027-801-006-130 | SBT50xSFC6-130-CP | 231.8 | 130 | 36 | 82 | 6 | 21 | 27 | M5 | 18 | 3.94 |
5027-801-006-160 | SBT50xSFC6-160-CP | 261.8 | 160 | 36 | 82 | 6 | 21 | 27 | M5 | 18 | 4.07 |
5027-801-006-200 | SBT50xSFC6-200-CP | 301.8 | 200 | 36 | 122 | 6 | 21 | 27 | M5 | 18 | 4.24 |
5027-801-008-100 | SBT50xSFC8-100-CP | 201.8 | 100 | 36 | 52 | 8 | 21 | 27 | M6 | 35 | 3.74 |
5027-801-008-130 | SBT50xSFC8-130-CP | 231.8 | 130 | 36 | 82 | 8 | 21 | 27 | M6 | 35 | 3.93 |
5027-801-008-160 | SBT50xSFC8-160-CP | 261.8 | 160 | 36 | 82 | 8 | 21 | 27 | M6 | 35 | 4.06 |
5027-801-008-200 | SBT50xSFC8-200-CP | 301.8 | 200 | 36 | 122 | 8 | 21 | 27 | M6 | 35 | 4.23 |
5027-801-010-100 | SBT50xSFC10-100-CP | 201.8 | 100 | 42 | 52 | 10 | 24 | 32 | M8 | 65 | 3.82 |
5027-801-010-130 | SBT50xSFC10-130-CP | 231.8 | 130 | 42 | 82 | 10 | 24 | 32 | M8 | 65 | 4.05 |
5027-801-010-160 | SBT50xSFC10-160-CP | 261.8 | 160 | 42 | 82 | 10 | 24 | 32 | M8 | 65 | 4.18 |
5027-801-010-200 | SBT50xSFC10-200-CP | 301.8 | 200 | 42 | 122 | 10 | 24 | 32 | M8 | 65 | 4.35 |
5027-801-012-100 | SBT50xSFC12-100-CP | 201.8 | 100 | 47 | 52 | 12 | 24 | 32 | M10 | 110 | 3.81 |
5027-801-012-130 | SBT50xSFC12-130-CP | 231.8 | 130 | 47 | 82 | 12 | 24 | 32 | M10 | 110 | 4.04 |
5027-801-012-160 | SBT50xSFC12-160-CP | 261.8 | 160 | 47 | 82 | 12 | 24 | 32 | M10 | 110 | 4.17 |
5027-801-012-200 | SBT50xSFC12-200-CP | 301.8 | 200 | 47 | 122 | 12 | 24 | 32 | M10 | 110 | 4.34 |
5027-801-014-100 | SBT50xSFC14-100-CP | 201.8 | 100 | 47 | 52 | 14 | 27 | 34 | M10 | 150 | 3.88 |
5027-801-014-130 | SBT50xSFC14-130-CP | 231.8 | 130 | 47 | 82 | 14 | 27 | 34 | M10 | 150 | 4.11 |
5027-801-014-160 | SBT50xSFC14-160-CP | 261.8 | 160 | 47 | 82 | 14 | 27 | 34 | M10 | 150 | 4.24 |
5027-801-014-200 | SBT50xSFC14-200-CP | 301.8 | 200 | 47 | 122 | 14 | 27 | 34 | M10 | 150 | 4.41 |
5027-801-016-100 | SBT50xSFC16-100-CP | 201.8 | 100 | 50 | 52 | 16 | 27 | 34 | M12 | 200 | 3.90 |
5027-801-016-130 | SBT50xSFC16-130-CP | 231.8 | 130 | 50 | 82 | 16 | 27 | 34 | M12 | 200 | 4.09 |
5027-801-016-160 | SBT50xSFC16-160-CP | 261.8 | 160 | 50 | 82 | 16 | 27 | 34 | M12 | 200 | 4.26 |
5027-801-016-200 | SBT50xSFC16-200-CP | 301.8 | 200 | 50 | 122 | 16 | 27 | 34 | M12 | 200 | 4.43 |
5027-801-018-100 | SBT50xSFC18-100-CP | 201.8 | 100 | 50 | 52 | 18 | 33 | 42 | M12 | 250 | 4.15 |
5027-801-018-130 | SBT50xSFC18-130-CP | 231.8 | 130 | 50 | 82 | 18 | 33 | 42 | M12 | 250 | 4.34 |
5027-801-018-160 | SBT50xSFC18-160-CP | 261.8 | 160 | 50 | 82 | 18 | 33 | 42 | M12 | 250 | 4.51 |
5027-801-018-200 | SBT50xSFC18-200-CP | 301.8 | 200 | 50 | 122 | 18 | 33 | 42 | M12 | 250 | 4.68 |
5027-801-019-100 | SBT50xSFC19-100-CP | 201.8 | 100 | 60 | 60 | 19 | 33 | 42 | M16 | 320 | 3.98 |
5027-801-020-100 | SBT50xSFC20-100-CP | 201.8 | 100 | 52 | 52 | 20 | 33 | 42 | M16 | 320 | 4.07 |
5027-801-020-130 | SBT50xSFC20-130-CP | 231.8 | 130 | 52 | 82 | 20 | 33 | 42 | M16 | 320 | 4.32 |
5027-801-020-160 | SBT50xSFC20-160-CP | 261.8 | 160 | 52 | 82 | 20 | 33 | 42 | M16 | 320 | 4.53 |
5027-801-020-200 | SBT50xSFC20-200-CP | 301.8 | 200 | 52 | 122 | 20 | 33 | 42 | M16 | 320 | 4.70 |
5027-801-024-100 | SBT50xSFC24-100-CP | 201.8 | 100 | 72 | 60 | 24 | 44 | 53 | M20 | 500 | 4.19 |
5027-801-025-100 | SBT50xSFC25-100-CP | 201.8 | 100 | 58 | 52 | 25 | 44 | 53 | M20 | 500 | 4.53 |
5027-801-025-130 | SBT50xSFC25-130-CP | 231.8 | 130 | 58 | 82 | 25 | 44 | 53 | M20 | 500 | 4.78 |
5027-801-025-160 | SBT50xSFC25-160-CP | 261.8 | 160 | 58 | 82 | 25 | 44 | 53 | M20 | 500 | 4.99 |
5027-801-025-200 | SBT50xSFC25-200-CP | 301.8 | 200 | 58 | 122 | 25 | 44 | 53 | M20 | 500 | 5.16 |
5027-801-032-100 | SBT50xSFC32-100-CP | 201.8 | 100 | 58 | 52 | 32 | 44 | 53 | M20 | 550 | 4.38 |
5027-801-032-130 | SBT50xSFC32-130-CP | 231.8 | 130 | 58 | 82 | 32 | 44 | 53 | M20 | 550 | 4.63 |
5027-801-032-160 | SBT50xSFC32-160-CP | 261.8 | 160 | 58 | 82 | 32 | 44 | 53 | M20 | 550 | 4.84 |
5027-801-032-200 | SBT50xSFC32-200-CP | 301.8 | 200 | 58 | 122 | 32 | 44 | 53 | M20 | 550 | 5.01 |
DualDRIVE+ SBT/SFCT SHRINK FIT CHUCK with CP coolant hole
MODEL NO. | TYPE | L | l1 | l2 | l3 | d1 | d2 | d3 | T | TORQUE N.m min | WEIGHT (KGS) |
---|---|---|---|---|---|---|---|---|---|---|---|
5025-794-006-080 | SBT30xSFCT6-80-CP | 128.4 | 80 | 36 | 53 | 6 | 21 | 26 | M5 | 18 | 0.64 |
5025-794-008-080 | SBT30xSFCT8-80-CP | 128.4 | 80 | 36 | 53 | 8 | 21 | 26 | M6 | 35 | 0.56 |
5025-794-010-080 | SBT30xSFCT10-80-CP | 128.4 | 80 | 42 | 53 | 10 | 24 | 29 | M8 | 65 | 0.66 |
5025-794-012-080 | SBT30xSFCT12-80-CP | 128.4 | 80 | 47 | 53 | 12 | 24 | 29 | M10 | 110 | 0.66 |
5025-794-014-080 | SBT30xSFCT14-80-CP | 128.4 | 80 | 47 | 46 | 14 | 24 | 32 | M10 | 150 | 0.58 |
5025-794-016-080 | SBT30xSFCT16-80-CP | 128.4 | 80 | 50 | 55 | 16 | 27 | 32 | M12 | 200 | 0.60 |
5025-794-018-090 | SBT30xSFCT18-90-CP | 138.4 | 90 | 50 | 66 | 18 | 33 | 38 | M12 | 250 | 0.80 |
5025-794-020-090 | SBT30xSFCT20-90-CP | 138.4 | 90 | 52 | 66 | 20 | 33 | 38 | M16 | 320 | 0.76 |
5025-794-025-100 | SBT30xSFCT25-100-CP | 148.4 | 100 | 58 | 78 | 25 | 44 | 49 | M20 | 500 | 1.17 |
5026-794-006-090 | SBT40xSFCT6-90-CP | 155.4 | 90 | 36 | 58 | 6 | 21 | 26 | M5 | 18 | 1.15 |
5026-794-008-090 | SBT40xSFCT8-90-CP | 155.4 | 90 | 36 | 58 | 8 | 21 | 26 | M6 | 35 | 1.15 |
5026-794-010-090 | SBT40xSFCT10-90-CP | 155.4 | 90 | 42 | 58 | 10 | 24 | 29 | M8 | 65 | 1.20 |
5026-794-012-090 | SBT40xSFCT12-90-CP | 155.4 | 90 | 52 | 58 | 12 | 24 | 29 | M10 | 110 | 1.19 |
5026-794-014-090 | SBT40xSFCT14-90-CP | 155.4 | 90 | 52 | 58 | 14 | 27 | 32 | M10 | 150 | 1.24 |
5026-794-016-090 | SBT40xSFCT16-90-CP | 155.4 | 90 | 52 | 58 | 16 | 27 | 32 | M12 | 200 | 1.21 |
5026-794-018-100 | SBT40xSFCT18-100-CP | 165.4 | 100 | 52 | 68 | 18 | 33 | 38 | M12 | 250 | 1.42 |
5026-794-020-100 | SBT40xSFCT20-100-CP | 165.4 | 100 | 52 | 68 | 20 | 33 | 38 | M16 | 320 | 1.38 |
5026-794-025-100 | SBT40xSFCT25-100-CP | 165.4 | 100 | 58 | 71 | 25 | 44 | 49 | M20 | 500 | 1.66 |
5026-794-032-100 | SBT40xSFCT32-100-CP | 165.4 | 100 | 58 | 71 | 32 | 44 | 49 | M20 | 550 | 1.52 |
5027-794-006-100 | SBT50xSFCT6-100-CP | 201.8 | 100 | 36 | 57 | 6 | 21 | 26 | M5 | 18 | 3.92 |
5027-794-008-100 | SBT50xSFCT8-100-CP | 201.8 | 100 | 36 | 52 | 8 | 21 | 26 | M6 | 35 | 3.92 |
5027-794-010-100 | SBT50xSFCT10-100-CP | 201.8 | 100 | 42 | 58 | 10 | 24 | 29 | M8 | 65 | 3.90 |
5027-794-012-100 | SBT50xSFCT12-100-CP | 201.8 | 100 | 47 | 52 | 12 | 24 | 29 | M10 | 110 | 3.94 |
5027-794-014-100 | SBT50xSFCT14-100-CP | 201.8 | 100 | 47 | 57 | 14 | 27 | 32 | M10 | 150 | 4.02 |
5027-794-016-100 | SBT50xSFCT16-100-CP | 201.8 | 100 | 50 | 52 | 16 | 27 | 32 | M12 | 200 | 3.96 |
5027-794-018-110 | SBT50xSFCT18-110-CP | 211.8 | 110 | 50 | 62 | 18 | 33 | 38 | M12 | 250 | 4.18 |
5027-794-020-110 | SBT50xSFCT20-110-CP | 211.8 | 110 | 52 | 67 | 20 | 33 | 38 | M16 | 320 | 4.14 |
5027-794-025-110 | SBT50xSFCT25-110-CP | 211.8 | 110 | 58 | 67 | 25 | 44 | 49 | M20 | 500 | 4.46 |
5027-794-032-110 | SBT50xSFCT32-110-CP | 211.8 | 110 | 58 | 67 | 32 | 44 | 49 | M20 | 550 | 4.30 |
DualDRIVE+ SCAT/SFC SHRINK FIT CHUCK with CP coolant hole
MODEL NO. | TYPE | L | l1 | l2 | l3 | d1 | d2 | d3 | T | TORQUE N.m min | WEIGHT (KGS) |
---|---|---|---|---|---|---|---|---|---|---|---|
5043-801-006-100 | SCAT40xSFC6-100-CP | 168.249 | 100 | 36 | 54 | 6 | 21 | 27 | M5 | 18 | 1.23 |
5043-801-006-150 | SCAT40xSFC6-150-CP | 218.249 | 150 | 36 | 104 | 6 | 21 | 27 | M5 | 18 | 1.39 |
5043-801-008-100 | SCAT40xSFC8-100-CP | 168.249 | 100 | 36 | 54 | 8 | 21 | 27 | M6 | 35 | 1.22 |
5043-801-008-150 | SCAT40xSFC8-150-CP | 218.249 | 150 | 36 | 104 | 8 | 21 | 27 | M6 | 35 | 1.39 |
5043-801-010-100 | SCAT40xSFC10-100-CP | 168.249 | 100 | 42 | 56 | 10 | 24 | 32 | M8 | 65 | 1.28 |
5043-801-010-150 | SCAT40xSFC10-150-CP | 218.249 | 150 | 42 | 106 | 10 | 24 | 32 | M8 | 65 | 1.53 |
5043-801-012-100 | SCAT40xSFC12-100-CP | 168.249 | 100 | 47 | 59 | 12 | 24 | 33.3 | M10 | 110 | 1.27 |
5043-801-012-150 | SCAT40xSFC12-150-CP | 218.249 | 150 | 47 | 104 | 12 | 24 | 32 | M10 | 110 | 1.52 |
5043-801-014-100 | SCAT40xSFC14-100-CP | 168.249 | 100 | 47 | 59 | 14 | 27 | 34 | M10 | 150 | 1.27 |
5043-801-014-150 | SCAT40xSFC14-150-CP | 218.249 | 150 | 47 | 112 | 14 | 27 | 34 | M10 | 150 | 1.62 |
5043-801-016-100 | SCAT40xSFC16-100-CP | 168.249 | 100 | 50 | 59 | 16 | 27 | 34 | M12 | 200 | 1.25 |
5043-801-016-160 | SCAT40xSFC16-160-CP | 228.249 | 160 | 50 | 119 | 16 | 27 | 34 | M12 | 200 | 1.64 |
5043-801-018-100 | SCAT40xSFC18-100-CP | 168.249 | 100 | 50 | 63 | 18 | 33 | 42 | M12 | 250 | 1.43 |
5043-801-020-080 | SCAT40xSFC20-80-CP | 148.249 | 80 | 52 | 42 | 20 | 33 | 39 | M16 | 320 | 1.20 |
5044-801-006-100 | SCAT50xSFC6-100-CP | 201.6 | 100 | 36 | 62 | 6 | 21 | 27 | M5 | 18 | 3.21 |
5044-801-006-150 | SCAT50xSFC6-150-CP | 251.6 | 150 | 36 | 101 | 6 | 21 | 27 | M5 | 18 | 3.42 |
5044-801-008-100 | SCAT50xSFC8-100-CP | 201.6 | 100 | 36 | 60 | 8 | 21 | 27 | M6 | 35 | 3.21 |
5044-801-008-150 | SCAT50xSFC8-150-CP | 251.6 | 150 | 36 | 101 | 8 | 21 | 27 | M6 | 35 | 3.41 |
5044-801-010-100 | SCAT50xSFC10-100-CP | 201.6 | 100 | 42 | 60 | 10 | 24 | 32 | M8 | 65 | 3.27 |
5044-801-010-150 | SCAT50xSFC10-150-CP | 251.6 | 150 | 42 | 91 | 10 | 24 | 32 | M8 | 65 | 3.74 |
5044-801-012-100 | SCAT50xSFC12-100-CP | 201.6 | 100 | 47 | 62 | 12 | 24 | 32 | M10 | 110 | 3.26 |
5044-801-012-150 | SCAT50xSFC12-150-CP | 251.6 | 150 | 47 | 91 | 12 | 24 | 32 | M10 | 110 | 3.71 |
5044-801-014-100 | SCAT50xSFC14-100-CP | 201.6 | 100 | 47 | 62 | 14 | 27 | 34 | M10 | 150 | 3.31 |
5044-801-014-150 | SCAT50xSFC14-150-CP | 251.6 | 150 | 47 | 92 | 14 | 27 | 34 | M10 | 150 | 3.79 |
5044-801-016-100 | SCAT50xSFC16-100-CP | 201.6 | 100 | 50 | 62 | 16 | 27 | 34 | M12 | 200 | 3.29 |
5044-801-016-160 | SCAT50xSFC16-160-CP | 261.6 | 160 | 50 | 102 | 16 | 27 | 34 | M12 | 200 | 3.83 |
5044-801-018-100 | SCAT50xSFC18-100-CP | 201.6 | 100 | 50 | 62 | 18 | 33 | 42 | M12 | 250 | 3.45 |
5044-801-020-080 | SCAT50xSFC20-80-CP | 181.6 | 80 | 52 | 35 | 20 | 33 | 42 | M16 | 320 | 3.26 |
5044-801-025-100 | SCAT50xSFC25-100-CP | 201.6 | 100 | 58 | 62 | 25 | 44 | 53 | M20 | 500 | 3.69 |
5044-801-032-100 | SCAT50xSFC32-100-CP | 201.6 | 100 | 58 | 62 | 32 | 44 | 53 | M20 | 550 | 3.55 |
INCHES | |||||||||||
5043-801-A08-350 | SCAT40xSFC1/8"-3.5"-CP | 6.187 | 3.5 | 0.79 | 1.75 | 0.125 | 0.63 | 0.87 | M6 | 18 | 1.03 |
5043-801-A08-500 | SCAT40xSFC1/8"-5"-CP | 7.687 | 5 | 0.79 | 3.56 | 0.125 | 0.63 | 0.87 | - | 18 | 1.11 |
5043-801-A12-350 | SCAT40xSFC3/16"-3.5"-CP | 6.187 | 3.5 | 0.79 | 1.75 | 0.1875 | 0.63 | 0.87 | M6 | 18 | 1.04 |
5043-801-A12-500 | SCAT40xSFC3/16"-5"-CP | 7.687 | 5 | 0.79 | 3.42 | 0.1875 | 0.63 | 0.87 | M6 | 18 | 1.10 |
5043-801-A16-300 | SCAT40xSFC1/4"-3"-CP | 5.687 | 3 | 1.42 | 1.56 | 0.25 | 0.71 | 0.94 | M5 | 18 | 1.09 |
5043-801-A16-350 | SCAT40xSFC1/4"-3.5"-CP | 6.187 | 3.5 | 1.42 | 2 | 0.25 | 0.71 | 0.94 | M5 | 18 | 1.12 |
5043-801-A16-500 | SCAT40xSFC1/4"-5"-CP | 7.687 | 5 | 1.42 | 3.12 | 0.25 | 0.71 | 1.06 | M5 | 18 | 1.29 |
5043-801-A16-600 | SCAT40xSFC1/4"-6"-CP | 8.687 | 6 | 1.42 | 4.44 | 0.25 | 0.71 | 1.37 | M5 | 18 | 1.49 |
5043-801-A20-350 | SCAT40xSFC5/16"-3.5"-CP | 6.187 | 3.5 | 1.42 | 2.06 | 0.3125 | 0.79 | 1.06 | M6 | 35 | 1.14 |
5043-801-A20-500 | SCAT40xSFC5/16"-5"-CP | 7.687 | 5 | 1.42 | 3.12 | 0.3125 | 0.79 | 1.06 | M6 | 35 | 1.30 |
5043-801-A24-300 | SCAT40xSFC3/8"-3"-CP | 5.687 | 3 | 1.65 | 1.56 | 0.375 | 0.94 | 1.18 | M8 | 65 | 1.15 |
5043-801-A24-375 | SCAT40xSFC3/8"-3.75"-CP | 6.437 | 3.75 | 1.65 | 2.31 | 0.375 | 0.94 | 1.26 | M8 | 65 | 1.24 |
5043-801-A24-500 | SCAT40xSFC3/8"-5"-CP | 7.687 | 5 | 1.65 | 3.5 | 0.375 | 0.94 | 1.37 | M8 | 65 | 1.46 |
5043-801-A24-600 | SCAT40xSFC3/8"-6"-CP | 8.687 | 6 | 1.65 | 4.44 | 0.375 | 0.94 | 1.37 | M8 | 65 | 1.66 |
5043-801-A32-300 | SCAT40xSFC1/2"-3"-CP | 5.687 | 3 | 2.05 | 1.56 | 0.5 | 1.1 | 1.34 | M10 | 110 | 1.19 |
5043-801-A32-375 | SCAT40xSFC1/2"-3.75"-CP | 6.437 | 3.75 | 2.05 | 2.31 | 0.5 | 1.1 | 1.34 | M10 | 110 | 1.30 |
5043-801-A32-500 | SCAT40xSFC1/2"-5"-CP | 7.687 | 5 | 2.05 | 3.5 | 0.5 | 1.1 | 1.34 | M10 | 110 | 1.52 |
5043-801-A32-600 | SCAT40xSFC1/2"-6"-CP | 8.687 | 6 | 2.05 | 4.49 | 0.5 | 1.1 | 1.34 | M10 | 110 | 1.68 |
5043-801-A40-375 | SCAT40xSFC5/8"-3.75"-CP | 6.437 | 3.75 | 1.97 | 2.17 | 0.625 | 1.06 | 1.34 | M12 | 200 | 1.27 |
5043-801-A48-300 | SCAT40xSFC3/4"-3"-CP | 5.687 | 3 | 2.04 | 1.62 | 0.75 | 1.42 | 1.65 | M16 | 320 | 1.24 |
5043-801-A48-400 | SCAT40xSFC3/4"-4"-CP | 6.687 | 4 | 2.04 | 2.62 | 0.75 | 1.42 | 1.65 | M16 | 320 | 1.49 |
5043-801-A48-500 | SCAT40xSFC3/4"-5"-CP | 7.687 | 5 | 2.04 | 3.44 | 0.75 | 1.26 | 1.37 | M16 | 320 | 1.48 |
5043-801-A48-600 | SCAT40xSFC3/4"-6"-CP | 8.687 | 6 | 2.04 | 4.44 | 0.75 | 1.26 | 1.37 | M16 | 320 | 1.64 |
5043-801-A64-300 | SCAT40xSFC1"-3"-CP | 5.687 | 3 | 2.09 | 1.62 | 1 | 1.81 | 2.04 | M20 | 500 | 1.34 |
5043-801-A64-400 | SCAT40xSFC1"-4"-CP | 6.687 | 4 | 2.28 | 2.62 | 1 | 1.81 | 2.09 | M20 | 500 | 1.73 |
5043-801-A64-600 | SCAT40xSFC1"-6"-CP | 8.687 | 6 | 2.28 | 4.54 | 1 | 1.81 | 2.09 | M20 | 500 | 2.51 |
5043-801-A72-400 | SCAT40xSFC1-1/4"-4"-CP | 6.687 | 4 | 2.28 | 2.62 | 1.25 | 1.81 | 2.09 | M20 | 550 | 1.60 |
5044-801-A12-354 | SCAT50xSFC3/16"-3.54"-CP | 7.54 | 3.54 | 0.79 | 1.98 | 0.1875 | 0.63 | 0.87 | M6 | 18 | 3.04 |
5044-801-A16-354 | SCAT50xSFC1/4"-3.54"-CP | 7.54 | 3.54 | 1.42 | 2.04 | 0.25 | 0.71 | 1.03 | M5 | 18 | 3.13 |
5044-801-A20-354 | SCAT50xSFC5/16"-3.54"-CP | 7.54 | 3.54 | 1.42 | 2.04 | 0.3125 | 0.79 | 1.06 | M6 | 35 | 3.15 |
5044-801-A24-394 | SCAT50xSFC3/8"-3.94"-CP | 7.94 | 3.94 | 1.65 | 2.36 | 0.375 | 0.94 | 1.26 | M8 | 65 | 3.27 |
5044-801-A32-394 | SCAT50xSFC1/2"-3.94"-CP | 7.94 | 3.94 | 1.85 | 2.36 | 0.5 | 1.1 | 1.34 | M10 | 110 | 3.33 |
5044-801-A40-394 | SCAT50xSFC5/8"-3.94"-CP | 7.94 | 3.94 | 1.97 | 2.36 | 0.625 | 1.06 | 1.34 | M12 | 200 | 3.29 |
5044-801-A48-413 | SCAT50xSFC3/4"-4.13"-CP | 8.13 | 4.13 | 2.04 | 2.56 | 0.75 | 1.42 | 1.65 | M16 | 320 | 3.52 |
5044-801-A48-600 | SCAT50xSFC3/4"-6"-CP | 10 | 6 | 2.04 | 4.42 | 0.75 | 1.42 | 1.65 | M16 | 320 | 4.03 |
5044-801-A64-413 | SCAT50xSFC1"-4.13"-CP | 8.13 | 4.13 | 2.28 | 2.71 | 1 | 1.81 | 2.09 | M20 | 550 | 3.81 |
5044-801-A64-600 | SCAT50xSFC1"-6"-CP | 10 | 6 | 2.28 | 4.12 | 1 | 1.81 | 2.09 | M20 | 500 | 4.56 |
5044-801-A72-413 | SCAT50xSFC1-1/4"-4.13"-CP | 8.13 | 4.13 | 2.28 | 2.63 | 1.25 | 1.81 | 2.09 | M20 | 550 | 3.68 |
5044-801-A72-472 | SCAT50xSFC1-1/4"-4.72"-CP | 8.72 | 4.72 | 2.28 | 3.22 | 1.25 | 1.81 | 2.09 | M20 | 550 | 3.90 |
5044-801-A72-600 | SCAT50xSFC1-1/4"-6"-CP | 10 | 6 | 2.28 | 4.12 | 1.25 | 1.81 | 2.09 | M20 | 550 | 4.43 |
DualDRIVE+ SDAT/SFC SHRINK FIT CHUCK with CP coolant hole
MODEL NO. | TYPE | L | l1 | l2 | l3 | d1 | d2 | d3 | T | TORQUE N.m min | WEIGHT (KGS) |
---|---|---|---|---|---|---|---|---|---|---|---|
5066-801-006-080 | SDAT40xSFC6-80-CP | 148.4 | 80 | 36 | 55.9 | 6 | 21 | 27 | M5 | 18 | 1.03 |
5066-801-006-130 | SDAT40xSFC6-130-CP | 198.4 | 130 | 36 | 105.9 | 6 | 21 | 27 | M5 | 18 | 1.25 |
5066-801-006-160 | SDAT40xSFC6-160-CP | 228.4 | 160 | 36 | 105.9 | 6 | 21 | 27 | M5 | 18 | 1.38 |
5066-801-006-200 | SDAT40xSFC6-200-CP | 268.4 | 200 | 36 | 146 | 6 | 21 | 27 | M5 | 18 | 1.56 |
5066-801-008-080 | SDAT40xSFC8-80-CP | 148.4 | 80 | 36 | 55.9 | 8 | 21 | 27 | M6 | 35 | 0.93 |
5066-801-008-130 | SDAT40xSFC8-130-CP | 198.4 | 130 | 36 | 105.9 | 8 | 21 | 27 | M6 | 35 | 1.24 |
5066-801-008-160 | SDAT40xSFC8-160-CP | 228.4 | 160 | 36 | 105.9 | 8 | 21 | 27 | M6 | 35 | 1.37 |
5066-801-008-200 | SDAT40xSFC8-200-CP | 268.4 | 200 | 36 | 146 | 8 | 21 | 27 | M6 | 35 | 1.55 |
5066-801-010-080 | SDAT40xSFC10-80-CP | 148.4 | 80 | 42 | 55.9 | 10 | 24 | 32 | M8 | 65 | 1.21 |
5066-801-010-130 | SDAT40xSFC10-130-CP | 198.4 | 130 | 42 | 105.9 | 10 | 24 | 32 | M8 | 65 | 1.52 |
5066-801-010-160 | SDAT40xSFC10-160-CP | 228.4 | 160 | 42 | 105.9 | 10 | 24 | 32 | M8 | 65 | 1.65 |
5066-801-010-200 | SDAT40xSFC10-200-CP | 268.4 | 200 | 42 | 146 | 10 | 24 | 32 | M8 | 65 | 1.83 |
5066-801-012-080 | SDAT40xSFC12-80-CP | 148.4 | 80 | 47 | 55.9 | 12 | 24 | 32 | M10 | 110 | 1.01 |
5066-801-012-130 | SDAT40xSFC12-130-CP | 198.4 | 130 | 47 | 105.9 | 12 | 24 | 32 | M10 | 110 | 1.50 |
5066-801-012-160 | SDAT40xSFC12-160-CP | 228.4 | 160 | 47 | 105.9 | 12 | 24 | 32 | M10 | 110 | 1.45 |
5066-801-012-200 | SDAT40xSFC12-200-CP | 268.4 | 200 | 47 | 146 | 12 | 24 | 32 | M10 | 110 | 1.81 |
5066-801-014-080 | SDAT40xSFC14-80-CP | 148.4 | 80 | 47 | 55.9 | 14 | 27 | 34 | M10 | 150 | 0.89 |
5066-801-014-130 | SDAT40xSFC14-130-CP | 198.4 | 130 | 47 | 105.9 | 14 | 27 | 34 | M10 | 150 | 1.38 |
5066-801-014-160 | SDAT40xSFC14-160-CP | 228.4 | 160 | 47 | 105.9 | 14 | 27 | 34 | M10 | 150 | 1.33 |
5066-801-014-200 | SDAT40xSFC14-200-CP | 268.4 | 200 | 47 | 146 | 14 | 27 | 34 | M10 | 150 | 1.93 |
5066-801-016-080 | SDAT40xSFC16-80-CP | 148.4 | 80 | 50 | 55.9 | 16 | 27 | 34 | M12 | 200 | 1.09 |
5066-801-016-130 | SDAT40xSFC16-130-CP | 198.4 | 130 | 50 | 105.9 | 16 | 27 | 34 | M12 | 200 | 1.44 |
5066-801-016-160 | SDAT40xSFC16-160-CP | 228.4 | 160 | 50 | 105.9 | 16 | 27 | 34 | M12 | 200 | 1.65 |
5066-801-016-200 | SDAT40xSFC16-200-CP | 268.4 | 200 | 50 | 146 | 16 | 27 | 34 | M12 | 200 | 1.93 |
5066-801-018-080 | SDAT40xSFC18-80-CP | 148.4 | 80 | 50 | 57.9 | 18 | 33 | 42 | M12 | 250 | 1.23 |
5066-801-018-130 | SDAT40xSFC18-130-CP | 198.4 | 130 | 50 | 107.9 | 18 | 33 | 42 | M12 | 250 | 1.76 |
5066-801-018-160 | SDAT40xSFC18-160-CP | 228.4 | 160 | 50 | 107.9 | 18 | 33 | 42 | M12 | 250 | 2.08 |
5066-801-018-200 | SDAT40xSFC18-200-CP | 268.4 | 200 | 50 | 147.9 | 18 | 33 | 42 | M12 | 250 | 2.51 |
5066-801-020-080 | SDAT40xSFC20-80-CP | 148.4 | 80 | 52 | 57.9 | 20 | 33 | 42 | M16 | 320 | 1.21 |
5066-801-020-130 | SDAT40xSFC20-130-CP | 198.4 | 130 | 52 | 107.9 | 20 | 33 | 42 | M16 | 320 | 1.73 |
5066-801-020-160 | SDAT40xSFC20-160-CP | 228.4 | 160 | 52 | 107.9 | 20 | 33 | 42 | M16 | 320 | 2.06 |
5066-801-020-200 | SDAT40xSFC20-200-CP | 268.4 | 200 | 52 | 147.9 | 20 | 33 | 42 | M16 | 320 | 2.48 |
5066-801-025-100 | SDAT40xSFC25-100-CP | 168.4 | 100 | 58 | 80.9 | 25 | 44 | 53 | M20 | 500 | 1.79 |
5066-801-025-130 | SDAT40xSFC25-130-CP | 198.4 | 130 | 58 | 110.9 | 25 | 44 | 53 | M20 | 500 | 2.31 |
5066-801-025-160 | SDAT40xSFC25-160-CP | 228.4 | 160 | 58 | 140.9 | 25 | 44 | 53 | M20 | 500 | 2.81 |
5066-801-025-200 | SDAT40xSFC25-200-CP | 268.4 | 200 | 58 | 180.9 | 25 | 44 | 53 | M20 | 500 | 3.49 |
5066-801-032-100 | SDAT40xSFC32-100-CP | 168.4 | 100 | 58 | 80.9 | 32 | 44 | 53 | M20 | 550 | 1.65 |
5067-801-006-080 | SDAT50xSFC6-80-CP | 181.75 | 80 | 36 | 55.9 | 6 | 21 | 27 | M5 | 18 | 2.81 |
5067-801-006-130 | SDAT50xSFC6-130-CP | 231.75 | 130 | 36 | 100.9 | 6 | 21 | 27 | M5 | 18 | 3.03 |
5067-801-006-160 | SDAT50xSFC6-160-CP | 261.75 | 160 | 36 | 100.9 | 6 | 21 | 27 | M5 | 18 | 3.17 |
5067-801-006-200 | SDAT50xSFC6-200-CP | 301.75 | 200 | 36 | 141 | 6 | 21 | 27 | M5 | 18 | 3.34 |
5067-801-008-080 | SDAT50xSFC8-80-CP | 181.75 | 80 | 36 | 55.9 | 8 | 21 | 27 | M6 | 35 | 2.80 |
5067-801-008-130 | SDAT50xSFC8-130-CP | 231.75 | 130 | 36 | 100.9 | 8 | 21 | 27 | M6 | 35 | 3.02 |
5067-801-008-160 | SDAT50xSFC8-160-CP | 261.75 | 160 | 36 | 100.9 | 8 | 21 | 27 | M6 | 35 | 3.16 |
5067-801-008-200 | SDAT50xSFC8-200-CP | 301.75 | 200 | 36 | 141 | 8 | 21 | 27 | M6 | 35 | 3.33 |
5067-801-010-080 | SDAT50xSFC10-80-CP | 181.75 | 80 | 42 | 55.9 | 10 | 24 | 32 | M8 | 65 | 2.53 |
5067-801-010-130 | SDAT50xSFC10-130-CP | 231.75 | 130 | 42 | 100.9 | 10 | 24 | 32 | M8 | 65 | 2.75 |
5067-801-010-160 | SDAT50xSFC10-160-CP | 261.75 | 160 | 42 | 100.9 | 10 | 24 | 32 | M8 | 65 | 2.89 |
5067-801-010-200 | SDAT50xSFC10-200-CP | 301.75 | 200 | 42 | 141 | 10 | 24 | 32 | M8 | 65 | 3.60 |
5067-801-012-080 | SDAT50xSFC12-80-CP | 181.75 | 80 | 47 | 55.9 | 12 | 24 | 32 | M10 | 110 | 2.52 |
5067-801-012-130 | SDAT50xSFC12-130-CP | 231.75 | 130 | 47 | 100.9 | 12 | 24 | 32 | M10 | 110 | 2.74 |
5067-801-012-160 | SDAT50xSFC12-160-CP | 261.75 | 160 | 47 | 100.9 | 12 | 24 | 32 | M10 | 110 | 2.88 |
5067-801-012-200 | SDAT50xSFC12-200-CP | 301.75 | 200 | 47 | 141 | 12 | 24 | 32 | M10 | 110 | 3.59 |
5067-801-014-080 | SDAT50xSFC14-80-CP | 181.75 | 80 | 47 | 55.9 | 14 | 27 | 34 | M10 | 150 | 2.38 |
5067-801-014-130 | SDAT50xSFC14-130-CP | 231.75 | 130 | 47 | 100.9 | 14 | 27 | 34 | M10 | 150 | 2.60 |
5067-801-014-160 | SDAT50xSFC14-160-CP | 261.75 | 160 | 47 | 100.9 | 14 | 27 | 34 | M10 | 150 | 2.74 |
5067-801-014-200 | SDAT50xSFC14-200-CP | 301.75 | 200 | 47 | 141 | 14 | 27 | 34 | M10 | 150 | 3.73 |
5067-801-016-080 | SDAT50xSFC16-80-CP | 181.75 | 80 | 50 | 55.9 | 16 | 27 | 34 | M12 | 200 | 2.87 |
5067-801-016-130 | SDAT50xSFC16-130-CP | 231.75 | 130 | 50 | 100.9 | 16 | 27 | 34 | M12 | 200 | 3.22 |
5067-801-016-160 | SDAT50xSFC16-160-CP | 261.75 | 160 | 50 | 100.9 | 16 | 27 | 34 | M12 | 200 | 3.43 |
5067-801-016-200 | SDAT50xSFC16-200-CP | 301.75 | 200 | 50 | 141 | 16 | 27 | 34 | M12 | 200 | 3.71 |
5067-801-018-080 | SDAT50xSFC18-80-CP | 181.75 | 80 | 50 | 57.9 | 18 | 33 | 42 | M12 | 250 | 2.99 |
5067-801-018-130 | SDAT50xSFC18-130-CP | 231.75 | 130 | 50 | 100.9 | 18 | 33 | 42 | M12 | 250 | 3.55 |
5067-801-018-160 | SDAT50xSFC18-160-CP | 261.75 | 160 | 50 | 100.9 | 18 | 33 | 42 | M12 | 250 | 3.87 |
5067-801-018-200 | SDAT50xSFC18-200-CP | 301.75 | 200 | 50 | 141 | 18 | 33 | 42 | M12 | 250 | 4.30 |
5067-801-020-080 | SDAT50xSFC20-80-CP | 181.75 | 80 | 52 | 57.9 | 20 | 33 | 42 | M16 | 320 | 2.91 |
5067-801-020-130 | SDAT50xSFC20-130-CP | 231.75 | 130 | 52 | 100.9 | 20 | 33 | 42 | M16 | 320 | 3.25 |
5067-801-020-160 | SDAT50xSFC20-160-CP | 261.75 | 160 | 52 | 100.9 | 20 | 33 | 42 | M16 | 320 | 3.57 |
5067-801-020-200 | SDAT50xSFC20-200-CP | 301.75 | 200 | 52 | 141 | 20 | 33 | 42 | M16 | 320 | 4.27 |
5067-801-025-100 | SDAT50xSFC25-100-CP | 201.75 | 100 | 58 | 70.9 | 25 | 44 | 53 | M20 | 500 | 3.59 |
5067-801-025-130 | SDAT50xSFC25-130-CP | 231.75 | 130 | 58 | 100.9 | 25 | 44 | 53 | M20 | 500 | 4.10 |
5067-801-025-160 | SDAT50xSFC25-160-CP | 261.75 | 160 | 58 | 100.9 | 25 | 44 | 53 | M20 | 500 | 4.61 |
5067-801-025-200 | SDAT50xSFC25-200-CP | 301.75 | 200 | 58 | 141 | 25 | 44 | 53 | M20 | 500 | 5.29 |
5067-801-032-100 | SDAT50xSFC32-100-CP | 201.75 | 100 | 58 | 70.9 | 32 | 44 | 53 | M20 | 550 | 3.45 |
HSK-A/SFC SHRINK FIT CHUCK with CP coolant hole
MODEL NO. | TYPE | L | l1 | l2 | l3 | d1 | d2 | d3 | T | TORQUE N.m min | WEIGHT (KGS) |
---|---|---|---|---|---|---|---|---|---|---|---|
5071-801-006-080 | HSK40AxSFC6-80-CP | 100 | 80 | 36 | 57 | 6 | 21 | 27 | M5 | 18 | 0.41 |
5071-801-008-080 | HSK40AxSFC8-80-CP | 100 | 80 | 36 | 57 | 8 | 21 | 27 | M6 | 35 | 0.40 |
5071-801-010-085 | HSK40AxSFC10-85-CP | 105 | 85 | 42 | 64 | 10 | 24 | 32 | M8 | 65 | 0.49 |
5071-801-012-090 | HSK40AxSFC12-90-CP | 110 | 90 | 47 | 69 | 12 | 24 | 32 | M10 | 110 | 0.50 |
5071-801-014-090 | HSK40AxSFC14-90-CP | 110 | 90 | 47 | 69 | 14 | 27 | 34 | M10 | 150 | 0.56 |
5071-801-016-090 | HSK40AxSFC16-90-CP | 110 | 90 | 47 | 69 | 16 | 27 | 34 | M12 | 200 | 0.53 |
5072-801-006-080 | HSK50AxSFC6-80-CP | 105 | 80 | 36 | 49 | 6 | 21 | 27 | M5 | 18 | 0.58 |
5072-801-008-080 | HSK50AxSFC8-80-CP | 105 | 80 | 36 | 49 | 8 | 21 | 27 | M6 | 35 | 0.57 |
5072-801-010-085 | HSK50AxSFC10-85-CP | 110 | 85 | 42 | 54 | 10 | 24 | 32 | M8 | 65 | 0.65 |
5072-801-012-090 | HSK50AxSFC12-90-CP | 115 | 90 | 47 | 59 | 12 | 24 | 32 | M10 | 110 | 0.66 |
5072-801-014-090 | HSK50AxSFC14-90-CP | 115 | 90 | 47 | 59 | 14 | 24 | 32 | M10 | 150 | 0.65 |
5072-801-016-095 | HSK50AxSFC16-95-CP | 120 | 95 | 50 | 64 | 16 | 27 | 34 | M12 | 200 | 0.72 |
5072-801-018-095 | HSK50AxSFC18-95-CP | 120 | 95 | 52 | 67 | 18 | 33 | 42 | M12 | 250 | 0.89 |
5072-801-020-100 | HSK50AxSFC20-100-CP | 125 | 100 | 52 | 73 | 20 | 33 | 42 | M16 | 320 | 0.90 |
5072-801-025-115 | HSK50AxSFC25-115-CP | 140 | 115 | 47 | 88 | 25 | 44 | 53 | M20 | 550 | 1.39 |
5073-801-006-080 | HSK63AxSFC6-80-CP | 112 | 80 | 36 | 51 | 6 | 21 | 27 | M5 | 18 | 0.83 |
5073-801-008-080 | HSK63AxSFC8-80-CP | 112 | 80 | 36 | 51 | 8 | 21 | 27 | M6 | 35 | 0.83 |
5073-801-010-085 | HSK63AxSFC10-85-CP | 117 | 85 | 42 | 54 | 10 | 24 | 32 | M8 | 65 | 0.91 |
5073-801-012-090 | HSK63AxSFC12-90-CP | 122 | 90 | 47 | 59 | 12 | 24 | 32 | M10 | 110 | 0.92 |
5073-801-014-090 | HSK63AxSFC14-90-CP | 122 | 90 | 47 | 59 | 14 | 27 | 34 | M10 | 150 | 0.97 |
5073-801-016-095 | HSK63AxSFC16-95-CP | 127 | 95 | 50 | 64 | 16 | 27 | 34 | M12 | 200 | 0.98 |
5073-801-018-095 | HSK63AxSFC18-95-CP | 127 | 95 | 50 | 64 | 18 | 33 | 42 | M12 | 250 | 1.15 |
5073-801-019-100 | HSK63AxSFC19-100-CP | 132 | 100 | 60 | 69 | 19 | 33 | 42 | - | 320 | 1.14 |
5073-801-020-100 | HSK63AxSFC20-100-CP | 132 | 100 | 52 | 69 | 20 | 33 | 42 | M16 | 320 | 1.17 |
5073-801-024-115 | HSK63AxSFC24-115-CP | 147 | 115 | 72 | 88.6 | 24 | 44 | 53 | - | 500 | 1.69 |
5073-801-025-115 | HSK63AxSFC25-115-CP | 147 | 115 | 58 | 88 | 25 | 44 | 53 | M20 | 500 | 1.74 |
5073-801-032-120 | HSK63AxSFC32-120-CP | 152 | 120 | 58 | 93 | 32 | 44 | 53 | M20 | 550 | 1.67 |
5075-801-006-085 | HSK100AxSFC6-85-CP | 135 | 85 | 36 | 46 | 6 | 21 | 27 | M5 | 18 | 2.21 |
5075-801-008-085 | HSK100AxSFC8-85-CP | 135 | 85 | 36 | 46 | 8 | 21 | 27 | M6 | 35 | 2.20 |
5075-801-010-090 | HSK100AxSFC10-90-CP | 140 | 90 | 42 | 51 | 10 | 24 | 32 | M8 | 65 | 2.28 |
5075-801-012-095 | HSK100AxSFC12-95-CP | 145 | 95 | 47 | 56 | 12 | 24 | 32 | M10 | 110 | 2.30 |
5075-801-014-095 | HSK100AxSFC14-95-CP | 145 | 95 | 47 | 56 | 14 | 27 | 34 | M10 | 150 | 2.35 |
5075-801-016-100 | HSK100AxSFC16-100-CP | 150 | 100 | 50 | 61 | 16 | 27 | 34 | M12 | 200 | 2.36 |
5075-801-018-100 | HSK100AxSFC18-100-CP | 150 | 100 | 50 | 66 | 18 | 33 | 42 | M12 | 250 | 2.52 |
5075-801-019-105 | HSK100AxSFC19-105-CP | 155 | 105 | 60 | 71 | 19 | 33 | 42 | - | 320 | 2.48 |
5075-801-020-105 | HSK100AxSFC20-105-CP | 155 | 105 | 52 | 71 | 20 | 33 | 42 | M16 | 320 | 2.53 |
5075-801-024-115 | HSK100AxSFC24-115-CP | 165 | 115 | 72 | 81 | 24 | 44 | 53 | - | 500 | 2.97 |
5075-801-025-115 | HSK100AxSFC25-115-CP | 165 | 115 | 58 | 81 | 25 | 44 | 53 | M20 | 500 | 3.04 |
5075-801-032-120 | HSK100AxSFC32-120-CP | 170 | 120 | 58 | 86 | 32 | 44 | 53 | M20 | 550 | 2.98 |
5076-801-010-130 | HSK125AxSFC10-130-CP | 193 | 130 | 42 | 75 | 10 | 24 | 32 | M8 | 65 | 4.39 |
5076-801-010-160 | HSK125AxSFC10-160-CP | 223 | 160 | 42 | 75 | 10 | 24 | 32 | M8 | 65 | 5.25 |
5076-801-010-200 | HSK125AxSFC10-200-CP | 263 | 200 | 42 | 75 | 10 | 24 | 32 | M8 | 65 | 6.37 |
5076-801-012-130 | HSK125AxSFC12-130-CP | 193 | 130 | 47 | 75 | 12 | 24 | 32 | M10 | 110 | 4.37 |
5076-801-012-160 | HSK125AxSFC12-160-CP | 223 | 160 | 47 | 75 | 12 | 24 | 32 | M10 | 110 | 5.23 |
5076-801-012-200 | HSK125AxSFC12-200-CP | 263 | 200 | 47 | 75 | 12 | 24 | 32 | M10 | 110 | 6.35 |
5076-801-016-130 | HSK125AxSFC16-130-CP | 193 | 130 | 50 | 75 | 16 | 27 | 34 | M12 | 200 | 4.65 |
5076-801-016-160 | HSK125AxSFC16-160-CP | 223 | 160 | 50 | 75 | 16 | 27 | 34 | M12 | 200 | 5.61 |
5076-801-016-200 | HSK125AxSFC16-200-CP | 263 | 200 | 50 | 75 | 16 | 27 | 34 | M12 | 200 | 6.45 |
5076-801-020-115 | HSK125AxSFC20-115-CP | 178 | 115 | 52 | 60 | 20 | 33 | 42 | M16 | 320 | 4.50 |
5076-801-020-130 | HSK125AxSFC20-130-CP | 193 | 130 | 52 | 75 | 20 | 33 | 42 | M16 | 320 | 4.64 |
5076-801-020-160 | HSK125AxSFC20-160-CP | 223 | 160 | 52 | 75 | 20 | 33 | 42 | M16 | 320 | 5.60 |
5076-801-020-200 | HSK125AxSFC20-200-CP | 263 | 200 | 52 | 75 | 20 | 33 | 42 | M16 | 320 | 6.86 |
5076-801-025-115 | HSK125AxSFC25-115-CP | 178 | 115 | 58 | 60 | 25 | 44 | 53 | M20 | 500 | 4.85 |
5076-801-025-130 | HSK125AxSFC25-130-CP | 193 | 130 | 58 | 75 | 25 | 44 | 53 | M20 | 500 | 5.08 |
5076-801-025-160 | HSK125AxSFC25-160-CP | 223 | 160 | 58 | 75 | 25 | 44 | 53 | M20 | 500 | 6.17 |
5076-801-025-200 | HSK125AxSFC25-200-CP | 263 | 200 | 58 | 75 | 25 | 44 | 53 | M20 | 500 | 7.59 |
5076-801-032-120 | HSK125AxSFC32-120-CP | 183 | 120 | 58 | 65 | 32 | 44 | 53 | M20 | 550 | 4.79 |
INCHES | |||||||||||
5071-801-A16-354 | HSK40AxSFC1/4"-3.54"-CP | 4.33 | 3.54 | 1.42 | 2.04 | 0.25 | 0.71 | 1.03 | M5 | 18 | 0.41 |
5071-801-A20-354 | HSK40AxSFC5/16"-3.54"-CP | 4.33 | 3.54 | 1.42 | 2.63 | 0.3125 | 0.79 | 1.06 | M6 | 35 | 0.43 |
5071-801-A24-354 | HSK40AxSFC3/8"-3.54"-CP | 4.33 | 3.54 | 1.53 | 2.67 | 0.375 | 0.94 | 1.26 | M8 | 65 | 0.52 |
5071-801-A32-354 | HSK40AxSFC1/2"-3.54"-CP | 4.33 | 3.54 | 1.85 | 2.71 | 0.5 | 1.1 | 1.34 | M10 | 110 | 0.58 |
5072-801-A16-354 | HSK50AxSFC1/4"-3.54"-CP | 4.53 | 3.54 | 1.42 | 2.04 | 0.25 | 0.71 | 1.03 | M5 | 18 | 0.58 |
5072-801-A20-354 | HSK50AxSFC5/16"-3.54"-CP | 4.53 | 3.54 | 1.42 | 2.32 | 0.3125 | 0.79 | 1.06 | M6 | 35 | 0.60 |
5072-801-A24-354 | HSK50AxSFC3/8"-3.54"-CP | 4.53 | 3.54 | 1.53 | 2.32 | 0.375 | 0.94 | 1.26 | M8 | 65 | 0.69 |
5072-801-A32-354 | HSK50AxSFC1/2"-3.54"-CP | 4.53 | 3.54 | 1.85 | 2.4 | 0.5 | 1.1 | 1.34 | M10 | 110 | 0.74 |
5072-801-A40-354 | HSK50AxSFC5/8"-3.54"-CP | 4.53 | 3.54 | 1.97 | 2.4 | 0.625 | 1.06 | 1.34 | M12 | 200 | 0.69 |
5072-801-A48-394 | HSK50AxSFC3/4"-3.94"-CP | 4.93 | 3.94 | 1.97 | 2.89 | 0.75 | 1.42 | 1.65 | M16 | 320 | 0.91 |
5073-801-A16-394 | HSK63AxSFC1/4"-3.94"-CP | 5.2 | 3.94 | 1.42 | 2.71 | 0.25 | 0.71 | 1.06 | M5 | 18 | 0.88 |
5073-801-A20-394 | HSK63AxSFC5/16"-3.94"-CP | 5.2 | 3.94 | 1.42 | 2.71 | 0.3125 | 0.79 | 1.06 | M6 | 35 | 0.90 |
5073-801-A24-394 | HSK63AxSFC3/8"-3.94"-CP | 5.2 | 3.94 | 1.65 | 2.71 | 0.375 | 0.94 | 1.26 | M8 | 65 | 1.00 |
5073-801-A32-394 | HSK63AxSFC1/2"-3.94"-CP | 5.2 | 3.94 | 1.85 | 2.71 | 0.5 | 1.1 | 1.38 | M10 | 110 | 1.08 |
5073-801-A40-394 | HSK63AxSFC5/8"-3.94"-CP | 5.2 | 3.94 | 1.97 | 2.71 | 0.625 | 1.06 | 1.34 | M12 | 200 | 1.01 |
5073-801-A48-394 | HSK63AxSFC3/4"-3.94"-CP | 5.2 | 3.94 | 2.04 | 2.71 | 0.75 | 1.42 | 1.65 | M16 | 320 | 1.25 |
5073-801-A64-394 | HSK63AxSFC1"-3.94"-CP | 5.2 | 3.94 | 2.28 | 2.71 | 1 | 1.42 | 1.65 | M20 | 500 | 1.12 |
5075-801-A16-354 | HSK100AxSFC1/4"-3.54"-CP | 5.51 | 3.54 | 1.26 | 2.04 | 0.25 | 0.71 | 1.03 | M5 | 18 | 2.17 |
5075-801-A20-335 | HSK100AxSFC5/16"-3.35"-CP | 5.32 | 3.35 | 1.42 | 2 | 0.3125 | 0.79 | 1.06 | M6 | 35 | 2.17 |
5075-801-A24-354 | HSK100AxSFC3/8"-3.54"-CP | 5.51 | 3.54 | 1.89 | 2.2 | 0.375 | 0.94 | 1.26 | M8 | 65 | 2.27 |
5075-801-A32-374 | HSK100AxSFC1/2"-3.74"-CP | 5.71 | 3.74 | 2.04 | 2.4 | 0.5 | 1.1 | 1.34 | M10 | 110 | 2.36 |
5075-801-A40-394 | HSK100AxSFC5/8"-3.94"-CP | 5.91 | 3.94 | 2.16 | 2.4 | 0.625 | 1.06 | 1.34 | - | 200 | 2.34 |
5075-801-A48-413 | HSK100AxSFC3/4"-4.13"-CP | 6.1 | 4.13 | 2.04 | 2.79 | 0.75 | 1.42 | 1.65 | M16 | 320 | 2.62 |
5075-801-A64-453 | HSK100AxSFC1"-4.53"-CP | 6.5 | 4.53 | 2.28 | 2.99 | 1 | 1.81 | 2.09 | M20 | 500 | 3.13 |
5075-801-A72-472 | HSK100AxSFC1-1/4"-4.72"-CP | 6.69 | 4.72 | 2.28 | 3.18 | 1.25 | 1.81 | 2.09 | M20 | 550 | 3.07 |
PSC/SFC SHRINK FIT CHUCK with CP coolant hole
MODEL NO. | TYPE | L | l1 | l2 | l3 | d1 | d2 | d3 | T | WEIGHT (KGS) |
---|---|---|---|---|---|---|---|---|---|---|
5140-801-006-060 | PSC32xSFC6-60-CP | 79 | 60 | 36 | 40 | 6 | 12 | 18 | M5 | 0.17 |
5140-801-008-107 | PSC32xSFC8-107-CP | 126 | 107 | 36 | 61 | 8 | 20 | 26 | M6 | 0.43 |
5140-801-010-095 | PSC32xSFC10-95-CP | 114 | 95 | 42 | 81 | 10 | 24 | 32 | M8 | 0.50 |
5140-801-012-084 | PSC32xSFC12-84-CP | 103 | 84 | 47 | 69 | 12 | 24 | 32 | M10 | 0.41 |
5141-801-006-075 | PSC40xSFC6-75-CP | 99 | 75 | 36 | 53 | 6 | 20 | 26 | M5 | 0.40 |
5141-801-008-075 | PSC40xSFC8-75-CP | 99 | 75 | 36 | 53 | 8 | 20 | 26 | M6 | 0.40 |
5141-801-010-075 | PSC40xSFC10-75-CP | 99 | 75 | 42 | 54 | 10 | 24 | 32 | M8 | 0.50 |
5141-801-012-075 | PSC40xSFC12-75-CP | 99 | 75 | 47 | 54 | 12 | 24 | 32 | M10 | 0.50 |
5141-801-014-080 | PSC40xSFC14-80-CP | 104 | 80 | 47 | 59 | 14 | 27 | 34 | M10 | 0.60 |
5141-801-016-080 | PSC40xSFC16-80-CP | 104 | 80 | 50 | 59 | 16 | 27 | 34 | M12 | 0.50 |
5141-801-018-080 | PSC40xSFC18-80-CP | 104 | 80 | 52 | 59 | 18 | 33 | 42 | M12 | 0.70 |
5141-801-020-085 | PSC40xSFC20-85-CP | 109 | 85 | 52 | 64 | 20 | 33 | 42 | M16 | 0.70 |
5142-801-006-075 | PSC50xSFC6-75-CP | 105 | 75 | 36 | 53 | 6 | 20 | 26 | M5 | 0.60 |
5142-801-008-075 | PSC50xSFC8-75-CP | 105 | 75 | 36 | 53 | 8 | 20 | 26 | M6 | 0.60 |
5142-801-010-075 | PSC50xSFC10-75-CP | 105 | 75 | 42 | 54 | 10 | 24 | 32 | M8 | 0.70 |
5142-801-012-075 | PSC50xSFC12-75-CP | 105 | 75 | 47 | 59 | 12 | 24 | 32 | M10 | 0.60 |
5142-801-014-080 | PSC50xSFC14-80-CP | 110 | 80 | 47 | 59 | 14 | 27 | 34 | M10 | 0.70 |
5142-801-016-080 | PSC50xSFC16-80-CP | 110 | 80 | 52 | 59 | 16 | 27 | 34 | M12 | 0.70 |
5142-801-018-080 | PSC50xSFC18-80-CP | 110 | 80 | 52 | 59 | 18 | 33 | 42 | M12 | 0.80 |
5142-801-020-085 | PSC50xSFC20-85-CP | 115 | 85 | 52 | 64 | 20 | 33 | 42 | M16 | 0.90 |
5142-801-025-090 | PSC50xSFC25-90-CP | 120 | 90 | 58 | 68 | 25 | 44 | 53 | M20 | 1.20 |
5143-801-006-080 | PSC63xSFC6-80-CP | 118 | 80 | 36 | 53 | 6 | 20 | 26 | M5 | 1.00 |
5143-801-008-080 | PSC63xSFC8-80-CP | 118 | 80 | 36 | 53 | 8 | 20 | 26 | M6 | 0.90 |
5143-801-010-080 | PSC63xSFC10-80-CP | 118 | 80 | 52 | 53 | 10 | 24 | 32 | M8 | 1.00 |
5143-801-012-080 | PSC63xSFC12-80-CP | 118 | 80 | 52 | 56 | 12 | 24 | 32 | M10 | 1.00 |
5143-801-014-085 | PSC63xSFC14-85-CP | 123 | 85 | 47 | 58 | 14 | 27 | 34 | M10 | 1.10 |
5143-801-016-085 | PSC63xSFC16-85-CP | 123 | 85 | 52 | 58 | 16 | 27 | 34 | M12 | 1.10 |
5143-801-018-085 | PSC63xSFC18-85-CP | 123 | 85 | 52 | 58 | 18 | 33 | 42 | M12 | 1.30 |
5143-801-020-085 | PSC63xSFC20-85-CP | 123 | 85 | 52 | 58 | 20 | 33 | 42 | M16 | 1.20 |
5143-801-025-090 | PSC63xSFC25-90-CP | 128 | 90 | 58 | 66 | 25 | 44 | 53 | M20 | 1.50 |
5143-801-032-095 | PSC63xSFC32-95-CP | 133 | 95 | 58 | 71 | 32 | 44 | 53 | M20 | 1.50 |
5144-801-010-090 | PSC80xSFC10-90-CP | 138 | 90 | 42 | 55 | 10 | 24 | 32 | M8 | 1.96 |
5144-801-012-090 | PSC80xSFC12-90-CP | 138 | 90 | 47 | 55 | 12 | 24 | 32 | M10 | 1.94 |
5144-801-016-095 | PSC80xSFC16-95-CP | 143 | 95 | 50 | 60 | 16 | 27 | 34 | M12 | 1.99 |
5144-801-020-095 | PSC80xSFC20-95-CP | 143 | 95 | 52 | 60 | 20 | 33 | 42 | M16 | 2.10 |
5144-801-025-100 | PSC80xSFC25-100-CP | 148 | 100 | 58 | 65 | 25 | 44 | 53 | M20 | 2.37 |
series:
The Assembly and Coolant Application of HSK63A Shrink Fit Chuck [coolant type]
SFC-CP Shrink Fit Chuck with CP Coolant Hole
