SKS Collet Chuck
Product Name : SKS Collet Chuck
Product Description
proimages/taper_icon/BT_SBT-icon..jpg proimages/taper_icon/CAT_SCAT-icon..jpg proimages/taper_icon/DAT_SDAT-icon..jpg proimages/taper_icon/HSK-icon..jpg proimages/taper_icon/PSC-icon..jpg proimages/taper_icon/ISO-icon..jpg

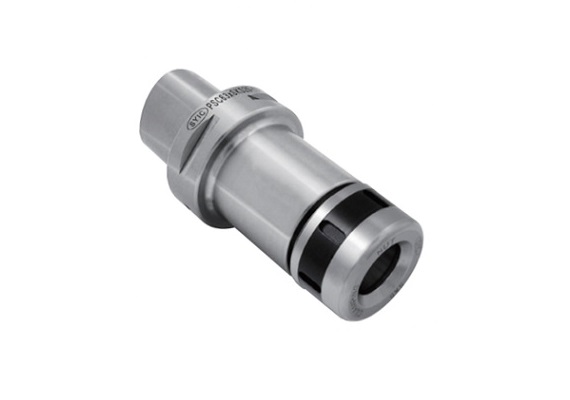

High precision stability!!

  • T.I.R. is within 5μm at a 4D distance.
  • Using with 4° taper angle SKS collets achieve better clamping force and accuracy stability than 8° ER collets.
  • Smaller OD nuts reduce interference. Standard revolution is G2.5 25,000RPM, suitable for high speed machining.
  • Besides standard SKS clamping nut, SKS nonwind resistance nut and SKS sealed nut are available for customers to choose from (must purchase additionally).
proimages/picture_of_product_feature/SKS_feature_picture.jpg
series:

BT/SKS COLLET CHUCK

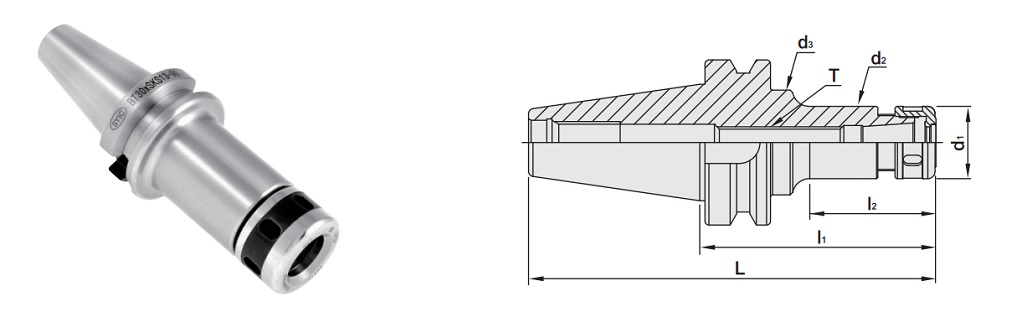

proimages/Products/Tool_holders/Collet_chuck/SKS/BT-SKS_figure.jpg

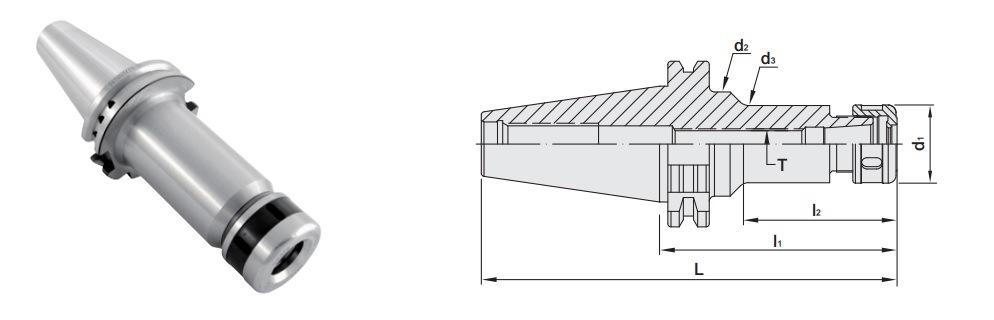

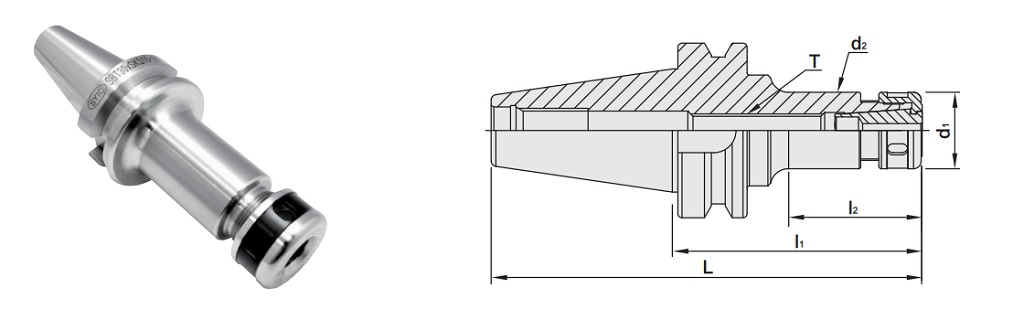

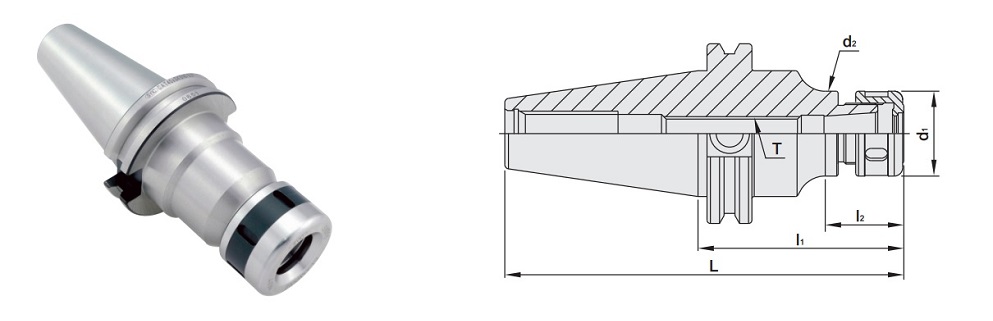

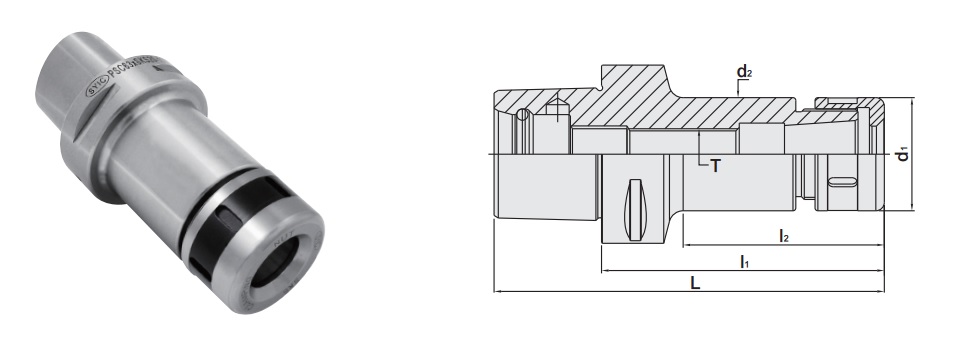

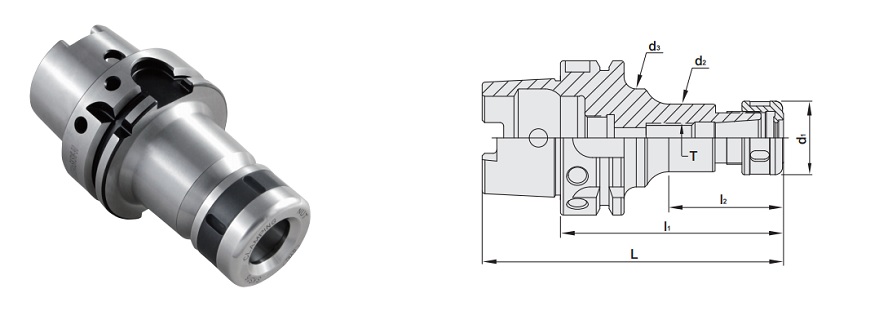

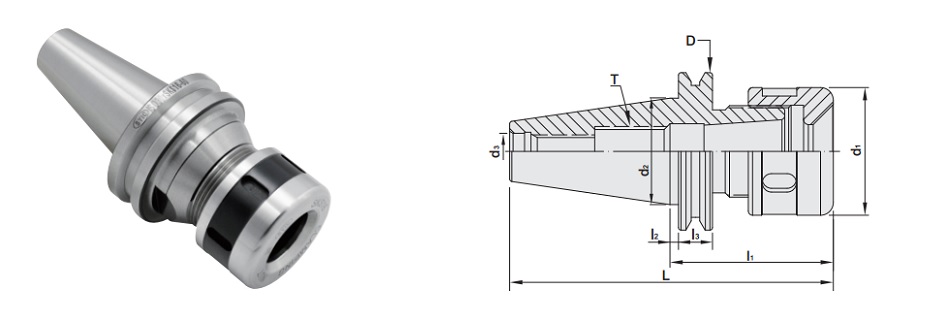

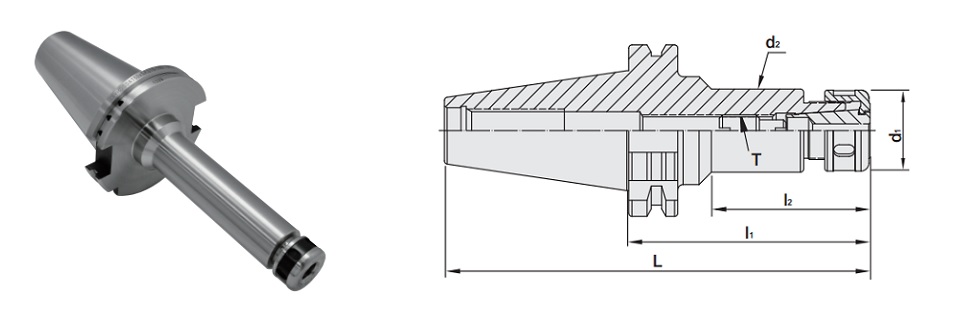

MODEL NO.TYPELl1l2d1d2d3TSIZE
RANGE
WEIGHT
(KGS)
18330 BT30 x SKS6 - 45 93.4 45 22 18 18 - M8 x 1.25P 3 ~ 6 0.80
18331 BT30 x SKS6 - 60 108.4 60 33 18 18 - M8 x 1.25P 3 ~ 6 0.90
18332 BT30 x SKS10 - 45 93.4 45 22 30 27.6 - M12 x 1.75P 3 ~ 10 0.80
18332-60 BT30 x SKS10 - 60 108.4 60 33 30 27.6 - M12 x 1.75P 3 ~ 10 0.90
18332-90 BT30 x SKS10 - 90 138.4 90 63 30 27.6 - M12 x 1.75P 3 ~ 10 1.00
18334 BT30 x SKS13 - 60 108.4 60 35 35 33 - M12 x 1.75P 3 ~ 13 0.70
18334-90 BT30 x SKS13 - 90 138.4 90 65 35 33 - M12 x 1.75P 3 ~ 13 1.10
18334-120 BT30 x SKS13 - 120 168.4 120 95 35 33 - M12 x 1.75P 3 ~ 13 1.20
18335 BT30 x SKS16 - 60 108.4 60 37 40 40 - M18 x 1.5P 3 ~ 16 0.70
18335-90 BT30 x SKS16 - 90 138.4 90 67 40 40 - M18 x 1.5P 3 ~ 16 1.20
18336 BT30 x SKS20 - 60 108.4 60 33 48.5 48.5 - M12 x 1.75P 3 ~ 20 0.70
18336-90 BT30 x SKS20 - 90 138.4 90 60 48.5 48.5 - M12 x 1.75P 3 ~ 20 1.20
18338 BT40 x SKS6 - 90 155.4 90 44 18 18 32 M8 x 1.25P 3 ~ 6 1.20
18339 BT40 x SKS6 - 120 185.4 120 74 18 18 32 M8 x 1.25P 3 ~ 6 1.40
18340 BT40 x SKS10 - 90 155.4 90 45 30 27.6 40 M12 x 1.75P 3 ~ 10 1.50
18342 BT40 x SKS10 - 120 185.4 120 74 30 27 40 M12 x 1.75P 3 ~ 10 1.60
18342-130 BT40 x SKS10 - 130 195.4 130 84 30 27 40 M12 x 1.75P 3 ~ 10 1.70
18342-150 BT40 x SKS10 - 150 215.4 150 104 30 27 40 M12 x 1.75P 3 ~ 10 1.90
18342-200 BT40 x SKS10 - 200 265.4 200 162 30 27 40 M12 x 1.75P 3 ~ 10 2.20
18343 BT40 x SKS13 - 60 125.4 60 30 35 33 - M12 x 1.75P 3 ~ 13 1.20
18343-90 BT40 x SKS13 - 90 155.4 90 60 35 33 - M12 x 1.75P 3 ~ 13 1.40
18343-120 BT40 x SKS13 - 120 185.4 120 90 35 33 - M12 x 1.75P 3 ~ 13 1.60
18343-150 BT40 x SKS13 - 150 215.4 150 120 35 33 - M12 x 1.75P 3 ~ 13 1.70
18343-200 BT40 x SKS13 - 200 265.4 200 170 35 33 - M12 x 1.75P 3 ~ 13 2.00
18344 BT40 x SKS16 - 90 155.4 90 58 40 40 - M18 x 1.5P 3 ~ 16 1.60
18346 BT40 x SKS16 - 120 185.4 120 88 40 40 - M18 x 1.5P 3 ~ 16 1.70
18346-150 BT40 x SKS16 - 150 215.4 150 118 40 40 - M18 x 1.5P 3 ~ 16 1.90
18347 BT40 x SKS16 - 200 265.4 200 168 40 40 - M18 x 1.5P 3 ~ 16 2.10
18348 BT40 x SKS20 - 60 125.4 60 32 48.5 48.5 - M22 x 1.5P 3 ~ 20 1.30
18348-90 BT40 x SKS20 - 90 155.4 90 60 48.5 48.5 - M22 x 1.5P 3 ~ 20 1.60
18348-120 BT40 x SKS20 - 120 185.4 120 88 48.5 48.5 - M22 x 1.5P 3 ~ 20 2.00
18348-150 BT40 x SKS20 - 150 215.4 150 118 48.5 48.5 - M22 x 1.5P 3 ~ 20 2.10
18348-200 BT40 x SKS20 - 200 265.4 200 168 48.5 48.5 - M22 x 1.5P 3 ~ 20 2.20
18352 BT40 x SKS25 - 90 155.4 90 61 55 55 - M28 x 2.0P 3 ~ 25.4 1.70
18354 BT40 x SKS25 - 120 185.4 120 91 55 55 - M28 x 2.0P 3 ~ 25.4 1.80
18360 BT50 x SKS6 - 90 191.8 90 42 18 18 - M8 x 1.25P 3 ~ 6 4.0
18362 BT50 x SKS6 - 120 221.8 120 60 18 18 32 M8 x 1.25P 3 ~ 6 4.2
18370 BT50 x SKS10 - 105 206.8 105 57 30 27.6 - M12 x 1.75P 3 ~ 10 4.5
18372 BT50 x SKS10 - 150 251.8 150 94 30 27 40 M12 x 1.75P 3 ~ 10 4.6
18374 BT50 x SKS10 - 165 266.8 165 108 30 27 40 M12 x 1.75P 3 ~ 10 4.3
18374-200 BT50 x SKS10 - 200 301.8 200 145 30 27 36 M12 x 1.75P 3 ~ 10 5.2
18374-250 BT50 x SKS10 - 250 351.8 250 193 30 27 40 M12 x 1.75P 3 ~ 10 5.6
18375 BT50 x SKS13 - 105 206.8 105 62 35 33 - M12 x 1.75P 3 ~ 13 4.5
18375-135 BT50 x SKS13 - 135 236.8 135 92 35 33 - M12 x 1.75P 3 ~ 13 4.7
18375-150 BT50 x SKS13 - 150 251.8 150 77 35 33 45 M12 x 1.75P 3 ~ 13 4.8
18375-165 BT50 x SKS13 - 165 266.8 165 92 35 33 45 M12 x 1.75P 3 ~ 13 4.9
18375-200 BT50 x SKS13 - 200 301.8 200 157 35 33 45 M12 x 1.75P 3 ~ 13 5.2
18375-250 BT50 x SKS13 - 250 351.8 250 207 35 33 45 M12 x 1.75P 3 ~ 13 5.7
18376 BT50 x SKS16 - 105 206.8 105 57 40 40 - M18 x 1.5P 3 ~ 16 4.5
18378 BT50 x SKS16 - 150 251.8 150 93 40 40 52 M18 x 1.5P 3 ~ 16 4.7
18380 BT50 x SKS16 - 165 266.8 165 108 40 40 52 M18 x 1.5P 3 ~ 16 4.5
18380-200 BT50 x SKS16 - 200 301.8 200 157 40 40 52 M18 x 1.5P 3 ~ 16 5.5
18380-250 BT50 x SKS16 - 250 351.8 250 207 40 40 52 M18 x 1.5P 3 ~ 16 6.0
18382 BT50 x SKS20 - 105 206.8 105 62 48.5 48.5 - M22 x 1.5P 3 ~ 20 4.3
18382-135 BT50 x SKS20 - 135 236.8 135 92 48.5 48.5 - M22 x 1.5P 3 ~ 20 4.6
18382-150 BT50 x SKS20 - 150 251.8 150 107 48.5 48.5 - M22 x 1.5P 3 ~ 20 4.7
18384 BT50 x SKS20 - 165 266.8 165 122 48.5 48.5 - M22 x 1.5P 3 ~ 20 5.0
18384-200 BT50 x SKS20 - 200 301.8 200 157 48.5 48.5 - M22 x 1.5P 3 ~ 20 5.4
18384-250 BT50 x SKS20 - 250 351.8 250 207 48.5 48.5 - M22 x 1.5P 3 ~ 20 6.1
18386 BT50 x SKS25 - 105 206.8 105 62 55 55 - M28 x 2.0P 3 ~ 25.4 4.5
18388 BT50 x SKS25 - 150 251.8 150 107 55 55 - M28 x 2.0P 3 ~ 25.4 4.8
18390 BT50 x SKS25 - 200 301.8 200 157 55 55 - M28 x 2.0P 3 ~ 25.4 6.0
18392 BT50 x SKS25 - 250 351.8 250 207 55 55 - M28 x 2.0P 3 ~ 25.4 6.7
