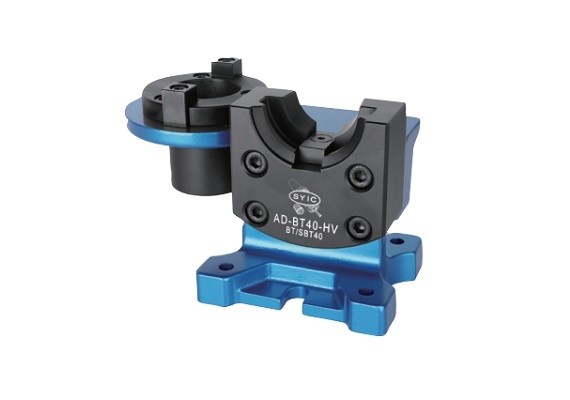

Product Name : Tool Holder Locking Device
Two-Way Type- 7/24 Taper Series

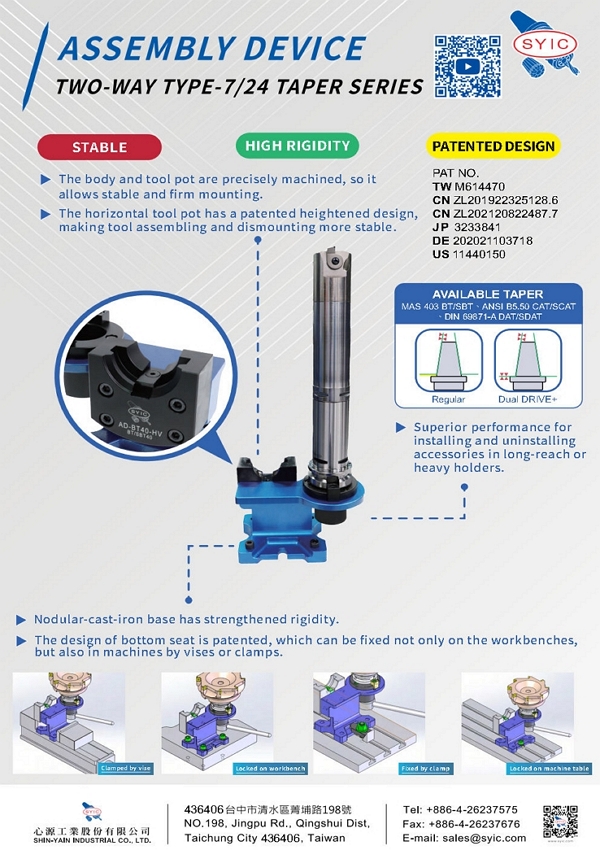

Product Description
The body and tool pot are precisely machined, so it allows stable and firm mounting.
The horizontal tool pot has a patented heightened design, making tool assembling and dismounting more stable.
Nodular-cast-iron base has strengthened rigidity.
Superior performance for installing and uninstalling accessories in long-reach or heavy holders.

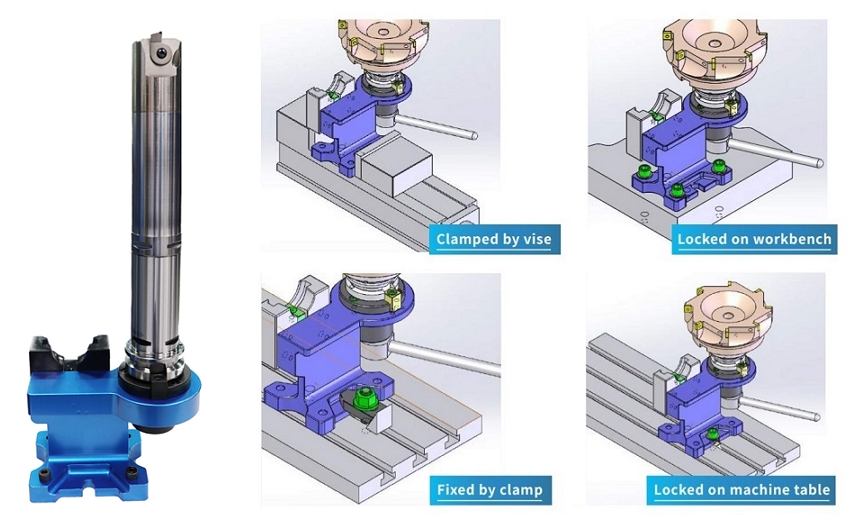

The design of bottom seat is patented, which can be fixed not only on the workbenches, but also in machines by vises or clamps.
Specification
Technical information
video
series:
7/24 Taper
Two-Way Type- 7/24 Taper Series

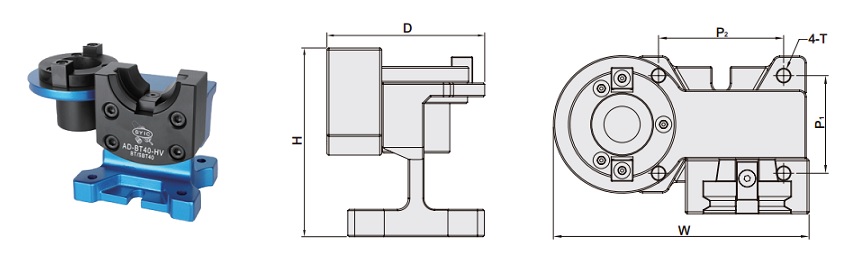

MODEL NO.
TYPE
COMPATIBLE
TOOLING
D
H
W
P
1
P
2
T
WEIGHT
(KGS)
5300-020-010
AD-BT30-HV
BT/SBT30
110
137.5
186
71
91
M8
4.36
5300-020-011
AD-BT40-HV
BT/SBT40
115
137.5
186
71
91
M8
4.38
5300-020-012
AD-BT50-HV
BT/SBT50
152.5
195.5
242
112
116
M10
10.90
5300-020-031
AD-CAT.DAT40-HV
CAT/SCAT/DAT/SDAT40
115
137.5
186
71
91
M8
4.39
5300-020-032
AD-CAT.DAT50-HV
CAT/SCAT/DAT/SDAT50
152.5
195.5
242
112
116
M10
10.96
